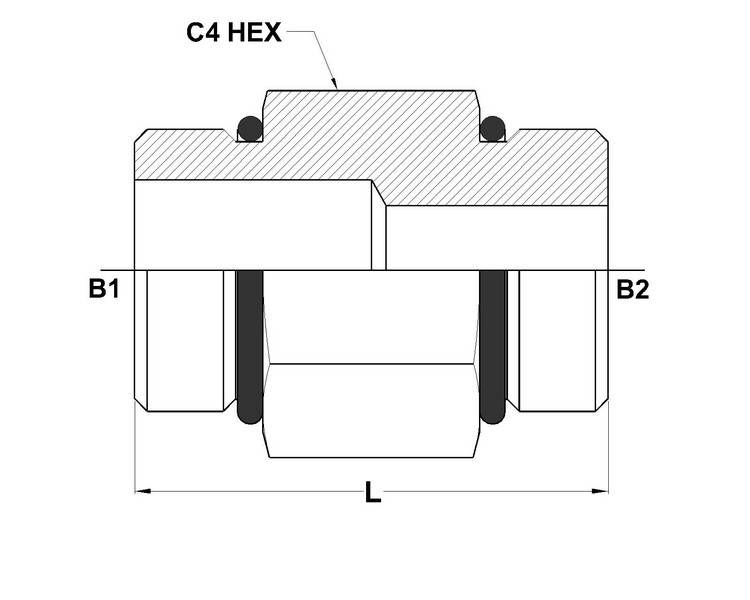

| PART NO. SIZE | TUBE O.D. | B1 SAE ORB | B2 SAE ORB | B1 DRILL | B2 DRILL | L LGTH | C4 HEX |
|---|---|---|---|---|---|---|---|
| 6464-L-06-06-O | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.49 | 0.688 |
| 6464-L-08-08-O | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.76 | 0.875 |
| 6464-L-10-08-O | 5/8 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.82 | 1.000 |
| 6464-L-10-10-O | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.80 | 1.000 |
| 6464-L-16-12-O | 1 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 2.19 | 1.500 |
