MFS-MJ Straight

O-Ring Face Seal Fittings
FS6403 Series

MFS-MJ Straight


FS6403 Series

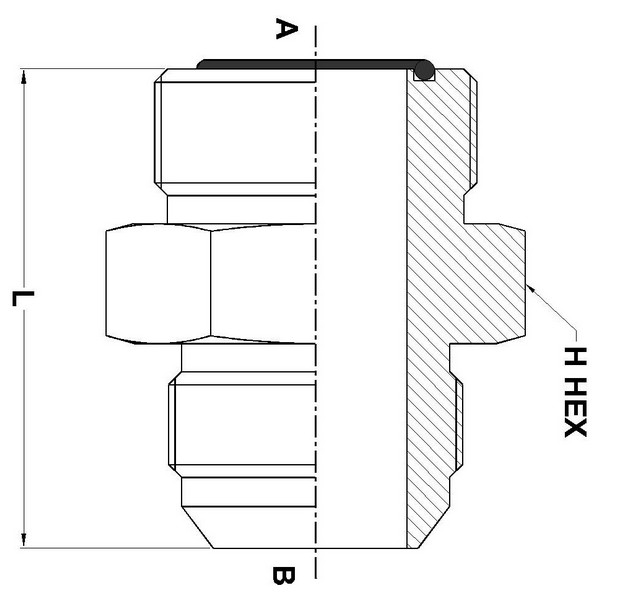

PART NO.SIZE TUBE O.D. A THREAD B THREAD A DRILL B DRILL L LGTH H HEX
FS6403-04-04-O 1/4 9/16-18 7/16-20 0.172 0.172 1.25 0.625
FS6403-06-06-O 3/8 11/16-16 9/16-18 0.264 0.297 1.34 0.750
FS6403-08-08-O 1/2 13/16-16 3/4-16 0.378 0.391 1.55 0.875
FS6403-10-10-O 5/8 1-14 7/8-14 0.484 0.484 1.83 1.062
FS6403-12-12-O 3/4 1-3/16-12 1-1/16-12 0.609 0.609 2.05 1.250
FS6403-16-16-O 1 1-7/16-12 1-5/16-12 0.811 0.844 2.16 1.500
