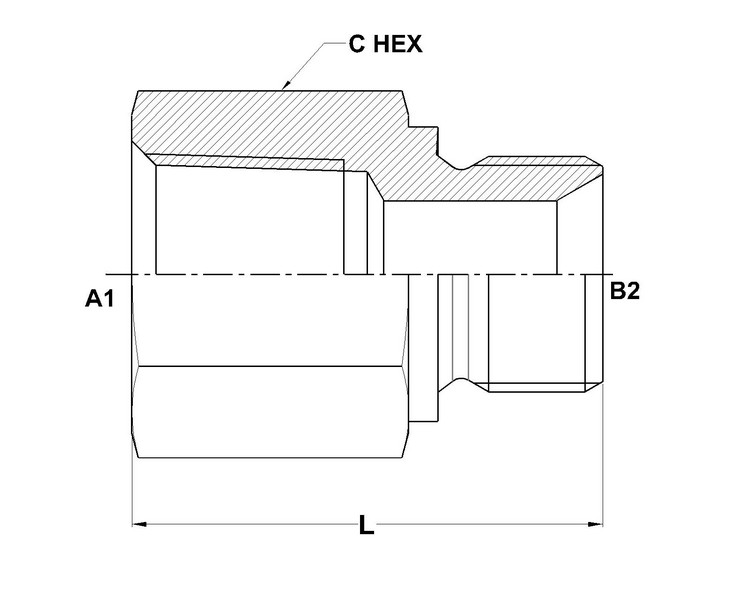

7045 Series
| PART NO.SIZE |
A1 NPTF |
B2 MM |
B2 DRILL |
L LGTH |
C1 HEX |
| 7045-02-06 |
1/8-27 |
M6 x 1 |
|
|
15.0 |
| 7045-02-08 |
1/8-27 |
M8 x 1 |
3.0 |
24.2 |
15.0 |
| 7045-02-10 |
1/8-27 |
M10 x 1 |
4.5 |
13.5 |
16.0 |
| 7045-02-12 |
1/8-27 |
M12 x 1.5 |
6.0 |
19.0 |
19.0 |
| 7045-02-14 |
1/8-27 |
M14 x 1.5 |
7.5 |
19.0 |
19.0 |
| 7045-02-16 |
1/8-27 |
M16 x 1.5 |
9.0 |
20.5 |
22.0 |
| 7045-02-18 |
1/8-27 |
M18 x 1.5 |
11.0 |
20.5 |
24.0 |
| 7045-02-20 |
1/8-27 |
M20 x 1.5 |
12.5 |
21.0 |
27.0 |
| 7045-04-10 |
1/4-18 |
M10 x 1 |
4.5 |
28.6 |
19.0 |
| 7045-04-12 |
1/4-18 |
M12 x 1.5 |
6.0 |
32.6 |
19.0 |
| 7045-04-14 |
1/4-18 |
M14 x 1.5 |
7.5 |
32.6 |
19.0 |
| 7045-04-16 |
3/8-18 |
M16 x 1.5 |
9.0 |
33.9 |
22.0 |
| 7045-06-16 |
3/8-18 |
M16 x 1.5 |
9.0 |
33.9 |
22.0 |
| 7045-06-18 |
3/8-18 |
M18 x 1.5 |
11.0 |
20.5 |
24.0 |
| 7045-06-20 |
3/8-18 |
M20 x 1.5 |
12.5 |
21.0 |
27.0 |
| 7045-06-22 |
3/8-18 |
M22 x 1.5 |
14.0 |
24.0 |
27.0 |
| 7045-08-16 |
1/2-14 |
M16 x 1.5 |
9.0 |
40.0 |
28.0 |
| 7045-08-18 |
1/2-14 |
M18 x 1.5 |
11.0 |
40.0 |
28.0 |
| 7045-08-22 |
1/2-14 |
M22 x 1.5 |
14.0 |
42.0 |
28.0 |
| 7045-08-26 |
1/2-14 |
M26 x 1.5 |
18.0 |
26.0 |
32.0 |
| 7045-12-24 |
3/4-14 |
M24 x 1.5 |
15.5 |
45.5 |
35.0 |
| 7045-12-26 |
3/4-14 |
M26 x 1.5 |
18.0 |
45.5 |
35.0 |
| 7045-12-27 |
3/4-14 |
M27 x 2 |
18.0 |
45.5 |
35.0 |
| 7045-12-30 |
3/4-14 |
M30 x 2 |
21.0 |
30.0 |
36.0 |
| 7045-16-33 |
1-11-1/2 |
M33 x 2 |
23.0 |
53.8 |
41.0 |
| 7045-16-42 |
1-11-1/2 |
M42 x 2 |
30.0 |
32.0 |
50.0 |
