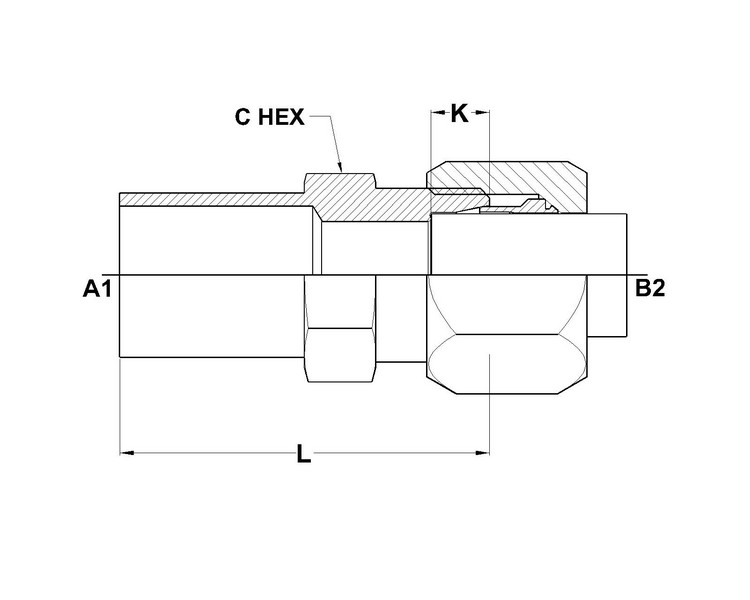

C2406 Series SAE# 080123
| PART NO. SIZE |
A1 TUBE O.D. |
A1 TUBE |
B2 TUBE |
B2 THREAD |
A1 DRILL |
B2 DRILL |
L LGTH |
K DEPTH |
C HEX |
| C2406-06-04 |
3/8 |
0.375 |
1/4 |
7/16-20 |
0.250 |
0.203 |
1.61 |
0.234 |
0.500 |
| C2406-08-04 |
1/2 |
0.500 |
1/4 |
7/16-20 |
0.375 |
0.203 |
1.73 |
0.234 |
0.562 |
| C2406-08-06 |
1/2 |
0.500 |
3/8 |
9/16-18 |
0.375 |
0.281 |
1.77 |
0.250 |
0.625 |
| C2406-10-08 |
5/8 |
0.625 |
1/2 |
3/4-16 |
0.500 |
0.422 |
1.96 |
0.305 |
0.812 |
| C2406-12-06 |
3/4 |
0.750 |
3/8 |
9/16-18 |
0.625 |
0.281 |
1.93 |
0.250 |
0.812 |
| C2406-12-08 |
3/4 |
0.750 |
1/2 |
3/4-16 |
0.625 |
0.422 |
2.03 |
0.305 |
0.812 |
| C2406-16-08 |
1 |
1.000 |
1/2 |
3/4-16 |
0.844 |
0.422 |
2.05 |
0.305 |
1.062 |
| C2406-16-12 |
1 |
1.000 |
3/4 |
1-1/16-12 |
0.844 |
0.656 |
2.24 |
0.350 |
1.125 |
| C2406-20-16 |
1-1/4 |
1.250 |
1 |
1-5/16-12 |
1.031 |
0.875 |
2.28 |
0.415 |
1.375 |
