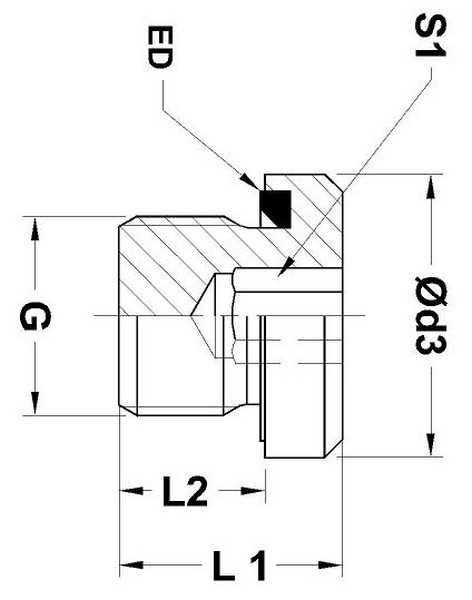

| Part No. | G | d3 | L1 | L2 | S1 |
|---|---|---|---|---|---|
| SHP 1/8 ED | 1/8 | 14 | 12 | 8 | 5 |
| SHP 1/4 ED | 1/4 | 18.9 | 17 | 12 | 6 |
| SHP 3/8 ED | 3/8 | 22 | 17 | 12 | 8 |
| SHP 1/2 ED | 1/2 | 26.9 | 19 | 14 | 10 |
| SHP 3/4 ED | 3/4 | 32 | 21 | 16 | 12 |
| SHP 1 ED | 1 | 39.9 | 22.5 | 16 | 17 |
| SHP 11/4 ED | 11/4 | 49.9 | 22.5 | 16 | 22 |
| SHP 11/2 ED | 11/2 | 55 | 22.5 | 16 | 24 |
| SHP 2 ED | 2 | 70 | 25 | 20 | 24 |
| Dimensions given approx. fig. with tightened nut Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, for FPM (Viton - On request) -25° to +120° C. |
