SBT - SWIVEL BRANCH TEE

Metric Bite Type Fittings

SBT

SBT - SWIVEL BRANCH TEE

Enquiry

Download PDF

SBT

Show entries

Search:

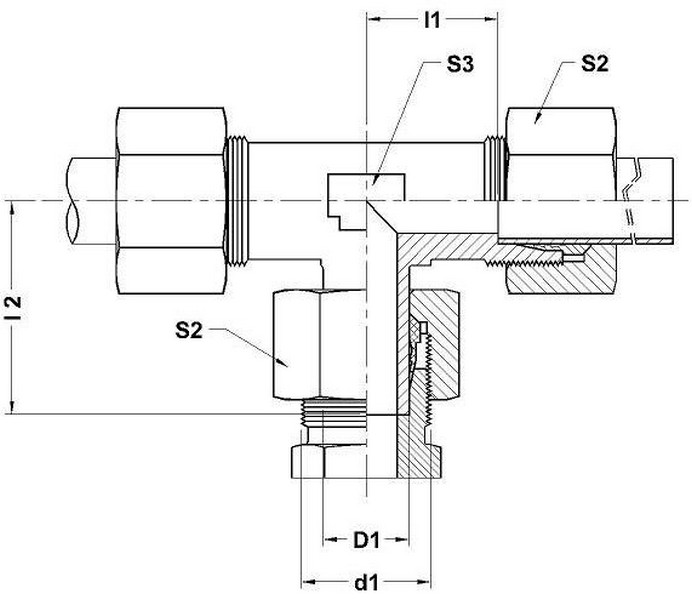

Part No.	Series	Tube OD D1	d1	l1	l2	S2	S3
SBT 06-L	Light-250 Bar	6	M12 X 15	12	26	14	12
SBT 06-S	Heavy-630 Bar	6	M14 X 1.5	16	27	17	12
SBT 08-L	Light-250 Bar	8	M14 X 1.5	14	27.5	17	12
SBT 08-S	Heavy-630 Bar	8	M16 X 1.5	17	29	19	14
SBT 10-L	Light-250 Bar	10	M16 X 1.5	15	29	19	14
SBT 10-S	Heavy-630 Bar	10	M18 X 1.5	17.5	32	22	17
SBT 12-L	Light-250 Bar	12	M18 X 1.5	17	30.5	22	17
SBT 12-S	Heavy-630 Bar	12	M20 X 1.5	21.5	33	24	17
SBT 14-S	Heavy-630 Bar	14	M22 X 1.5	22	36	27	19
SBT 15-L	Light-250 Bar	15	M22 X 1.5	21	33.5	27	19

Showing 1 to 10 of 20 entries

Dimensions given approx. fig. with tightened nut
