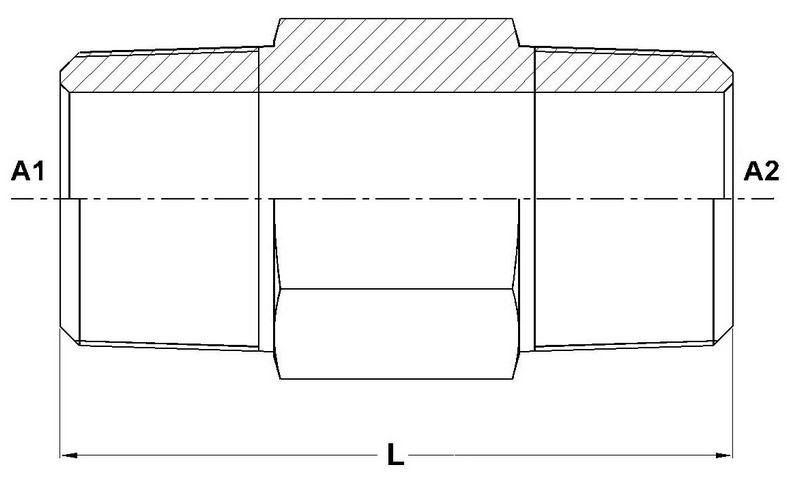

| PART NO.SIZE | PIPE O.D. | A1 NPTF | A2 NPTF | A1 DRILL | A2 DRILL | L LGTH |
|---|---|---|---|---|---|---|
| 5404-N-02X0.750 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 0.750 |
| 5404-N-02X1.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 1.000 |
| 5404-N-02X1.500 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 1.500 |
| 5404-N-02X2.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 2.000 |
| 5404-N-02X2.500 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 2.500 |
| 5404-N-02X3.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 3.000 |
| 5404-N-02X3.500 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 3.500 |
| 5404-N-02X4.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 4.000 |
| 5404-N-02X4.500 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 4.500 |
| 5404-N-02X5.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 5.000 |
| 5404-N-02X6.000 | 1/8 | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 6.000 |
| 5404-N-04X0.875 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 0.875 |
| 5404-N-04X1.500 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 1.500 |
| 5404-N-04X2.000 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 2.000 |
| 5404-N-04X2.500 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 2.500 |
| 5404-N-04X3.000 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 3.000 |
| 5404-N-04X3.500 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 3.500 |
| 5404-N-04X4.000 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 4.000 |
| 5404-N-04X4.500 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 4.500 |
| 5404-N-04X5.000 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 5.000 |
| 5404-N-04X5.500 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 5.500 |
| 5404-N-04X6.000 | 1/4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 6.000 |
| 5404-N-06X1.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 1.000 |
| 5404-N-06X1.500 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 1.500 |
| 5404-N-06X2.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 2.000 |
| 5404-N-06X2.500 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 2.500 |
| 5404-N-06X3.500 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 3.500 |
| 5404-N-06X4.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 4.000 |
| 5404-N-06X5.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 5.000 |
| 5404-N-06X5.500 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 5.500 |
| 5404-N-06X6.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 6.000 |
| 5404-N-06X7.000 | 3/8 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 7.000 |
| 5404-N-08X1.125 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.125 |
| 5404-N-08X1.250 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.250 |
| 5404-N-08X1.375 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.375 |
| 5404-N-08X1.500 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.500 |
| 5404-N-08X1.750 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.750 |
| 5404-N-08X2.000 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 2.000 |
| 5404-N-08X2.250 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 2.250 |
| 5404-N-08X2.500 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 2.500 |
| 5404-N-08X3.000 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 3.000 |
| 5404-N-08X3.500 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 3.500 |
| 5404-N-08X4.000 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 4.000 |
| 5404-N-08X4.500 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 4.500 |
| 5404-N-08X5.000 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 5.000 |
| 5404-N-08X6.000 | 1/2 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 6.000 |
| 5404-N-12X1.375 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 1.375 |
| 5404-N-12X1.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 1.500 |
| 5404-N-12X1.625 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 1.625 |
| 5404-N-12X2.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 2.000 |
| 5404-N-12X2.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 2.500 |
| 5404-N-12X3.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 3.000 |
| 5404-N-12X3.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 3.500 |
| 5404-N-12X4.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 4.000 |
| 5404-N-12X4.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 4.500 |
| 5404-N-12X5.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 5.000 |
| 5404-N-12X5.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 5.500 |
| 5404-N-12X6.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 6.000 |
| 5404-N-12X6.500 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 6.500 |
| 5404-N-12X8.000 | 3/4 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 8.000 |
| 5404-N-16X1.500 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 1.500 |
| 5404-N-16X2.000 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 2.000 |
| 5404-N-16X2.500 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 2.500 |
| 5404-N-16X3.000 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 3.000 |
| 5404-N-16X3.250 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 3.250 |
| 5404-N-16X3.500 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 3.500 |
| 5404-N-16X3.750 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 3.750 |
| 5404-N-16X4.000 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 4.000 |
| 5404-N-16X4.500 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 4.500 |
| 5404-N-16X5.000 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 5.000 |
| 5404-N-16X5.500 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 5.500 |
| 5404-N-16X6.000 | 1 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 6.000 |
| 5404-N-20X1.500 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 1.500 |
| 5404-N-20X1.625 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 1.625 |
| 5404-N-20X2.000 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 2.000 |
| 5404-N-20X2.500 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 2.500 |
| 5404-N-20X3.000 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 3.000 |
| 5404-N-20X3.500 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 3.500 |
| 5404-N-20X4.000 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 4.000 |
| 5404-N-20X6.000 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 6.000 |
| 5404-N-20X8.000 | 1-1/4 | 1-1/4-11 1/2 | 1-1/4-11 1/2 | 1.250 | 1.250 | 8.000 |
| 5404-N-24X1.000 | 1-1/2 | 1-1/2-11 1/2 | 1-1/2-11 1/2 | 1.500 | 1.500 | 1.000 |
| 5404-N-24X1.750 | 1-1/2 | 1-1/2-11 1/2 | 1-1/2-11 1/2 | 1.500 | 1.500 | 1.750 |
| 5404-N-24X2.500 | 1-1/2 | 1-1/2-11 1/2 | 1-1/2-11 1/2 | 1.500 | 1.500 | 2.500 |
| 5404-N-24X4.000 | 1-1/2 | 1-1/2-11 1/2 | 1-1/2-11 1/2 | 1.500 | 1.500 | 4.000 |
| 5404-N-24X6.000 | 1-1/2 | 1-1/2-11 1/2 | 1-1/2-11 1/2 | 1.500 | 1.500 | 6.000 |
