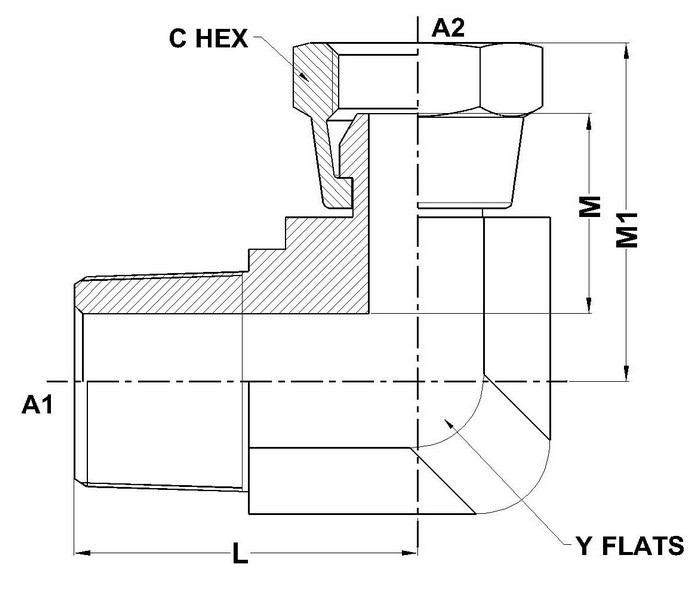

1501 Series SAE# 140230
| PART NO. SIZE |
A1 NPTF |
A2 NPSM |
A1 DRILL |
A2 DRILL |
L LGTH |
M LGTH |
M1 LGTH |
C HEX |
Y FLATS |
| 1501-02-02-FG |
1/8-27 |
1/8-27 |
0.188 |
0.15 |
0.72 |
0.70 |
0.84 |
0.562 |
0.438 |
| 1501-02-04-FG |
1/8-27 |
1/4-18 |
0.188 |
0.22 |
0.90 |
0.88 |
1.07 |
0.688 |
0.562 |
| 1501-04-02-FG |
1/4-18 |
1/8-27 |
0.281 |
0.15 |
1.09 |
0.77 |
0.91 |
0.562 |
0.562 |
| 1501-04-04-FG |
1/4-18 |
1/4-18 |
0.281 |
0.22 |
1.09 |
0.88 |
1.07 |
0.688 |
0.562 |
| 1501-04-06-FG |
1/4-18 |
3/8-18 |
0.281 |
0.34 |
1.22 |
0.99 |
1.20 |
0.875 |
0.750 |
| 1501-04-08-FG |
1/4-18 |
1/2-14 |
0.281 |
0.46 |
1.28 |
1.11 |
1.39 |
1.000 |
0.875 |
| 1501-06-04-FG |
3/8-18 |
1/4-18 |
0.406 |
0.22 |
1.22 |
0.99 |
1.18 |
0.688 |
0.750 |
| 1501-06-06-FG |
3/8-18 |
3/8-18 |
0.406 |
0.34 |
1.22 |
0.99 |
1.20 |
0.875 |
0.750 |
| 1501-06-08-FG |
3/8-18 |
1/2-14 |
0.406 |
0.46 |
1.28 |
1.11 |
1.39 |
1.000 |
0.875 |
| 1501-06-12-FG |
3/8-18 |
3/4-14 |
0.406 |
0.64 |
1.40 |
1.30 |
1.65 |
1.250 |
1.062 |
| 1501-08-04-FG |
1/2-14 |
1/4-18 |
0.531 |
0.22 |
1.47 |
1.02 |
1.21 |
0.688 |
0.875 |
| 1501-08-06-FG |
1/2-14 |
3/8-18 |
0.531 |
0.34 |
1.47 |
1.04 |
1.25 |
0.875 |
0.875 |
| 1501-08-08-FG |
1/2-14 |
1/2-14 |
0.531 |
0.46 |
1.47 |
1.11 |
1.39 |
1.000 |
0.875 |
| 1501-08-12-FG |
1/2-14 |
3/4-14 |
0.531 |
0.64 |
1.59 |
1.30 |
1.65 |
1.250 |
1.062 |
| 1501-12-04-FG |
3/4-14 |
1/4-18 |
0.719 |
0.22 |
1.59 |
1.24 |
1.43 |
0.688 |
1.062 |
| 1501-12-06-FG |
3/4-14 |
3/8-18 |
0.719 |
0.34 |
1.59 |
1.24 |
1.45 |
0.875 |
1.062 |
| 1501-12-08-FG |
3/4-14 |
1/2-14 |
0.719 |
0.46 |
1.59 |
1.24 |
1.52 |
1.000 |
1.062 |
| 1501-12-12-FG |
3/4-14 |
3/4-14 |
0.719 |
0.64 |
1.59 |
1.30 |
1.65 |
1.250 |
1.062 |
| 1501-12-16-FG |
3/4-14 |
1-11 1/2 |
0.719 |
0.83 |
1.78 |
1.54 |
1.89 |
1.500 |
1.312 |
| 1501-12-20-FG |
3/4-14 |
1 1/4-11 1/2 |
0.719 |
1.09 |
2.16 |
1.73 |
2.15 |
1.875 |
1.625 |
| 1501-16-08-FG |
1-11 1/2 |
1/2-14 |
0.938 |
0.46 |
1.97 |
1.43 |
1.71 |
1.000 |
1.312 |
| 1501-16-12-FG |
1-11 1/2 |
3/4-14 |
0.938 |
0.64 |
1.97 |
1.43 |
1.78 |
1.250 |
1.312 |
| 1501-16-16-FG |
1-11 1/2 |
1-11 1/2 |
0.938 |
0.83 |
1.97 |
1.54 |
1.89 |
1.500 |
1.312 |
| 1501-16-20-FG |
1-11 1/2 |
1 1/4-11 1/2 |
0.938 |
1.09 |
2.35 |
1.73 |
2.15 |
1.875 |
1.625 |
| 1501-20-12-FG |
1 1/4-11 1/2 |
3/4-14 |
1.250 |
0.64 |
2.38 |
1.56 |
1.91 |
1.250 |
1.625 |
| 1501-20-16-FG |
1 1/4-11 1/2 |
1-11 1/2 |
1.250 |
0.83 |
2.38 |
1.70 |
2.05 |
1.500 |
1.625 |
| 1501-20-20-FG |
1 1/4-11 1/2 |
1 1/4-11 1/2 |
1.250 |
1.09 |
2.38 |
1.73 |
2.15 |
1.875 |
1.625 |
| 1501-20-24-FG |
1 1/4-11 1/2 |
1 1/2-11 1/2 |
1.250 |
1.32 |
2.61 |
1.89 |
2.31 |
2.125 |
1.875 |
| 1501-24-20-FG |
1 1/2-11 1/2 |
1 1/4-11 1/2 |
1.500 |
1.09 |
2.64 |
1.77 |
2.19 |
1.875 |
1.875 |
| 1501-24-24-FG |
1 1/2-11 1/2 |
1 1/2-11 1/2 |
1.500 |
1.32 |
2.64 |
1.89 |
2.31 |
2.125 |
1.875 |
| 1501-32-32-FG |
2-11 1/2 |
2-11 1/2 |
1.938 |
1.80 |
3.00 |
2.27 |
2.69 |
2.625 |
2.500 |
