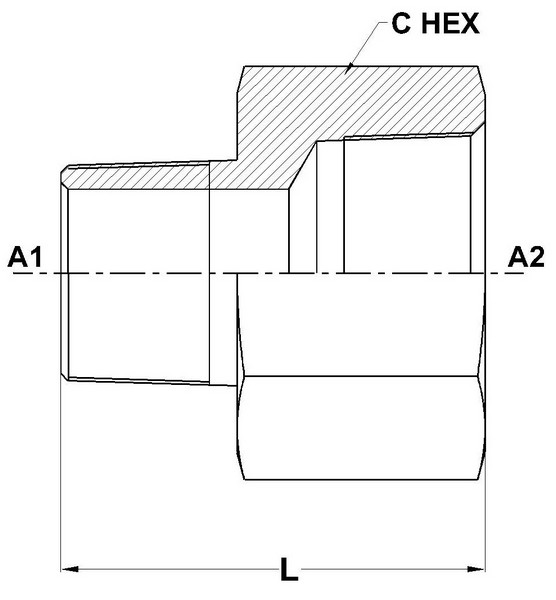

5405 Series SAE# 140139
| PART NO. SIZE |
A1 NPTF |
A2 NPTF |
A1 DRILL |
L LGTH |
C HEX |
| 5405-01-02 |
1/16-27 |
1/8-27 |
0.117 |
1.04 |
0.625 |
| 5405-02-02 |
1/8-27 |
1/8-27 |
0.188 |
1.04 |
0.625 |
| 5405-02-04 |
1/8-27 |
1/4-18 |
0.188 |
1.21 |
0.750 |
| 5405-02-06 |
1/8-27 |
3/8-18 |
0.188 |
1.25 |
0.875 |
| 5405-02-08 |
1/8-27 |
1/2-14 |
0.188 |
1.49 |
1.125 |
| 5405-04-02 |
1/4-18 |
1/8-27 |
0.281 |
1.21 |
0.625 |
| 5405-04-04 |
1/4-18 |
1/4-18 |
0.281 |
1.39 |
0.750 |
| 5405-04-06 |
1/4-18 |
3/8-18 |
0.281 |
1.44 |
0.875 |
| 5405-04-08 |
1/4-18 |
1/2-14 |
0.281 |
1.68 |
1.125 |
| 5405-04-12 |
1/4-18 |
3/4-14 |
0.281 |
1.74 |
1.375 |
| 5405-06-02 |
3/8-18 |
1/8-27 |
0.333 |
1.21 |
0.750 |
| 5405-06-04 |
3/8-18 |
1/4-18 |
0.406 |
1.41 |
0.750 |
| 5405-06-06 |
3/8-18 |
3/8-18 |
0.406 |
1.44 |
0.875 |
| 5405-06-08 |
3/8-18 |
1/2-14 |
0.406 |
1.68 |
1.125 |
| 5405-06-12 |
3/8-18 |
3/4-14 |
0.406 |
1.74 |
1.375 |
| 5405-08-04 |
1/2-14 |
1/4-18 |
0.431 |
1.60 |
0.875 |
| 5405-08-06 |
1/2-14 |
3/8-18 |
0.531 |
1.66 |
0.875 |
| 5405-08-08 |
1/2-14 |
1/2-14 |
0.531 |
1.87 |
1.125 |
| 5405-08-12 |
1/2-14 |
3/4-14 |
0.531 |
1.93 |
1.375 |
| 5405-08-16 |
1/2-14 |
1-11-1/2 |
0.531 |
2.18 |
1.625 |
| 5405-12-04 |
3/4-14 |
1/4-18 |
0.431 |
1.60 |
1.125 |
| 5405-12-06 |
3/4-14 |
3/8-18 |
0.571 |
1.66 |
1.125 |
| 5405-12-08 |
3/4-14 |
1/2-14 |
0.697 |
1.89 |
1.125 |
| 5405-12-12 |
3/4-14 |
3/4-14 |
0.719 |
1.93 |
1.375 |
| 5405-12-16 |
3/4-14 |
1-11-1/2 |
0.719 |
2.18 |
1.625 |
| 5405-12-20 |
3/4-14 |
1-1/4-11-1/2 |
0.719 |
2.27 |
2.000 |
| 5405-16-08 |
1-11-1/2 |
1/2-14 |
0.697 |
2.08 |
1.375 |
| 5405-16-12 |
1-11-1/2 |
3/4-14 |
0.907 |
2.14 |
1.375 |
| 5405-16-16 |
1-11-1/2 |
1-11-1/2 |
0.938 |
2.37 |
1.625 |
| 5405-16-20 |
1-11-1/2 |
1-1/4-11-1/2 |
0.938 |
2.46 |
2.000 |
| 5405-16-24 |
1-11-1/2 |
1-1/2-11-1/2 |
0.938 |
2.47 |
2.375 |
| 5405-20-16 |
1-1/4-11-1/2 |
1-11-1/2 |
1.142 |
2.42 |
1.750 |
| 5405-20-20 |
1-1/4-11-1/2 |
1-1/4-11-1/2 |
1.250 |
2.49 |
2.000 |
| 5405-20-24 |
1-1/4-11-1/2 |
1-1/2-11-1/2 |
1.250 |
2.50 |
2.375 |
| 5405-20-32 |
1-1/4-11-1/2 |
2-11-1/2 |
1.250 |
2.60 |
2.875 |
| 5405-24-20 |
1-1/2-11-1/2 |
1-1/4-11-1/2 |
1.486 |
2.54 |
2.000 |
| 5405-24-24 |
1-1/2-11-1/2 |
1-1/2-11-1/2 |
1.500 |
2.53 |
2.375 |
| 5405-24-32 |
1-1/2-11-1/2 |
2-11-1/2 |
1.500 |
2.63 |
2.875 |
| 5405-32-32 |
2-11-1/2 |
2-11-1/2 |
1.938 |
2.66 |
2.875 |
