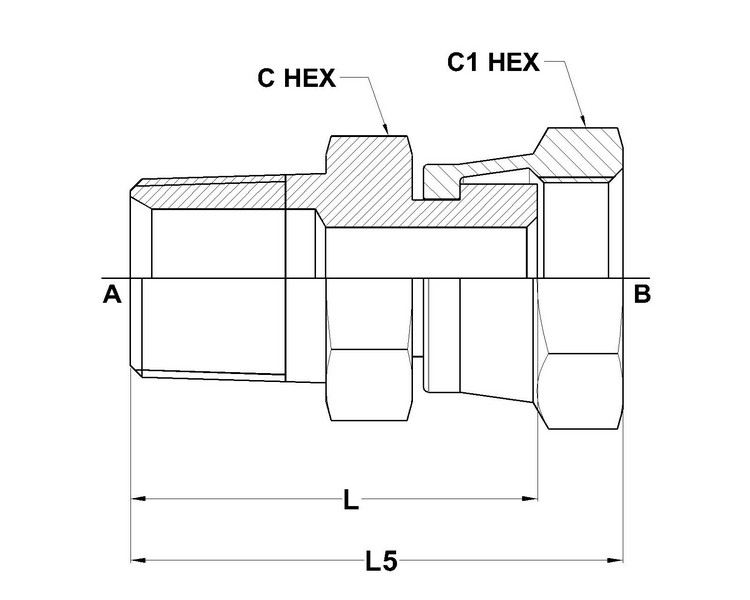

6505 Series
| PART NO. SIZE |
TUBE O.D. |
A NPTF |
B SAE 37 |
A DRILL |
B DRILL |
L LGTH |
L5 LGTH |
C1 HEX |
C HEX |
| 6505-02-04 |
1/4 |
1/8-27 |
7/16-20 |
0.188 |
0.172 |
0.99 |
1.34 |
0.563 |
0.500 |
| 6505-02-05 |
5/16 |
1/8-27 |
1/2-20 |
0.188 |
0.234 |
1.03 |
1.41 |
0.625 |
0.562 |
| 6505-04-04 |
1/4 |
1/4-18 |
7/16-20 |
0.281 |
0.172 |
1.20 |
1.55 |
0.563 |
0.562 |
| 6505-04-05 |
5/16 |
1/4-18 |
1/2-20 |
0.281 |
0.234 |
1.26 |
1.64 |
0.625 |
0.562 |
| 6505-04-06 |
3/8 |
1/4-18 |
9/16-18 |
0.281 |
0.297 |
1.30 |
1.68 |
0.688 |
0.562 |
| 6505-06-04 |
3/8 |
3/8-18 |
7/16-20 |
0.406 |
0.172 |
1.23 |
1.58 |
0.563 |
0.750 |
| 6505-06-06 |
3/8 |
3/8-18 |
9/16-18 |
0.406 |
0.297 |
1.26 |
1.64 |
0.688 |
0.750 |
| 6505-06-08 |
1/2 |
3/8-18 |
3/4-16 |
0.406 |
0.391 |
1.31 |
1.74 |
0.875 |
0.875 |
| 6505-06-10 |
5/8 |
3/8-18 |
7/8-14 |
0.406 |
0.484 |
1.36 |
1.86 |
1.000 |
0.938 |
| 6505-08-06 |
3/8 |
1/2-14 |
9/16-18 |
0.531 |
0.297 |
1.51 |
1.89 |
0.688 |
0.875 |
| 6505-08-08 |
1/2 |
1/2-14 |
3/4-16 |
0.531 |
0.391 |
1.56 |
1.99 |
0.875 |
0.875 |
| 6505-08-10 |
5/8 |
1/2-14 |
7/8-14 |
0.531 |
0.484 |
1.60 |
2.10 |
1.000 |
1.000 |
| 6505-08-12 |
3/4 |
1/2-14 |
1-1/16-12 |
0.531 |
0.609 |
1.58 |
2.15 |
1.250 |
1.000 |
| 6505-12-08 |
1/2 |
3/4-14 |
3/4-16 |
0.719 |
0.391 |
1.67 |
2.10 |
0.875 |
1.125 |
| 6505-12-10 |
5/8 |
3/4-14 |
7/8-14 |
0.719 |
0.484 |
1.70 |
2.20 |
1.000 |
1.125 |
| 6505-12-12 |
3/4 |
3/4-14 |
1-1/16-12 |
0.719 |
0.609 |
1.72 |
2.29 |
1.250 |
1.125 |
| 6505-12-14 |
7/8 |
3/4-14 |
1-3/16-12 |
0.719 |
0.719 |
1.74 |
2.32 |
1.375 |
1.250 |
| 6505-12-16 |
1 |
3/4-14 |
1-5/16-12 |
0.719 |
0.844 |
1.77 |
2.37 |
1.500 |
1.375 |
| 6505-16-16 |
1 |
1-11-1/2 |
1-5/16-12 |
0.938 |
0.844 |
1.97 |
2.57 |
1.500 |
1.375 |
| 6505-20-20 |
1-1/4 |
1-1/4-11-1/2 |
1-5/8-12 |
1.25 |
1.078 |
2.21 |
2.85 |
2.000 |
1.688 |
| 6505-24-24 |
1-1/2 |
1-1/2-11-1/2 |
1-7/8-12 |
1.5 |
1.312 |
2.27 |
2.99 |
2.250 |
2.000 |
| 6505-32-32 |
2 |
2-11-1/2 |
2-1/2-12 |
1.938 |
1.781 |
2.50 |
3.45 |
2.875 |
2.625 |
