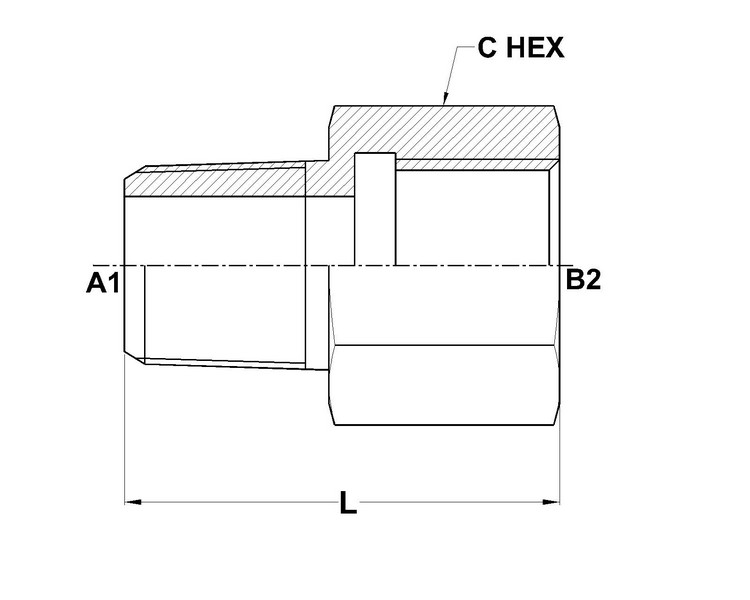

7033 Series
| PART NO.SIZE |
A1 NPTF |
B2 BSPP |
A1 DRILL |
L LGTH |
C HEX |
| 7033-02-02 |
1/8-27 |
1/8-28 |
4.8 |
26.2 |
14.0 |
| 7033-04-04 |
1/4-18 |
1/4-19 |
7.0 |
33.7 |
19.0 |
| 7033-06-04 |
3/8-18 |
1/4-19 |
10.3 |
33.7 |
19.0 |
| 7033-06-06 |
3/8-18 |
3/8-19 |
10.3 |
35.7 |
22.0 |
| 7033-08-04 |
1/2-14 |
1/4-19 |
13.5 |
27.4 |
22.0 |
| 7033-08-06 |
1/2-14 |
3/8-19 |
13.5 |
40.5 |
22.0 |
| 7033-08-08 |
1/2-14 |
1/2-14 |
13.5 |
42.5 |
27.0 |
| 7033-12-12 |
3/4-14 |
3/4-14 |
18.0 |
47.5 |
32.0 |
| 7033-16-16 |
1-11-1/2 |
1-11 |
23.8 |
55.4 |
41.0 |
| 7033-20-20 |
1-1/4-11-1/2 |
1-1/4-11 |
31.7 |
61.1 |
50.0 |
| 7033-24-24 |
1-1/2-11-1/2 |
1-1/2-11 |
38.0 |
66.9 |
55.0 |
| 7033-32-32 |
2-11-1/2 |
2-11 |
49.0 |
72.7 |
70.0 |
