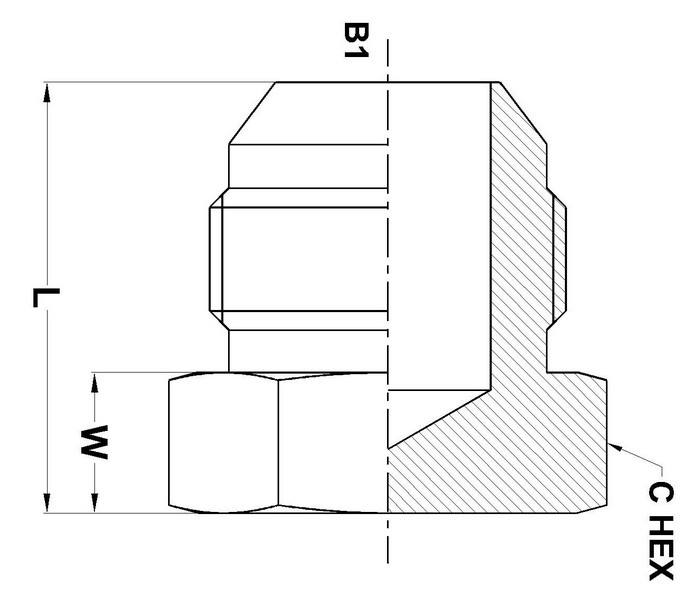

2408 Series SAE# 070109 / MS# 51518
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
L LGTH |
W WIDTH |
C HEX |
| 2408-02 |
1/8 |
5/16-24 |
0.70 |
0.22 |
0.438 |
| 2408-03 |
3/16 |
3/8-24 |
0.73 |
0.22 |
0.438 |
| 2408-04 |
1/4 |
7/16-20 |
0.80 |
0.22 |
0.500 |
| 2408-05 |
5/16 |
1/2-20 |
0.80 |
0.22 |
0.562 |
| 2408-06 |
3/8 |
9/16-18 |
0.84 |
0.25 |
0.625 |
| 2408-08 |
1/2 |
3/4-16 |
0.94 |
0.25 |
0.812 |
| 2408-10 |
5/8 |
7/8-14 |
1.10 |
0.31 |
0.937 |
| 2408-12 |
3/4 |
1-1/16-12 |
1.28 |
0.38 |
1.125 |
| 2408-14 |
7/8 |
1-3/16-12 |
1.31 |
0.38 |
1.250 |
| 2408-16 |
1 |
1-5/16-12 |
1.33 |
0.38 |
1.375 |
| 2408-20 |
1-1/4 |
1-5/8-12 |
1.45 |
0.46 |
1.688 |
| 2408-24 |
1-1/2 |
1-7/8-12 |
1.65 |
0.53 |
2.000 |
| 2408-32 |
2 |
2-1/2-12 |
2.05 |
0.68 |
2.625 |
