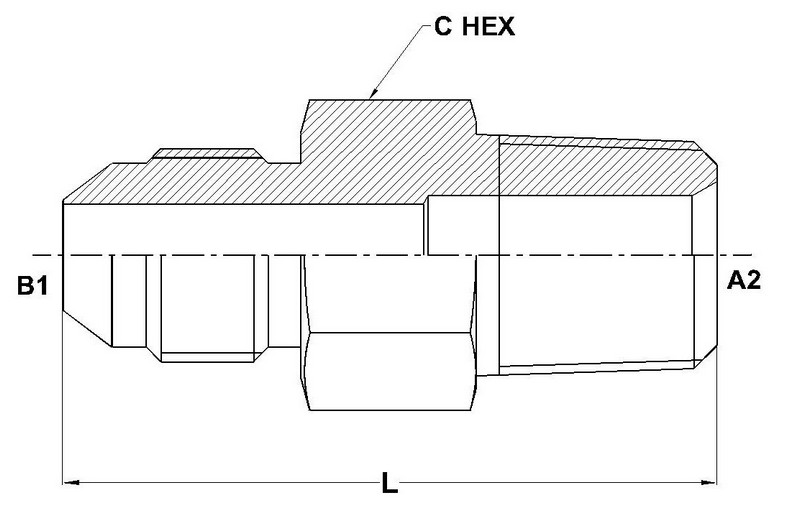

2404-L Series
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
B1 DRILL |
A2 DRILL |
L LGTH |
C HEX |
| 2404-L-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
0.188 |
1.81 |
0.500 |
| 2404-L-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
0.281 |
2.25 |
0.625 |
| 2404-L-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
0.188 |
1.94 |
0.562 |
| 2404-L-05-04 |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
0.281 |
2.25 |
0.625 |
| 2404-L-06-02 |
3/8 |
9/16-18 |
1/8-27 |
0.297 |
0.188 |
2.20 |
0.625 |
| 2404-L-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
0.281 |
2.25 |
0.625 |
| 2404-L-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
0.406 |
2.50 |
0.812 |
| 2404-L-06-08 |
3/8 |
9/16-18 |
1/2-14 |
0.297 |
0.531 |
2.95 |
0.875 |
| 2404-L-08-04 |
1/2 |
3/4-16 |
1/4-18 |
0.391 |
0.281 |
2.75 |
0.812 |
| 2404-L-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
0.406 |
2.75 |
0.812 |
| 2404-L-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
0.531 |
3.04 |
0.875 |
| 2404-L-10-06 |
5/8 |
7/8-14 |
3/8-18 |
0.484 |
0.406 |
2.94 |
0.937 |
| 2404-L-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
0.531 |
3.13 |
0.937 |
| 2404-L-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
0.719 |
3.50 |
1.125 |
| 2404-L-16-12 |
1 |
1-5/16-12 |
3/4-14 |
0.844 |
0.719 |
3.81 |
1.375 |
| 2404-L-16-16 |
1 |
1-5/16-12 |
1-11 1/2 |
0.844 |
0.938 |
4.00 |
1.375 |
| 2404-L-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11 1/2 |
1.078 |
1.250 |
4.50 |
1.688 |
| 2404-L-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11 1/2 |
1.312 |
1.500 |
4.88 |
2.000 |
| 2404-L-32-32 |
2 |
2-1/2-12 |
2-11 1/2 |
1.781 |
1.938 |
5.62 |
2.625 |
