2607 Series

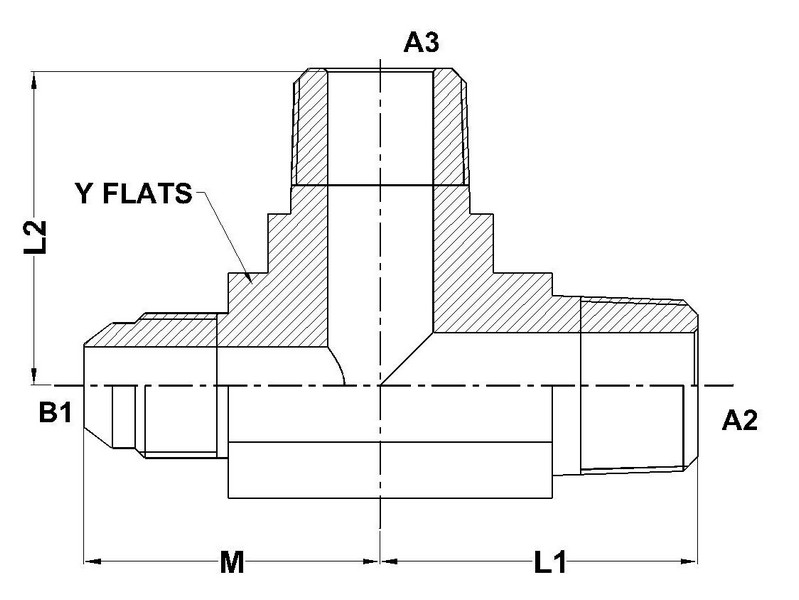

| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
A3 NPTF |
B1 DRILL |
A2 DRILL |
A3 DRILL |
M LGTH |
L1 LGTH |
L2 LGTH |
Y FLATS |
| 2607-04-02-02-FG |
1/4 |
7/16-20 |
1/8-27 |
1/8-27 |
0.172 |
0.188 |
0.188 |
0.89 |
0.72 |
0.72 |
0.438 |
| 2607-06-04-04-FG |
3/8 |
9/16-18 |
1/4-18 |
1/4-18 |
0.297 |
0.281 |
0.281 |
1.06 |
1.09 |
1.09 |
0.562 |
| 2607-06-06-06-FG |
3/8 |
9/16-18 |
3/8-18 |
3/8-18 |
0.297 |
0.406 |
0.406 |
1.14 |
1.22 |
1.22 |
0.750 |
| 2607-08-06-06-FG |
1/2 |
3/4-16 |
3/8-18 |
3/8-18 |
0.391 |
0.406 |
0.406 |
1.25 |
1.22 |
1.22 |
0.750 |
| 2607-08-08-08-FG |
1/2 |
3/4-16 |
1/2-14 |
1/2-14 |
0.391 |
0.531 |
0.531 |
1.33 |
1.47 |
1.47 |
0.875 |
| 2607-10-08-06-FG |
5/8 |
7/8-14 |
1/2-14 |
3/8-18 |
0.484 |
0.531 |
0.406 |
1.45 |
1.47 |
1.28 |
0.875 |
| 2607-10-08-08-FG |
5/8 |
7/8-14 |
1/2-14 |
1/2-14 |
0.484 |
0.531 |
0.531 |
1.45 |
1.47 |
1.47 |
0.875 |
| 2607-12-12-12-FG |
3/4 |
1 1/16-12 |
3/4-14 |
3/4-14 |
0.609 |
0.719 |
0.719 |
1.66 |
1.59 |
1.59 |
1.062 |
| 2607-16-16-16-FG |
1 |
1 5/16-12 |
1-11 1/2 |
1-11 1/2 |
0.844 |
0.938 |
0.938 |
1.81 |
1.97 |
1.97 |
1.312 |
| 2607-20-20-20-FG |
1-1/4 |
1 5/8-12 |
1 1/4-11 1/2 |
1 1/4-11 1/2 |
1.078 |
1.250 |
1.250 |
2.06 |
2.38 |
2.38 |
1.625 |
