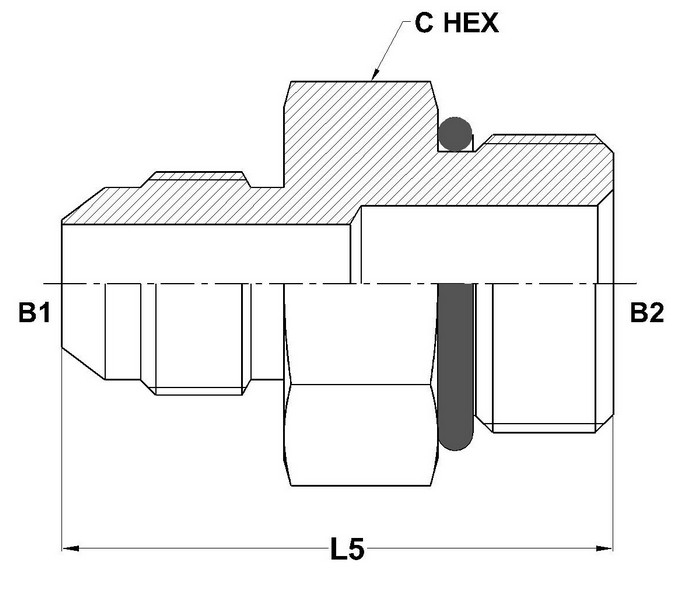

6400-O Series SAE# 070120 /MS# 51525
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
B2 SAE ORB |
B1 DRILL |
B2 DRILL |
L5 LGTH |
C4 HEX |
| 6400-02-02-O |
1/8 |
5/16-24 |
5/16-24 |
0.062 |
0.062 |
1.06 |
0.438 |
| 6400-02-06-O |
1/8 |
5/16-24 |
9/16-18 |
0.062 |
0.297 |
1.19 |
0.688 |
| 6400-03-02-O |
3/16 |
3/8-24 |
5/16-24 |
0.125 |
0.062 |
1.10 |
0.500 |
| 6400-03-03-O |
3/16 |
3/8-24 |
3/8-24 |
0.125 |
0.125 |
1.10 |
0.500 |
| 6400-03-04-O |
1/4 |
3/8-24 |
7/16-20 |
0.125 |
0.172 |
1.16 |
0.562 |
| 6400-04-02-O |
1/4 |
7/16-20 |
5/16-24 |
0.172 |
0.062 |
1.17 |
0.500 |
| 6400-04-03-O |
1/4 |
7/16-20 |
3/8-24 |
0.172 |
0.125 |
1.17 |
0.562 |
| 6400-04-04-O |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.23 |
0.562 |
| 6400-04-05-O |
1/4 |
7/16-20 |
1/2-20 |
0.172 |
0.234 |
1.23 |
0.625 |
| 6400-04-06-O |
1/4 |
7/16-20 |
9/16-18 |
0.172 |
0.297 |
1.29 |
0.688 |
| 6400-04-08-O |
1/4 |
7/16-20 |
3/4-16 |
0.172 |
0.391 |
1.37 |
0.875 |
| 6400-04-10-O |
1/4 |
7/16-20 |
7/8-14 |
0.172 |
0.484 |
1.49 |
1.000 |
| 6400-04-12-O |
1/4 |
7/16-20 |
1-1/16-12 |
0.172 |
0.609 |
1.66 |
1.250 |
| 6400-05-04-O |
5/16 |
1/2-20 |
7/16-20 |
0.234 |
0.172 |
1.23 |
0.562 |
| 6400-05-05-O |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
1.23 |
0.625 |
| 6400-05-06-O |
5/16 |
1/2-20 |
9/16-18 |
0.234 |
0.297 |
1.29 |
0.688 |
| 6400-05-08-O |
5/16 |
1/2-20 |
3/4-16 |
0.234 |
0.391 |
1.37 |
0.875 |
| 6400-05-10-O |
5/16 |
1/2-20 |
7/8-14 |
0.234 |
0.484 |
1.49 |
1.000 |
| 6400-06-03-O |
3/8 |
9/16-18 |
3/8-24 |
0.297 |
0.125 |
1.30 |
0.687 |
| 6400-06-04-O |
3/8 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
1.27 |
0.687 |
| 6400-06-05-O |
3/8 |
9/16-18 |
1/2-20 |
0.297 |
0.234 |
1.27 |
0.687 |
| 6400-06-06-O |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.30 |
0.688 |
| 6400-06-08-O |
3/8 |
9/16-18 |
3/4-16 |
0.297 |
0.391 |
1.38 |
0.875 |
| 6400-06-10-O |
3/8 |
9/16-18 |
7/8-14 |
0.297 |
0.484 |
1.50 |
1.000 |
| 6400-06-12-O |
3/8 |
9/16-18 |
1-1/16-12 |
0.297 |
0.609 |
1.66 |
1.250 |
| 6400-06-16-O |
3/8 |
9/16-18 |
1-5/16-12 |
0.297 |
0.844 |
1.68 |
1.500 |
| 6400-08-04-O |
1/2 |
3/4-16 |
7/16-20 |
0.391 |
0.172 |
1.49 |
0.875 |
| 6400-08-05-O |
1/2 |
3/4-16 |
1/2-20 |
0.391 |
0.234 |
1.49 |
0.875 |
| 6400-08-06-O |
1/2 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
1.44 |
0.812 |
| 6400-08-08-O |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.48 |
0.875 |
| 6400-08-10-O |
1/2 |
3/4-16 |
7/8-14 |
0.391 |
0.484 |
1.60 |
1.000 |
| 6400-08-12-O |
1/2 |
3/4-16 |
1-1/16-12 |
0.391 |
0.609 |
1.76 |
1.250 |
| 6400-08-14-O |
1/2 |
3/4-16 |
1-3/16-12 |
0.391 |
0.719 |
1.76 |
1.375 |
| 6400-08-16-O |
1/2 |
3/4-16 |
1-5/16-12 |
0.391 |
0.844 |
1.79 |
1.500 |
| 6400-08-20-O |
1/2 |
3/4-16 |
1-5/8-12 |
0.391 |
1.078 |
1.87 |
1.875 |
| 6400-10-04-O |
5/8 |
7/8-14 |
7/16-20 |
0.484 |
0.172 |
1.65 |
1.000 |
| 6400-10-06-O |
5/8 |
7/8-14 |
9/16-18 |
0.484 |
0.297 |
1.71 |
1.000 |
| 6400-10-08-O |
5/8 |
7/8-14 |
3/4-16 |
0.484 |
0.391 |
1.64 |
1.000 |
| 6400-10-10-O |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.70 |
1.000 |
| 6400-10-12-O |
5/8 |
7/8-14 |
1-1/16-12 |
0.484 |
0.609 |
1.86 |
1.250 |
| 6400-10-14-O |
5/8 |
7/8-14 |
1-3/16-12 |
0.484 |
0.719 |
1.86 |
1.375 |
| 6400-10-16-O |
5/8 |
7/8-14 |
1-5/16-12 |
0.484 |
0.844 |
1.89 |
1.500 |
| 6400-10-20-O |
5/8 |
7/8-14 |
1-5/8-12 |
0.484 |
1.078 |
1.97 |
1.875 |
| 6400-12-06-O |
3/4 |
1-1/16-12 |
9/16-18 |
0.609 |
0.297 |
1.86 |
1.125 |
| 6400-12-08-O |
3/4 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
1.94 |
1.125 |
| 6400-12-10-O |
3/4 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
1.88 |
1.125 |
| 6400-12-12-O |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.97 |
1.250 |
| 6400-12-14-O |
3/4 |
1-1/16-12 |
1-3/16-12 |
0.609 |
0.719 |
1.96 |
1.375 |
| 6400-12-16-O |
3/4 |
1-1/16-12 |
1-5/16-12 |
0.609 |
0.844 |
1.99 |
1.500 |
| 6400-12-20-O |
3/4 |
1-1/16-12 |
1-5/8-12 |
0.609 |
1.078 |
2.08 |
1.875 |
| 6400-12-24-O |
7/8 |
1-1/16-12 |
1-7/8-12 |
0.609 |
1.312 |
2.15 |
2.12 |
| 6400-14-08-O |
7/8 |
1-3/16-12 |
3/4-16 |
0.719 |
0.391 |
1.96 |
1.250 |
| 6400-14-10-O |
7/8 |
1-3/16-12 |
7/8-14 |
0.719 |
0.484 |
2.02 |
1.250 |
| 6400-14-12-O |
7/8 |
1-3/16-12 |
1-1/16-12 |
0.719 |
0.609 |
1.99 |
1.250 |
| 6400-14-14-O |
7/8 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
1.99 |
1.375 |
| 6400-14-16-O |
7/8 |
1-3/16-12 |
1-5/16-12 |
0.719 |
0.844 |
2.02 |
1.500 |
| 6400-16-06-O |
1 |
1-5/16-12 |
9/16-18 |
0.844 |
0.297 |
1.93 |
1.375 |
| 6400-16-08-O |
1 |
1-5/16-12 |
3/4-16 |
0.844 |
0.391 |
2.01 |
1.375 |
| 6400-16-10-O |
1 |
1-5/16-12 |
7/8-14 |
0.844 |
0.484 |
2.07 |
1.375 |
| 6400-16-12-O |
1 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.609 |
2.04 |
1.375 |
| 6400-16-14-O |
1 |
1-5/16-12 |
1-3/16-12 |
0.844 |
0.719 |
2.04 |
1.375 |
| 6400-16-16-O |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
2.04 |
1.500 |
| 6400-16-20-O |
1 |
1-5/16-12 |
1-5/8-12 |
0.844 |
1.078 |
2.12 |
1.875 |
| 6400-16-24-O |
1 |
1-5/16-12 |
1-7/8-12 |
0.844 |
1.312 |
2.20 |
2.125 |
| 6400-20-12-O |
1-1/4 |
1-5/8-12 |
1-1/16-12 |
1.078 |
0.609 |
2.30 |
1.688 |
| 6400-20-16-O |
1-1/4 |
1-5/8-12 |
1-5/16-12 |
1.078 |
0.844 |
2.33 |
1.688 |
| 6400-20-20-O |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
2.17 |
1.875 |
| 6400-20-24-O |
1-1/4 |
1-5/8-12 |
1-7/8-12 |
1.078 |
1.312 |
2.24 |
2.125 |
| 6400-20-32-O |
1-1/4 |
1-5/8-12 |
2-1/2-12 |
1.078 |
1.781 |
2.40 |
2.400 |
| 6400-20-40-O |
1-1/4 |
1-5/8-12 |
3-12 |
1.078 |
2.318 |
|
|
| 6400-24-16-O |
1-1/2 |
1-7/8-12 |
1-5/16-12 |
1.312 |
0.844 |
2.53 |
2.750 |
| 6400-24-20-O |
1-1/2 |
1-7/8-12 |
1-5/8-12 |
1.312 |
1.078 |
2.53 |
2.125 |
| 6400-24-24-O |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
2.37 |
2.125 |
| 6400-24-32-O |
1-1/2 |
1-7/8-12 |
2-1/2-12 |
1.312 |
1.781 |
2.53 |
2.750 |
| 6400-32-20-O |
2 |
2-1/2-12 |
1-5/8-12 |
1.781 |
1.078 |
2.94 |
2.750 |
| 6400-32-24-O |
2 |
2-1/2-12 |
1-7/8-12 |
1.781 |
1.312 |
2.94 |
2.625 |
| 6400-32-32-O |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
2.78 |
2.750 |
| 6400-32-40-O |
2 |
2-1/2-12 |
3-12 |
1.781 |
2.318 |
|
|
