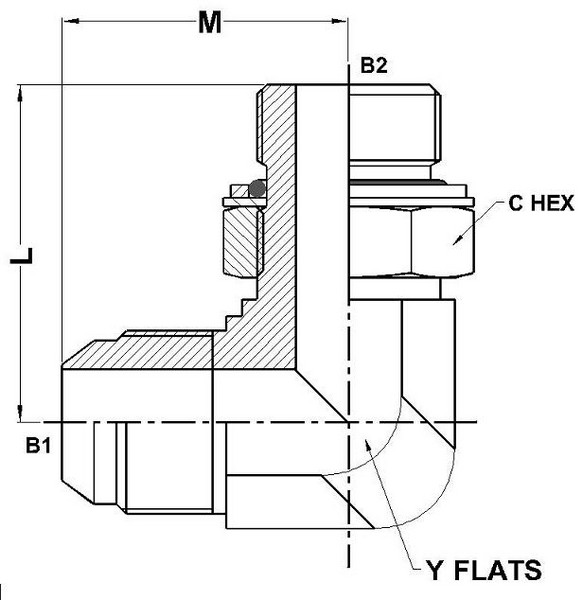

7205-NWO Series
| PART NO.SIZE |
B1 JIC 37 |
B2 MM |
B1 DRILL |
B2 DRILL |
M LGTH |
L LGTH |
C HEX |
Y FLATS |
| 7205-04-10-NWO-FG |
7/16-20 |
M10 x 1 |
4.4 |
4.5 |
22.5 |
25.4 |
14.0 |
12.0 |
| 7205-04-12-NWO-FG |
7/16-20 |
M12 x 1.5 |
4.4 |
6.0 |
26.7 |
28.5 |
17.0 |
14.0 |
| 7205-04-14-NWO-FG |
7/16-20 |
M14 x 1.5 |
4.4 |
7.5 |
26.7 |
32.5 |
19.0 |
14.0 |
| 7205-05-10-NWO-FG |
1/2-20 |
M10 x 1 |
6.0 |
4.5 |
24.0 |
25.4 |
14.0 |
14.0 |
| 7205-05-12-NWO-FG |
1/2-20 |
M12 x 1.5 |
6.0 |
6.0 |
24.0 |
28.5 |
17.0 |
14.0 |
| 7205-06-14-NWO-FG |
9/16-18 |
M14 x 1.5 |
7.5 |
7.5 |
27.0 |
32.5 |
19.0 |
14.0 |
| 7205-06-16-NWO-FG |
9/16-18 |
M16 x 1.5 |
7.5 |
9.0 |
29.2 |
36.4 |
22.0 |
19.0 |
| 7205-08-16-NWO-FG |
3/4-16 |
M16 x 1.5 |
9.9 |
9.0 |
32.0 |
36.4 |
22.0 |
19.0 |
| 7205-08-18-NWO-FG |
3/4-16 |
M18 x 1.5 |
9.9 |
11.0 |
32.0 |
36.8 |
24.0 |
19.0 |
| 7205-08-22-NWO-FG |
3/4-16 |
M22 x 1.5 |
9.9 |
14.0 |
34.0 |
42.5 |
27.0 |
22.0 |
| 7205-10-18-NWO-FG |
7/8-14 |
M18 x 1.5 |
12.3 |
11.0 |
37.0 |
41.0 |
24.0 |
22.0 |
| 7205-10-20-NWO-FG |
7/8-14 |
M20 x 1.5 |
12.3 |
10.0 |
37.0 |
41.5 |
27.0 |
22.0 |
| 7205-10-22-NWO-FG |
7/8-14 |
M22 x 1.5 |
12.3 |
14.0 |
37.0 |
42.5 |
27.0 |
22.0 |
| 7205-12-22-NWO-FG |
1-1/16-12 |
M22 x 1.5 |
15.5 |
14.0 |
42.0 |
44.0 |
27.0 |
27.0 |
| 7205-12-26-NWO-FG |
1-1/16-12 |
M26 x 1.5 |
15.5 |
18.0 |
42.0 |
50.0 |
32.0 |
27.0 |
| 7205-12-27-NWO-FG |
1-1/16-12 |
M27 x 2 |
15.5 |
18.0 |
42.0 |
50.0 |
32.0 |
27.0 |
| 7205-12-33-NWO-FG |
1-1/16-12 |
M33 x 2 |
15.5 |
23.0 |
44.7 |
53.0 |
41.0 |
33.0 |
| 7205-16-27-NWO-FG |
1-5/16-12 |
M27 x 2 |
21.5 |
18.0 |
46.0 |
53.0 |
32.0 |
33.0 |
| 7205-16-33-NWO-FG |
1-5/16-12 |
M33 x 2 |
21.5 |
23.0 |
46.0 |
53.0 |
41.0 |
33.0 |
