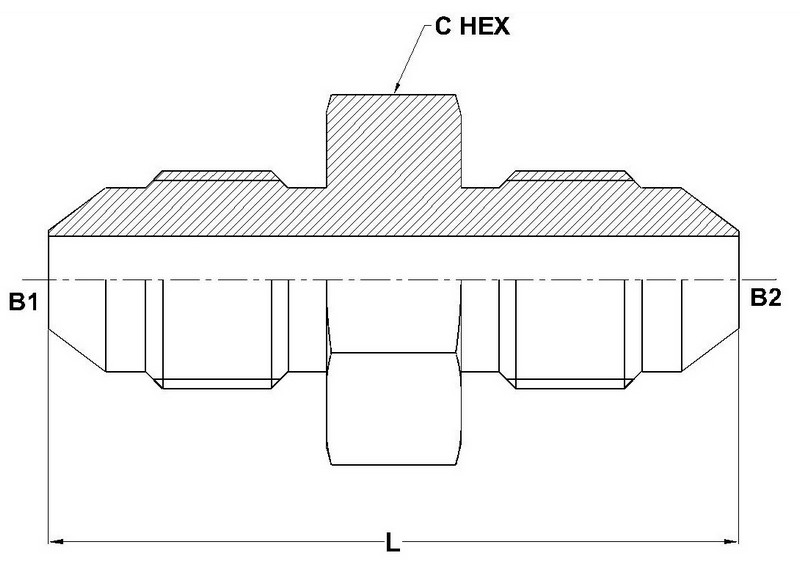

2403-LH Series SAE# 070119 / MS# 51519
| PART NO. SIZE |
B1 TUBE O.D. |
B2 TUBE O.D. |
B1 SAE 37 |
B2 SAE37 |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 2403-LH-02-02 |
1/8 |
1/8 |
5/16-24 |
5/16-24 |
0.062 |
0.062 |
1.17 |
0.562 |
| 2403-LH-03-02 |
3/16 |
1/8 |
3/8-24 |
5/16-24 |
0.125 |
0.062 |
1.20 |
0.625 |
| 2403-LH-03-03 |
3/16 |
3/16 |
3/8-24 |
3/8-24 |
0.125 |
0.125 |
1.23 |
0.625 |
| 2403-LH-04-02 |
1/4 |
1/8 |
7/16-20 |
5/16-24 |
0.172 |
0.062 |
1.27 |
0.688 |
| 2403-LH-04-03 |
1/4 |
3/16 |
7/16-20 |
3/8-24 |
0.172 |
0.125 |
1.30 |
0.688 |
| 2403-LH-04-04 |
1/4 |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.37 |
0.688 |
| 2403-LH-05-04 |
5/16 |
1/4 |
1/2-20 |
7/16-20 |
0.234 |
0.172 |
1.37 |
0.750 |
| 2403-LH-05-05 |
5/16 |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
1.37 |
0.750 |
| 2403-LH-06-04 |
3/8 |
1/4 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
1.40 |
0.812 |
| 2403-LH-06-05 |
3/8 |
5/16 |
9/16-18 |
1/2-20 |
0.297 |
0.234 |
1.40 |
0.812 |
| 2403-LH-06-06 |
3/8 |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.41 |
0.812 |
| 2403-LH-08-04 |
1/2 |
1/4 |
3/4-16 |
7/16-20 |
0.391 |
0.172 |
1.51 |
1.000 |
| 2403-LH-08-05 |
1/2 |
5/16 |
3/4-16 |
1/2-20 |
0.391 |
0.234 |
1.51 |
1.000 |
| 2403-LH-08-06 |
1/2 |
3/8 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
1.52 |
1.000 |
| 2403-LH-08-08 |
1/2 |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.62 |
1.000 |
| 2403-LH-10-04 |
5/8 |
1/4 |
7/8-14 |
7/16-20 |
0.484 |
0.172 |
1.67 |
1.125 |
| 2403-LH-10-06 |
5/8 |
3/8 |
7/8-14 |
9/16-18 |
0.484 |
0.297 |
1.68 |
1.125 |
| 2403-LH-10-08 |
5/8 |
1/2 |
7/8-14 |
3/4-16 |
0.484 |
0.391 |
1.78 |
1.125 |
| 2403-LH-10-10 |
5/8 |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.88 |
1.125 |
| 2403-LH-12-04 |
3/4 |
1/4 |
1-1/16-12 |
7/16-20 |
0.609 |
0.172 |
1.85 |
1.375 |
| 2403-LH-12-05 |
3/4 |
5/16 |
1-1/16-12 |
1/2-20 |
0.609 |
0.234 |
1.85 |
1.375 |
| 2403-LH-12-06 |
3/4 |
3/8 |
1-1/16-12 |
9/16-18 |
0.609 |
0.297 |
1.85 |
1.375 |
| 2403-LH-12-08 |
3/4 |
1/2 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
1.95 |
1.375 |
| 2403-LH-12-10 |
3/4 |
5/8 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
2.05 |
1.375 |
| 2403-LH-12-12 |
3/4 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
2.16 |
1.375 |
| 2403-LH-14-14 |
7/8 |
7/8 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
2.21 |
1.500 |
| 2403-LH-16-04 |
1 |
1/4 |
1-5/16-12 |
7/16-20 |
0.844 |
0.172 |
1.89 |
1.625 |
| 2403-LH-16-08 |
1 |
1/2 |
1-5/16-12 |
3/4-16 |
0.844 |
0.391 |
2.00 |
1.625 |
| 2403-LH-16-10 |
1 |
5/8 |
1-5/16-12 |
7/8-14 |
0.844 |
0.484 |
2.10 |
1.625 |
| 2403-LH-16-12 |
1 |
3/4 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.609 |
2.20 |
1.625 |
| 2403-LH-16-16 |
1 |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
2.25 |
1.625 |
| 2403-LH-20-04 |
1-1/4 |
1/4 |
1-5/8-12 |
7/16-20 |
1.078 |
0.172 |
2.02 |
1.875 |
| 2403-LH-20-10 |
1-1/4 |
5/8 |
1-5/8-12 |
7/8-14 |
1.078 |
0.484 |
2.23 |
1.875 |
| 2403-LH-20-12 |
1-1/4 |
3/4 |
1-5/8-12 |
1-1/16-12 |
1.078 |
0.609 |
2.34 |
1.875 |
| 2403-LH-20-16 |
1-1/4 |
1 |
1-5/8-12 |
1-5/16-12 |
1.078 |
0.844 |
2.38 |
1.875 |
| 2403-LH-20-20 |
1-1/4 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
2.43 |
1.875 |
| 2403-LH-24-16 |
1-1/2 |
1 |
1-7/8-12 |
1-5/16-12 |
1.312 |
0.844 |
2.58 |
2.125 |
| 2403-LH-24-20 |
1-1/2 |
1-1/4 |
1-7/8-12 |
1-5/8-12 |
1.312 |
1.078 |
2.62 |
2.125 |
| 2403-LH-24-24 |
1-1/2 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
2.75 |
2.125 |
| 2403-LH-32-32 |
2 |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
3.40 |
2.750 |
