MJ-MJ-MJ Tee

Tube Fittings & Adapters
2603 Series

MJ-MJ-MJ Tee

Enquiry
Download PDF

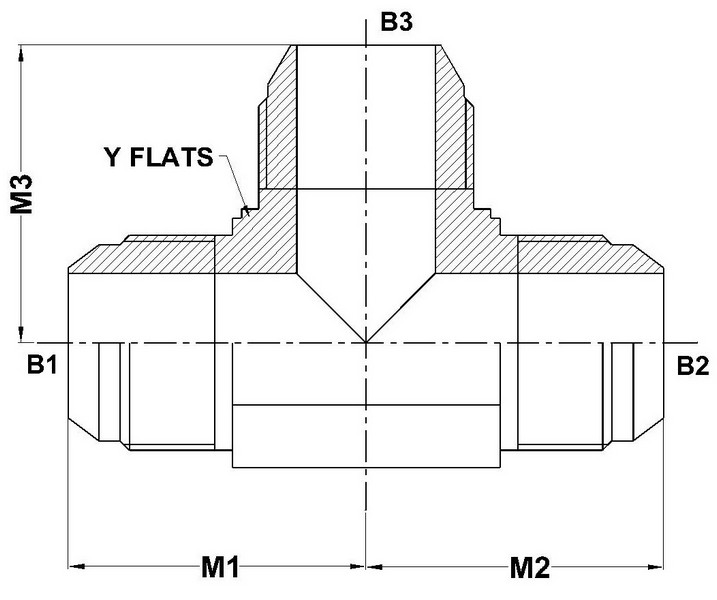

2603 Series SAE# 070401 / MS# 51510
PART NO. SIZE TUBE O.D. B1 SAE 37 B2 SAE 37 B3 SAE 37 B1 DRILL B2 DRILL B3 DRILL M1 LGTH M2 LGTH M3 LGTH Y FLATS
2603-02-02-02-FG 1/8 5/16-24 5/16-24 5/16-24 0.062 0.062 0.062 0.77 0.77 0.77 0.438
2603-03-03-03-FG 3/16 3/8-24 3/8-24 3/8-24 0.125 0.125 0.125 0.83 0.83 0.83 0.438
2603-04-04-04-FG 1/4 7/16-20 7/16-20 7/16-20 0.172 0.172 0.172 0.89 0.89 0.89 0.438
2603-04-04-06-FG 1/4 7/16-20 7/16-20 9/16-18 0.172 0.172 0.297 1.05 1.05 1.06 0.562
2603-05-05-04-FG 5/16 1/2-20 1/2-20 7/16-20 0.234 0.234 0.172 0.95 0.95 0.95 0.562
2603-05-05-05-FG 5/16 1/2-20 1/2-20 1/2-20 0.234 0.234 0.234 0.95 0.95 0.95 0.562
2603-06-06-04-FG 3/8 9/16-18 9/16-18 7/16-20 0.297 0.297 0.172 1.06 1.06 1.05 0.562
2603-06-06-06-FG 3/8 9/16-18 9/16-18 9/16-18 0.297 0.297 0.297 1.06 1.06 1.06 0.562
2603-06-06-08-FG 3/8 9/16-18 9/16-18 3/4-16 0.297 0.297 0.391 1.14 1.14 1.25 0.750
2603-06-06-10-FG 3/8 9/16-18 9/16-18 7/8-14 0.297 0.297 0.484 1.22 1.22 1.45 0.875
2603-08-06-06-FG 1/2 3/4-16 9/16-18 9/16-18 0.391 0.297 0.297 1.25 1.14 1.14 0.750
2603-08-08-06-FG 1/2 3/4-16 3/4-16 9/16-18 0.391 0.391 0.297 1.25 1.25 1.14 0.750
2603-08-08-08-FG 1/2 3/4-16 3/4-16 3/4-16 0.391 0.391 0.391 1.25 1.25 1.25 0.750
2603-08-08-10-FG 1/2 3/4-16 3/4-16 7/8-14 0.391 0.391 0.484 1.33 1.33 1.45 0.875
2603-08-08-12-FG 1/2 3/4-16 3/4-16 1-1/16-12 0.391 0.391 0.609 1.42 1.42 1.66 1.062
2603-10-08-08-FG 5/8 7/8-14 3/4-16 3/4-16 0.484 0.391 0.391 1.45 1.33 1.33 0.875
2603-10-10-06-FG 5/8 7/8-14 7/8-14 9/16-18 0.484 0.484 0.297 1.45 1.45 1.22 0.875
2603-10-10-08-FG 5/8 7/8-14 7/8-14 3/4-16 0.484 0.484 0.391 1.45 1.45 1.33 0.875
2603-10-10-10-FG 5/8 7/8-14 7/8-14 7/8-14 0.484 0.484 0.484 1.45 1.45 1.45 0.875
2603-10-10-12-FG 5/8 7/8-14 7/8-14 1-1/16-12 0.484 0.484 0.609 1.54 1.54 1.66 1.062
2603-12-10-10-FG 3/4 1-1/16-12 7/8-14 7/8-14 0.609 0.484 0.484 1.66 1.54 1.54 1.062
2603-12-12-06-FG 3/4 1-1/16-12 1-1/16-12 9/16-18 0.609 0.609 0.297 1.66 1.66 1.31 1.062
2603-12-12-08-FG 3/4 1-1/16-12 1-1/16-12 3/4-16 0.609 0.609 0.391 1.66 1.66 1.42 1.062
2603-12-12-10-FG 3/4 1-1/16-12 1-1/16-12 7/8-14 0.609 0.609 0.484 1.66 1.66 1.54 1.062
2603-12-12-12-FG 3/4 1-1/16-12 1-1/16-12 1-1/16-12 0.609 0.609 0.609 1.66 1.66 1.66 1.062
2603-12-12-16-FG 3/4 1-1/16-12 1-1/16-12 1-5/16-12 0.609 0.609 0.844 1.76 1.76 1.81 1.312
2603-12-12-20-FG 3/4 1-1/16-12 1-1/16-12 1-5/8-12 0.609 0.609 1.078 1.97 1.97 2.06 1.625
2603-14-14-14-FG 7/8 1-3/16-12 1-3/16-12 1-3/16-12 0.719 0.719 0.719 1.80 1.80 1.80 1.312
2603-16-12-12-FG 1 1-5/16-12 1-1/16-12 1-1/16-12 0.844 0.609 0.609 1.81 1.76 1.76 1.312
2603-16-12-16-FG 1 1-5/16-12 1-1/16-12 1-5/16-12 0.844 0.609 0.844 1.81 1.76 1.81 1.312
2603-16-16-12-FG 1 1-5/16-12 1-5/16-12 1-1/16-12 0.844 0.844 0.609 1.81 1.81 1.76 1.312
2603-16-16-16-FG 1 1-5/16-12 1-5/16-12 1-5/16-12 0.844 0.844 0.844 1.81 1.81 1.81 1.312
2603-20-20-12-FG 1-1/4 1-5/8-12 1-5/8-12 1-1/16-12 1.078 1.078 0.609 2.06 2.06 1.97 1.625
2603-20-20-16-FG 1-1/4 1-5/8-12 1-5/8-12 1-5/16-12 1.078 1.078 0.844 2.06 2.06 2.01 1.625
2603-20-20-20-FG 1-1/4 1-5/8-12 1-5/8-12 1-5/8-12 1.078 1.078 1.078 2.06 2.06 2.06 1.625
2603-24-24-24-FG 1-1/2 1-7/8-12 1-7/8-12 1-7/8-12 1.312 1.312 1.312 2.33 2.33 2.33 1.875
2603-32-32-32-FG 2 2-1/2-12 2-1/2-12 2-1/2-12 1.781 1.781 1.781 3.06 3.06 3.06 2.500
