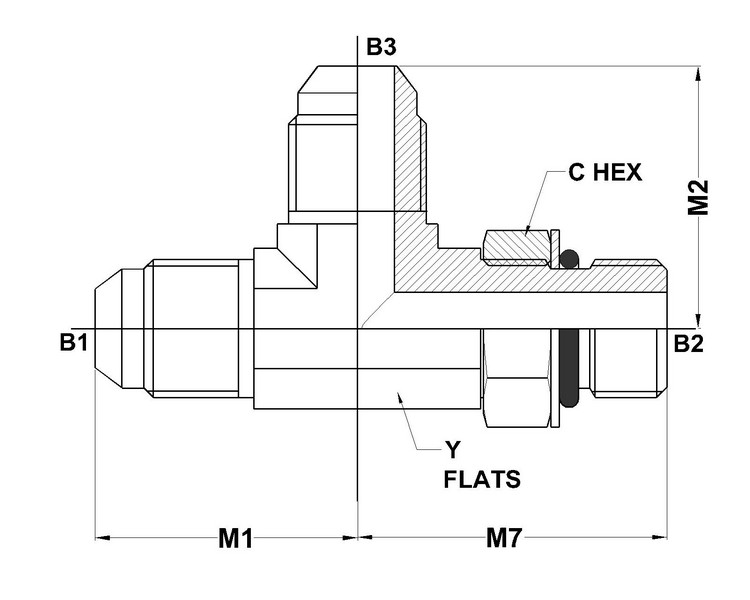

6804-NWO Series SAE# 070428 / MS# 51530
| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
B2 SAE ORB |
B3 SAE 37 |
B1 DRILL |
B2 DRILL |
B3 DRILL |
M1 LGTH |
M7 LGTH |
M2 LGTH |
C HEX |
Y FLATS |
| 6804-02-02-02-NWO-FG |
1/8 |
5/16-24 |
5/16-24 |
5/16-24 |
0.062 |
0.062 |
0.062 |
0.77 |
0.94 |
0.77 |
0.438 |
0.438 |
| 6804-02-04-02-NWO-FG |
1/8 |
5/16-24 |
7/16-20 |
5/16-24 |
0.062 |
0.172 |
0.062 |
0.89 |
1.03 |
0.89 |
0.563 |
0.438 |
| 6804-04-04-04-NWO-FG |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
0.172 |
0.89 |
1.03 |
0.89 |
0.563 |
0.438 |
| 6804-04-06-04-NWO-FG |
1/4 |
7/16-20 |
9/16-18 |
7/16-20 |
0.172 |
0.297 |
0.172 |
1.05 |
1.25 |
1.05 |
0.688 |
0.562 |
| 6804-05-04-05-NWO-FG |
5/16 |
1/2-20 |
7/16-20 |
1/2-20 |
0.234 |
0.172 |
0.234 |
0.95 |
1.13 |
0.95 |
0.563 |
0.562 |
| 6804-05-05-05-NWO-FG |
5/16 |
1/2-20 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
0.234 |
0.95 |
1.13 |
0.95 |
0.625 |
0.562 |
| 6804-06-04-06-NWO-FG |
3/8 |
9/16-18 |
7/16-20 |
9/16-18 |
0.297 |
0.172 |
0.297 |
1.06 |
1.19 |
1.06 |
0.563 |
0.562 |
| 6804-06-06-04-NWO-FG |
3/8 |
9/16-18 |
9/16-18 |
7/16-20 |
0.297 |
0.297 |
0.172 |
1.06 |
1.25 |
1.06 |
0.688 |
0.562 |
| 6804-06-06-06-NWO-FG |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
0.297 |
1.06 |
1.25 |
1.06 |
0.688 |
0.562 |
| 6804-06-08-06-NWO-FG |
3/8 |
9/16-18 |
3/4-16 |
9/16-18 |
0.297 |
0.391 |
0.297 |
1.14 |
1.45 |
1.14 |
0.875 |
0.750 |
| 6804-06-08-08-NWO-FG |
3/8 |
9/16-18 |
3/4-16 |
3/4-16 |
0.297 |
0.391 |
0.391 |
1.14 |
1.45 |
1.25 |
0.875 |
0.750 |
| 6804-08-06-04-NWO-FG |
1/2 |
3/4-16 |
9/16-18 |
7/16-20 |
0.391 |
0.297 |
0.172 |
1.25 |
1.32 |
1.25 |
0.688 |
0.750 |
| 6804-08-06-08-NWO-FG |
1/2 |
3/4-16 |
9/16-18 |
3/4-16 |
0.391 |
0.297 |
0.391 |
1.25 |
1.32 |
1.25 |
0.688 |
0.750 |
| 6804-08-08-04-NWO-FG |
1/2 |
3/4-16 |
3/4-16 |
7/16-20 |
0.391 |
0.391 |
0.172 |
1.25 |
1.45 |
1.12 |
0.875 |
0.750 |
| 6804-08-08-08-NWO-FG |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
0.391 |
1.25 |
1.45 |
1.25 |
0.875 |
0.750 |
| 6804-08-10-08-NWO-FG |
1/2 |
3/4-16 |
7/8-14 |
3/4-16 |
0.391 |
0.484 |
0.391 |
1.33 |
1.70 |
1.33 |
1.000 |
0.875 |
| 6804-08-12-04-NWO-FG |
1/2 |
3/4-16 |
1-1/16-12 |
7/16-20 |
0.391 |
0.609 |
0.172 |
1.42 |
1.94 |
1.30 |
1.250 |
1.062 |
| 6804-08-12-08-NWO-FG |
1/2 |
3/4-16 |
1-1/16-12 |
3/4-16 |
0.391 |
0.609 |
0.391 |
1.42 |
1.94 |
1.42 |
1.250 |
1.062 |
| 6804-10-08-10-NWO-FG |
5/8 |
7/8-14 |
3/4-16 |
7/8-14 |
0.484 |
0.391 |
0.484 |
1.45 |
1.54 |
1.45 |
0.875 |
0.875 |
| 6804-10-10-10-NWO-FG |
5/8 |
7/8-14 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
0.484 |
1.45 |
1.70 |
1.45 |
1.000 |
0.875 |
| 6804-10-12-06-NWO-FG |
5/8 |
7/8-14 |
1-1/16-12 |
9/16-18 |
0.484 |
0.609 |
0.297 |
1.54 |
1.94 |
1.54 |
1.250 |
1.062 |
| 6804-10-12-10-NWO-FG |
5/8 |
7/8-14 |
1-1/16-12 |
7/8-14 |
0.484 |
0.609 |
0.484 |
1.54 |
1.94 |
1.54 |
1.250 |
1.062 |
| 6804-10-16-08-NWO-FG |
5/8 |
7/8-14 |
1-5/16-12 |
3/4-16 |
0.484 |
0.844 |
0.391 |
1.64 |
2.05 |
1.64 |
1.500 |
1.312 |
| 6804-12-08-12-NWO-FG |
3/4 |
1-1/16-12 |
3/4-16 |
1-1/16-12 |
0.609 |
0.391 |
0.609 |
1.66 |
1.62 |
1.66 |
0.875 |
1.062 |
| 6804-12-10-12-NWO-FG |
3/4 |
1-1/16-12 |
7/8-14 |
1-1/16-12 |
0.609 |
0.484 |
0.609 |
1.66 |
1.78 |
1.66 |
1.000 |
1.062 |
| 6804-12-12-06-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
9/16-18 |
0.609 |
0.609 |
0.297 |
1.66 |
1.94 |
1.66 |
1.250 |
1.062 |
| 6804-12-12-08-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
3/4-16 |
0.609 |
0.609 |
0.391 |
1.66 |
1.94 |
1.42 |
1.250 |
1.062 |
| 6804-12-12-10-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
7/8-14 |
0.609 |
0.609 |
0.484 |
1.66 |
1.94 |
1.66 |
1.250 |
1.062 |
| 6804-12-12-12-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
0.609 |
1.66 |
1.94 |
1.66 |
1.250 |
1.062 |
| 6804-12-12-16-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-5/16-12 |
0.609 |
0.609 |
0.844 |
1.76 |
2.05 |
1.76 |
1.250 |
1.312 |
| 6804-12-16-12-NWO-FG |
3/4 |
1-1/16-12 |
1-5/16-12 |
1-1/16-12 |
0.609 |
0.844 |
0.609 |
1.76 |
2.05 |
1.76 |
1.500 |
1.312 |
| 6804-14-14-14-NWO-FG |
7/8 |
1-3/16-12 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
0.719 |
1.80 |
2.00 |
1.80 |
1.375 |
1.312 |
| 6804-16-12-16-NWO-FG |
1 |
1-5/16-12 |
1-1/16-12 |
1-5/16-12 |
0.844 |
0.609 |
0.844 |
1.81 |
2.05 |
1.81 |
1.250 |
1.312 |
| 6804-16-16-12-NWO-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.844 |
0.609 |
1.81 |
2.05 |
1.81 |
1.500 |
1.312 |
| 6804-16-16-16-NWO-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
0.844 |
1.81 |
2.05 |
1.81 |
1.500 |
1.312 |
| 6804-20-20-20-NWO-FG |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
1.078 |
2.06 |
2.25 |
2.06 |
1.875 |
1.625 |
| 6804-24-24-24-NWO-FG |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
1.312 |
2.33 |
2.39 |
2.33 |
2.125 |
1.875 |
| 6804-32-32-32-NWO-FG |
2 |
2-1/2-12 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
1.781 |
3.06 |
2.89 |
3.06 |
2.750 |
2.500 |
