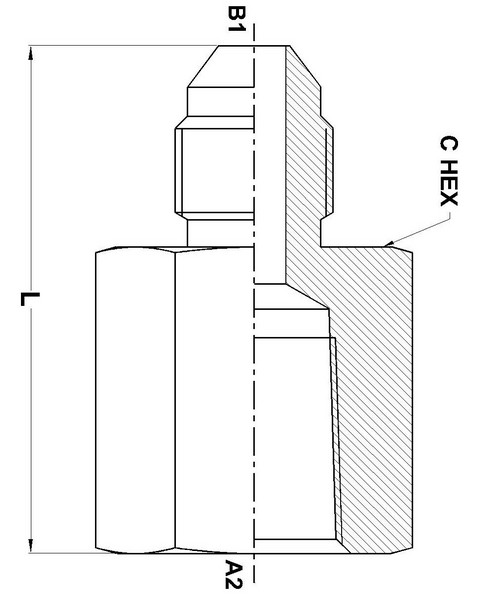

2405 Series SAE# 070103 / MS# 51503
| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
B1 DRILL |
L LGTH |
C HEX |
| 2405-02-02 |
1/8 |
5/16-24 |
1/8-27 |
0.062 |
1.12 |
0.562 |
| 2405-03-02 |
3/16 |
3/8-24 |
1/8-27 |
0.125 |
1.13 |
0.562 |
| 2405-03-04 |
3/16 |
3/8-24 |
1/4-18 |
0.125 |
1.32 |
0.750 |
| 2405-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
1.19 |
0.562 |
| 2405-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
1.39 |
0.750 |
| 2405-04-06 |
1/4 |
7/16-20 |
3/8-18 |
0.172 |
1.45 |
0.875 |
| 2405-04-08 |
1/4 |
7/16-20 |
1/2-14 |
0.172 |
1.68 |
1.125 |
| 2405-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
1.17 |
0.562 |
| 2405-05-04 |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
1.39 |
0.750 |
| 2405-05-06 |
5/16 |
1/2-20 |
3/8-18 |
0.234 |
1.06 |
0.875 |
| 2405-06-02 |
3/8 |
9/16-18 |
1/8-27 |
0.297 |
1.19 |
0.750 |
| 2405-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
1.40 |
0.750 |
| 2405-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
1.46 |
0.875 |
| 2405-06-08 |
3/8 |
9/16-18 |
1/2-14 |
0.297 |
1.69 |
1.125 |
| 2405-06-12 |
3/8 |
9/16-18 |
3/4-14 |
0.297 |
1.75 |
1.375 |
| 2405-08-04 |
1/2 |
3/4-16 |
1/4-18 |
0.391 |
1.55 |
0.875 |
| 2405-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
1.56 |
0.875 |
| 2405-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
1.79 |
1.125 |
| 2405-08-12 |
1/2 |
3/4-16 |
3/4-14 |
0.391 |
1.85 |
1.375 |
| 2405-08-16 |
1/2 |
3/4-16 |
1-11 1/2 |
0.391 |
2.10 |
1.625 |
| 2405-10-04 |
5/8 |
7/8-14 |
1/4-18 |
0.484 |
1.66 |
1.125 |
| 2405-10-06 |
5/8 |
7/8-14 |
3/8-18 |
0.484 |
1.67 |
1.125 |
| 2405-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
1.89 |
1.125 |
| 2405-10-12 |
5/8 |
7/8-14 |
3/4-14 |
0.484 |
1.95 |
1.375 |
| 2405-10-16 |
5/8 |
7/8-14 |
1-11 1/2 |
0.484 |
2.20 |
1.625 |
| 2405-12-08 |
3/4 |
1-1/16-12 |
1/2-14 |
0.609 |
2.05 |
1.375 |
| 2405-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
2.06 |
1.375 |
| 2405-12-16 |
3/4 |
1-1/16-12 |
1-11 1/2 |
0.609 |
2.30 |
1.625 |
| 2405-14-08 |
7/8 |
1-3/16-12 |
1/2-14 |
0.719 |
2.05 |
1.375 |
| 2405-14-12 |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
2.06 |
1.375 |
| 2405-16-12 |
1 |
1--5/16-12 |
3/4-14 |
0.844 |
2.12 |
1.625 |
| 2405-16-16 |
1 |
1-5/16-12 |
1-11 1/2 |
0.844 |
2.35 |
1.625 |
| 2405-16-20 |
1 |
1-5/8-12 |
1-1/4-11 1/2 |
0.844 |
2.44 |
2.000 |
| 2405-20-16 |
1-1/4 |
1-5/8-12 |
1-11 1/2 |
1.078 |
2.47 |
2.000 |
| 2405-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11 1/2 |
1.078 |
2.49 |
2.000 |
| 2405-20-24 |
1-1/4 |
1-5/8-12 |
1-1/2-11 1/2 |
1.078 |
2.49 |
2.375 |
| 2405-24-16 |
1-1/2 |
1-7/8-12 |
1-11 1/2 |
1.312 |
2.60 |
2.375 |
| 2405-24-20 |
1-1/2 |
1-7/8-12 |
1-1/4-11 1/2 |
1.312 |
2.62 |
2.375 |
| 2405-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11 1/2 |
1.312 |
2.62 |
2.375 |
| 2405-24-32 |
1-1/2 |
1-7/8-12 |
2-11-1/2 |
1.312 |
2.72 |
2.875 |
| 2405-32-24 |
2 |
2-1/2-12 |
1-1/2-11 1/2 |
1.781 |
2.95 |
2.875 |
| 2405-32-32 |
2 |
2-1/2-12 |
2-11 1/2 |
1.781 |
2.97 |
2.875 |
