6504 Series

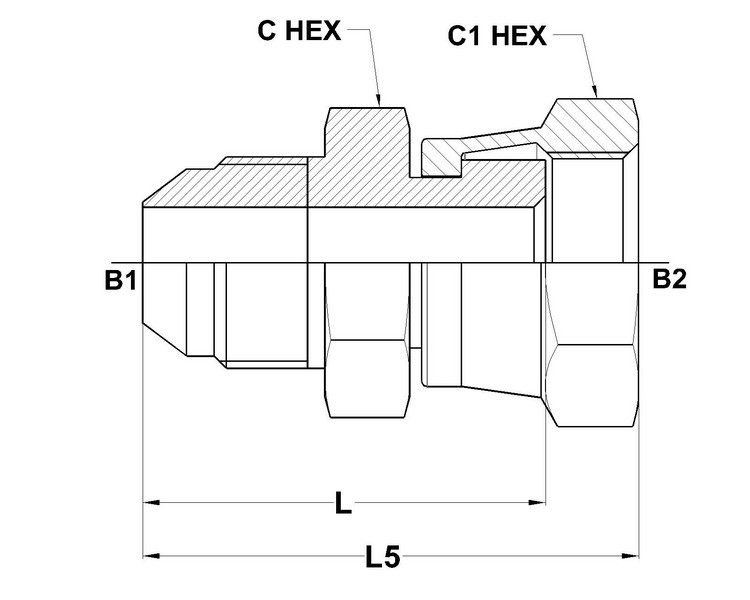

| PART NO.SIZE |
TUBE.O.D. |
B1 SAE 37 |
B2 SAE 37 |
B1 DRILL |
B2 DRILL |
L LGTH |
L5 LGTH |
C1 HEX |
C HEX |
| 6504-04-04 |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.16 |
1.51 |
0.563 |
0.500 |
| 6504-05-05 |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
1.19 |
1.57 |
0.625 |
0.562 |
| 6504-06-06 |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.27 |
1.65 |
0.688 |
0.625 |
| 6504-06-08 |
1/2 |
9/16-18 |
3/4-16 |
0.297 |
0.391 |
1.32 |
1.97 |
0.875 |
0.812 |
| 6504-08-08 |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.42 |
1.85 |
0.875 |
0.812 |
| 6504-08-10 |
5/8 |
3/4-16 |
7/8-14 |
0.391 |
0.484 |
1.45 |
1.95 |
1.000 |
0.938 |
| 6504-10-10 |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.61 |
2.11 |
1.000 |
0.938 |
| 6504-12-12 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.82 |
2.39 |
1.250 |
1.125 |
| 6504-16-16 |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
1.93 |
2.53 |
1.500 |
1.375 |
| 6504-20-20 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
2.10 |
2.82 |
2.000 |
1.688 |
| 6504-24-24 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
2.37 |
3.32 |
2.250 |
2.000 |
