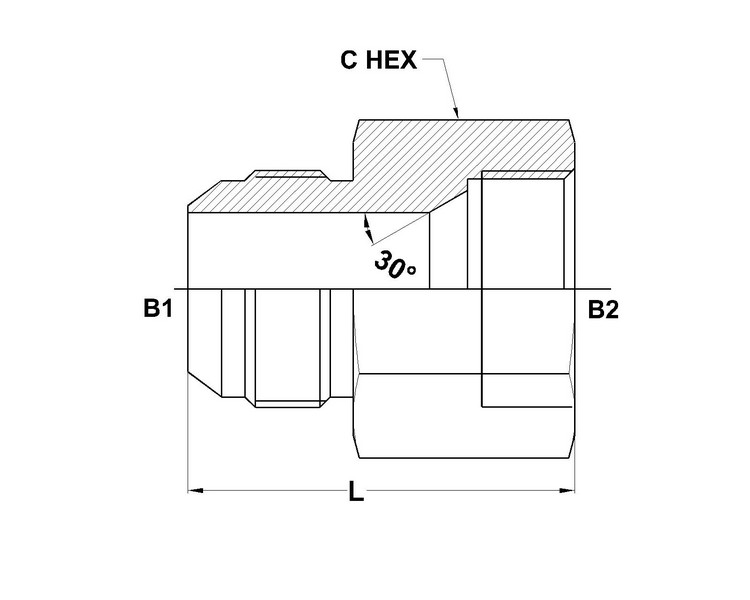

| PART NO.SIZE | TUBE O.D | B1 JIC | B2 JIS BSPP | B1 DRILL | L LGTH | C HEX |
|---|---|---|---|---|---|---|
| 7008-F-04-04 | 1/4 | 7/16-20 | 1/4-19 | 4.4 | 33.0 | 19.0 |
| 7008-F-06-06 | 3/8 | 9/16-18 | 3/8-19 | 7.5 | 35.1 | 22.0 |
| 7008-F-08-08 | 1/2 | 3/4-16 | 1/2-14 | 9.9 | 39.7 | 27.0 |
| 7008-F-10-10 | 5/8 | 7/8-14 | 5/8-14 | 12.3 | 44.3 | 30.0 |
| 7008-F-12-12 | 3/4 | 1-1/16-12 | 3/4-14 | 15.5 | 49.9 | 32.0 |
| 7008-F-16-16 | 1 | 1-5/16-12 | 1-11 | 21.5 | 54.1 | 41.0 |
