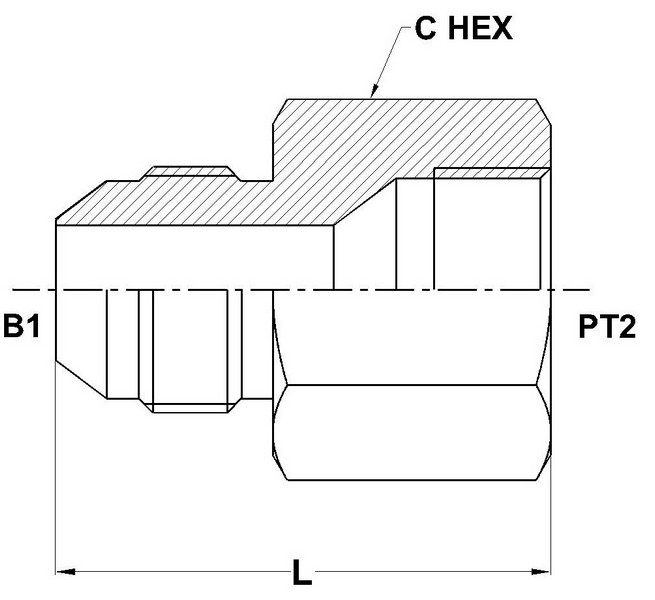

7003 Series
| PART NO.SIZE |
TUBE O.D. |
B1 JIC |
PT2 BSPP |
B1 DRILL |
L LGTH |
C HEX |
| 7003-04-02 |
1/4 |
7/16-20 |
1/8-28 |
4.4 |
30.0 |
14.0 |
| 7003-04-04 |
1/4 |
7/16-20 |
1/4-19 |
4.4 |
33.0 |
19.0 |
| 7003-04-06 |
1/4 |
7/16-20 |
3/8-19 |
4.4 |
35.0 |
22.0 |
| 7003-06-04 |
3/8 |
9/16-18 |
1/4-19 |
7.5 |
33.1 |
19.0 |
| 7003-06-06 |
3/8 |
9/16-18 |
3/8-19 |
7.5 |
35.1 |
22.0 |
| 7003-06-08 |
3/8 |
9/16-18 |
1/2-14 |
7.5 |
37.1 |
27.0 |
| 7003-08-06 |
1/2 |
3/4-16 |
3/8-19 |
9.9 |
37.7 |
22.0 |
| 7003-08-08 |
1/2 |
3/4-16 |
1/2-14 |
9.9 |
39.7 |
27.0 |
| 7003-08-10 |
1/2 |
3/4-16 |
5/8-14 |
9.9 |
41.7 |
30.0 |
| 7003-08-12 |
1/2 |
3/4-16 |
3/4-14 |
9.9 |
44.7 |
32.0 |
| 7003-10-08 |
5/8 |
7/8-14 |
1/2-14 |
12.3 |
42.3 |
27.0 |
| 7003-10-10 |
5/8 |
7/8-14 |
5/8-14 |
12.3 |
44.3 |
30.0 |
| 7003-10-12 |
5/8 |
7/8-14 |
3/4-14 |
12.3 |
47.3 |
32.0 |
| 7003-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
15.5 |
49.9 |
32.0 |
| 7003-12-16 |
3/4 |
1-1/16-12 |
1-11 |
15.5 |
52.9 |
41.0 |
| 7003-16-12 |
1 |
1-5/16-12 |
3/4-14 |
21.5 |
34.1 |
36.0 |
| 7003-16-16 |
1 |
1-5/16-12 |
1-11 |
21.5 |
54.1 |
41.0 |
| 7003-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11 |
27.5 |
60.3 |
50.0 |
| 7003-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11 |
33.0 |
68.5 |
55.0 |
| 7003-32-32 |
2 |
2-1/2-12 |
2-11 |
45.0 |
79.9 |
70.0 |
