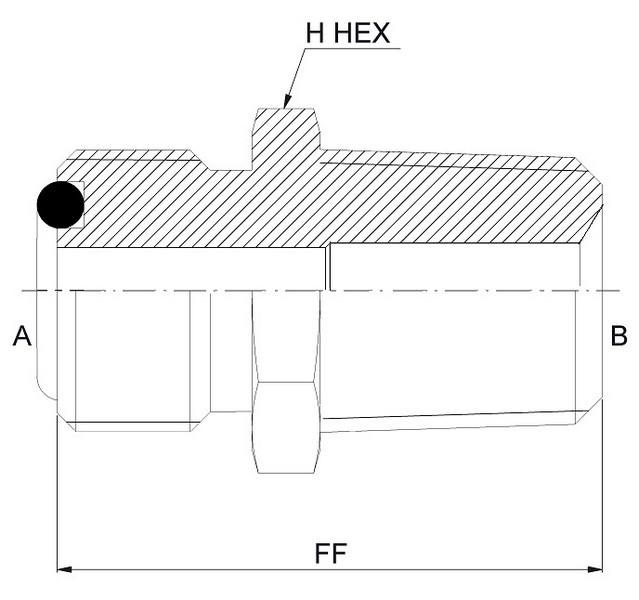

FS2404 Series
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B THREAD |
A DRILL |
B DRILL |
FF LGTH |
H HEX |
| FS2404-04-02 |
1/4 |
9/16-18 |
1/8-27 |
0.172 |
0.188 |
1.08 |
0.625 |
| FS2404-04-04 |
1/4 |
9/16-18 |
1/4-18 |
0.172 |
0.281 |
1.26 |
0.625 |
| FS2404-04-06 |
1/4 |
9/16-18 |
3/8-18 |
0.172 |
0.406 |
1.26 |
0.750 |
| FS2404-04-08 |
1/4 |
9/16-18 |
1/2-14 |
0.172 |
0.531 |
1.50 |
0.938 |
| FS2404-06-02 |
3/8 |
11/16-16 |
1/8-27 |
0.264 |
0.188 |
1.16 |
0.750 |
| FS2404-06-04 |
3/8 |
11/16-16 |
1/4-18 |
0.264 |
0.281 |
1.34 |
0.750 |
| FS2404-06-06 |
3/8 |
11/16-16 |
3/8-18 |
0.264 |
0.406 |
1.34 |
0.750 |
| FS2404-06-08 |
3/8 |
11/16-16 |
1/2-14 |
0.264 |
0.531 |
1.55 |
0.938 |
| FS2404-08-04 |
1/2 |
13/16-16 |
1/4-18 |
0.378 |
0.281 |
1.45 |
0.875 |
| FS2404-08-06 |
1/2 |
13/16-16 |
3/8-18 |
0.378 |
0.406 |
1.45 |
0.875 |
| FS2404-08-08 |
1/2 |
13/16-16 |
1/2-14 |
0.378 |
0.531 |
1.64 |
0.938 |
| FS2404-08-12 |
1/2 |
13/16-16 |
3/4-14 |
0.378 |
0.179 |
1.69 |
1.250 |
| FS2404-08-16 |
1/2 |
13/16-16 |
1-11-1/2 |
0.378 |
0.938 |
1.80 |
1.375 |
| FS2404-10-08 |
5/8 |
1-14 |
1/2-14 |
0.484 |
0.531 |
1.82 |
1.062 |
| FS2404-10-12 |
5/8 |
1-14 |
3/4-14 |
0.484 |
0.719 |
1.82 |
1.250 |
| FS2404-10-16 |
5/8 |
1-14 |
1-11-1/2 |
0.484 |
0.938 |
1.95 |
1.375 |
| FS2404-12-08 |
3/4 |
1-3/16-12 |
1/2-14 |
0.609 |
0.531 |
1.94 |
1.250 |
| FS2404-12-12 |
3/4 |
1-3/16-12 |
3/4-14 |
0.609 |
0.719 |
1.94 |
1.250 |
| FS2404-12-16 |
3/4 |
1-3/16-12 |
1-11-1/2 |
0.609 |
0.938 |
2.06 |
1.312 |
| FS2404-16-12 |
1 |
1-7/16-12 |
3/4-14 |
0.811 |
0.719 |
2.00 |
1.500 |
| FS2404-16-16 |
1 |
1-7/16-12 |
1-11-1/2 |
0.811 |
0.938 |
2.19 |
1.500 |
| FS2404-16-20 |
1 |
1-7/16-12 |
1-1/4-11-1/2 |
0.811 |
1.250 |
2.30 |
1.688 |
| FS2404-16-24 |
1 |
1-7/16-12 |
1-1/2-11-1/2 |
0.811 |
1.500 |
2.40 |
2.000 |
| FS2404-20-16 |
1-1/4 |
1-11/16-12 |
1-11-1/2 |
1.024 |
0.938 |
2.27 |
1.750 |
| FS2404-20-20 |
1-1/4 |
1-11/16-12 |
1-1/4-11-1/2 |
1.024 |
1.250 |
2.30 |
1.750 |
| FS2404-24-24 |
1-1/2 |
2-12 |
1-1/2-11-1/2 |
1.260 |
1.500 |
2.40 |
2.125 |
