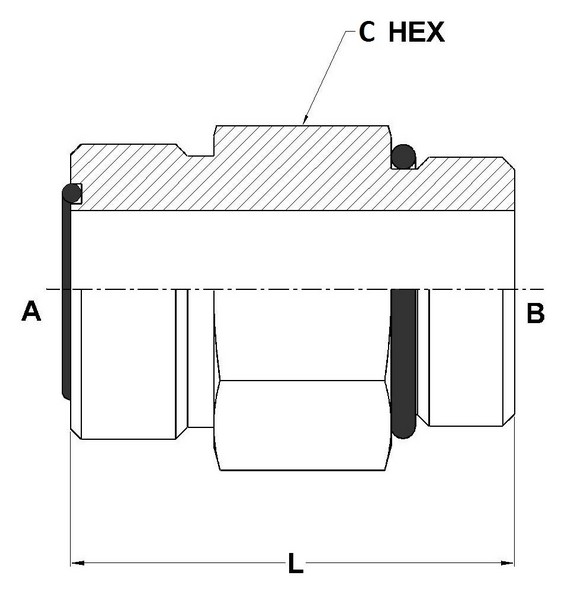

| PART NO.SIZE | TUBE O.D. | A THREAD | B THREAD | A DRILL | B DRILL | L LGTH | C HEX |
|---|---|---|---|---|---|---|---|
| FS7640-04-10-O | 6 | 9/16-18 | M10 X 1 | 4.5 | 3.0 | 27.0 | 17.0 |
| FS7640-04-12-O | 6 | 9/16-18 | M12 X 1.5 | 4.5 | 4.0 | 28.5 | 17.0 |
| FS7640-04-14-O | 6 | 9/16-18 | M14 X 1.5 | 4.5 | 6.0 | 29.5 | 19.0 |
| FS7640-06-12-O | 10 | 11/16-16 | M12 X 1.5 | 6.5 | 4.0 | 32.0 | 19.0 |
| FS7640-06-14-O | 10 | 11/16-16 | M14 X 1.5 | 6.5 | 6.0 | 32.0 | 19.0 |
| FS7640-06-16-O | 10 | 11/16-16 | M16 X 1.5 | 6.5 | 7.0 | 33.5 | 22.0 |
| FS7640-06-18-O | 10 | 11/16-16 | M18 X 1.5 | 6.5 | 9.0 | 36.0 | 24.0 |
| FS7640-06-22-O | 10 | 11/16-16 | M22 X 1.5 | 6.5 | 12.0 | 37.5 | 27.0 |
| FS7640-08-14-O | 12 | 13/16-16 | M14 X 1.5 | 9.5 | 6.0 | 35.0 | 22.0 |
| FS7640-08-16-O | 12 | 13/16-16 | M16 X 1.5 | 9.5 | 7.0 | 36.5 | 22.0 |
| FS7640-08-18-O | 12 | 13/16-16 | M18 X 1.5 | 9.5 | 9.0 | 38.0 | 24.0 |
| FS7640-08-22-O | 12 | 13/16-16 | M22 X 1.5 | 9.5 | 12.0 | 39.5 | 27.0 |
| FS7640-08-26-O | 12 | 13/16-16 | M26 X 1.5 | 9.5 | 12.0 | 42.3 | 32.0 |
| FS7640-08-27-O | 12 | 13/16-16 | M27 X 2.0 | 9.5 | 15.0 | 44.5 | 32.0 |
| FS7640-08-33-O | 12 | 13/16-16 | M33 X 2.0 | 9.5 | 20.0 | 47.5 | 41.0 |
| FS7640-10-18-O | 16 | 1-14 | M18 X 1.5 | 12.5 | 9.0 | 41.0 | 27.0 |
| FS7640-10-22-O | 16 | 1-14 | M22 X 1.5 | 12.5 | 12.0 | 42.0 | 27.0 |
| FS7640-10-27-O | 16 | 1-14 | M27 X 2.0 | 12.5 | 15.0 | 47.0 | 32.0 |
| FS7640-10-33-O | 16 | 1-14 | M33 X 2.0 | 12.5 | 20.0 | 50.0 | 41.0 |
| FS7640-12-22-O | 20 | 1-3/16-12 | M22 X 1.5 | 15.5 | 12.0 | 45.0 | 32.0 |
| FS7640-12-27-O | 20 | 1-3/16-12 | M27 X 2.0 | 15.5 | 15.0 | 48.5 | 32.0 |
| FS7640-12-33-O | 20 | 1-3/16-12 | M33 X 2.0 | 15.5 | 20.0 | 51.5 | 41.0 |
| FS7640-16-33-O | 25 | 1-7/16-12 | M33 X 2.0 | 20.5 | 20.0 | 52.0 | 41.0 |
| FS7640-20-38-O | 30 | 1-11/16-12 | M38 X 2.0 | 26.0 | 22.0 | 54.5 | 50.0 |
| FS7640-20-42-O | 30 | 1-11/16-12 | M42 X 2.0 | 26.0 | 26.0 | 54.5 | 50.0 |
