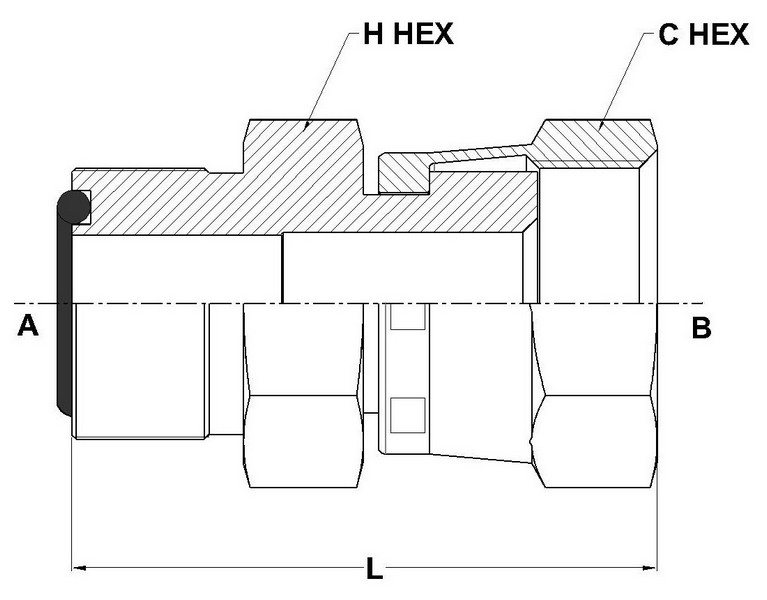

FS6402 Series
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B THREAD |
A DRILL |
B DRILL |
L LGTH |
C HEX |
H HEX |
| FS6402-04-04-O |
1/4 |
9/16-18 |
7/16-20 |
0.172 |
0.172 |
1.40 |
0.562 |
0.625 |
| FS6402-06-06-O |
3/8 |
11/16-16 |
9/16-18 |
0.264 |
0.297 |
1.58 |
0.688 |
0.750 |
| FS6402-08-08-O |
1/2 |
13/16-16 |
3/4-16 |
0.378 |
0.391 |
1.79 |
0.875 |
0.875 |
| FS6402-10-10-O |
5/8 |
1-14 |
7/8-14 |
0.484 |
0.484 |
2.08 |
1.000 |
1.062 |
| FS6402-12-12-O |
3/4 |
1-3/16-12 |
1-1/16-12 |
0.609 |
0.609 |
2.30 |
1.250 |
1.250 |
| FS6402-16-16-O |
1 |
1-7/16-12 |
1-5/16-12 |
0.811 |
0.844 |
2.45 |
1.500 |
1.500 |
| FS6402-20-20-O |
1-1/4 |
1-11/16-12 |
1-5/8-12 |
1.024 |
1.078 |
2.60 |
2.000 |
1.750 |
