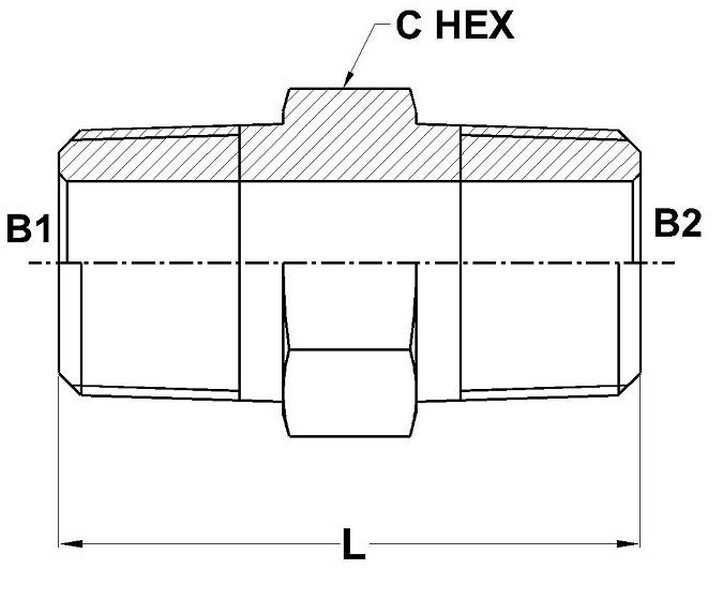

9000 Series
| PART NO.SIZE |
B1 BSPT |
B2 BSPT |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 9000-02-02 |
1/8-28 |
1/8-28 |
4.8 |
4.8 |
26.0 |
11.0 |
| 9000-04-02 |
1/4-19 |
1/8-28 |
7.0 |
4.8 |
31.3 |
14.0 |
| 9000-04-04 |
1/4-19 |
1/4-19 |
7.0 |
7.0 |
35.8 |
14.0 |
| 9000-06-02 |
3/8-19 |
1/8-28 |
10.3 |
4.8 |
31.3 |
19.0 |
| 9000-06-04 |
3/8-19 |
1/4-19 |
10.3 |
7.0 |
35.8 |
19.0 |
| 9000-06-06 |
3/8-19 |
3/8-19 |
10.3 |
10.3 |
35.8 |
19.0 |
| 9000-08-04 |
1//2-14 |
1/4-19 |
13.5 |
7.0 |
42.1 |
22.0 |
| 9000-08-06 |
1/2-14 |
3/8-19 |
13.5 |
10.3 |
42.1 |
22.0 |
| 9000-08-08 |
1/2-14 |
1/2-14 |
13.5 |
13.5 |
46.9 |
22.0 |
| 9000-10-10 |
5/8 - 14 |
5/8 -14 |
15.0 |
15.0 |
53.7 |
26.0 |
| 9000-12-08 |
3/4-14 |
1/2-14 |
18.0 |
13.5 |
48.7 |
27.0 |
| 9000-12-12 |
3/4-14 |
3/4-14 |
18.0 |
18.0 |
48.7 |
27.0 |
| 9000-16-12 |
1-11 |
3/4-14 |
23.8 |
18.0 |
53.6 |
36.0 |
| 9000-16-16 |
1-11 |
1-11 |
23.8 |
23.8 |
58.5 |
36.0 |
| 9000-20-20 |
1-1/4-11 |
1-1/4-11 |
31.7 |
31.7 |
61.9 |
42.0 |
| 9000-24-24 |
1-1/2-11 |
1-1/2-11 |
38.0 |
38.0 |
65.3 |
50.0 |
| 9000-32-32 |
2-11 |
2-11 |
49.0 |
49.0 |
70.7 |
65.0 |
