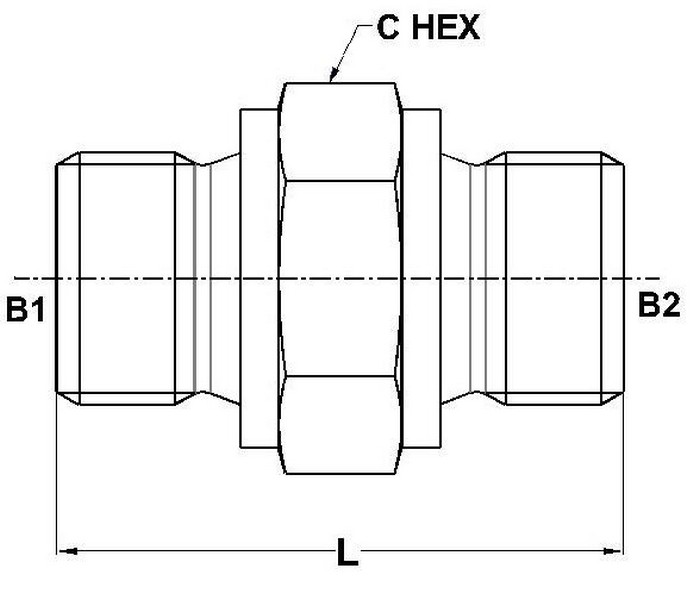

9022 Series
| PART NO.SIZE |
B1 BSPP |
B2 BSPP |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 9022-02-02 |
1/8-28 |
1/8-28 |
3.5 |
3.5 |
21.0 |
14.0 |
| 9022-04-02 |
1/4-19 |
1/8-28 |
4.7 |
3.5 |
26.0 |
19.0 |
| 9022-04-04 |
1/4-19 |
1/4-19 |
4.7 |
4.7 |
29.0 |
19.0 |
| 9022-06-02 |
3/8-19 |
1/8-28 |
7.9 |
3.5 |
28.0 |
22.0 |
| 9022-06-04 |
3/8-19 |
1/4-19 |
7.9 |
4.7 |
31.0 |
22.0 |
| 9022-06-06 |
3/8-19 |
3/8-19 |
7.9 |
7.9 |
32.0 |
22.0 |
| 9022-08-02 |
1/2-14 |
1/8-28 |
11.1 |
3.5 |
32.0 |
27.0 |
| 9022-08-04 |
1/2-14 |
1/4-19 |
11.1 |
4.7 |
35.0 |
27.0 |
| 9022-08-06 |
1/2-14 |
3/8-19 |
11.1 |
7.9 |
36.0 |
27.0 |
| 9022-08-08 |
1/2-14 |
1/2-14 |
11.1 |
11.1 |
38.0 |
27.0 |
| 9022-10-04 |
5/8-14 |
1/4-19 |
14.3 |
4.7 |
39.0 |
30.0 |
| 9022-10-06 |
5/8-14 |
3/8-19 |
14.3 |
7.9 |
40.0 |
30.0 |
| 9022-10-08 |
5/8-14 |
1/2-14 |
14.3 |
11.1 |
42.0 |
30.0 |
| 9022-10-10 |
5/8-14 |
5/8-14 |
14.3 |
14.3 |
44.0 |
30.0 |
| 9022-12-06 |
3/4-14 |
3/8-19 |
16.7 |
7.9 |
40.0 |
32.0 |
| 9022-12-08 |
3/4-14 |
1/2-14 |
16.7 |
11.1 |
42.0 |
32.0 |
| 9022-12-10 |
3/4-14 |
5/8-14 |
16.7 |
14.3 |
44.0 |
32.0 |
| 9022-12-12 |
3/4-14 |
3/4-14 |
16.7 |
16.7 |
44.0 |
32.0 |
| 9022-16-08 |
1-11 |
1/2-14 |
22.2 |
11.1 |
48.0 |
41.0 |
| 9022-16-10 |
1-11 |
5/8-14 |
22.2 |
14.3 |
50.0 |
41.0 |
| 9022-16-12 |
1-11 |
3/4-14 |
22.2 |
16.7 |
50.0 |
41.0 |
| 9022-16-16 |
1-11 |
1-11 |
22.2 |
22.2 |
53.0 |
41.0 |
| 9022-20-12 |
1-1/4-11 |
3/4-14 |
28.6 |
16.7 |
55.0 |
50.0 |
| 9022-20-16 |
1-1/4-11 |
1-11 |
28.6 |
22.2 |
58.0 |
50.0 |
| 9022-20-20 |
1-1/4-11 |
1-1/4-11 |
28.6 |
28.6 |
59.0 |
50.0 |
| 9022-24-16 |
1-1/2-11 |
1-11 |
33.3 |
22.2 |
64.0 |
55.0 |
| 9022-24-20 |
1-1/2-11 |
1-1/4-11 |
33.3 |
28.6 |
65.0 |
55.0 |
| 9022-24-24 |
1-1/2-11 |
1-1/2-11 |
33.3 |
33.3 |
67.0 |
55.0 |
| 9022-32-16 |
2-11 |
1-11 |
46.0 |
22.2 |
73.0 |
70.0 |
| 9022-32-20 |
2-11 |
1-1/4-11 |
46.0 |
28.6 |
74.0 |
70.0 |
| 9022-32-24 |
2-11 |
1-1/2-11 |
46.0 |
33.3 |
76.0 |
70.0 |
| 9022-32-32 |
2-11 |
2-11 |
46.0 |
46.0 |
79.0 |
70.0 |
