9024 Series
| PART NO.SIZE |
B1 BSPP |
B2 BSPP |
B1 DRILL |
B2 DRILL |

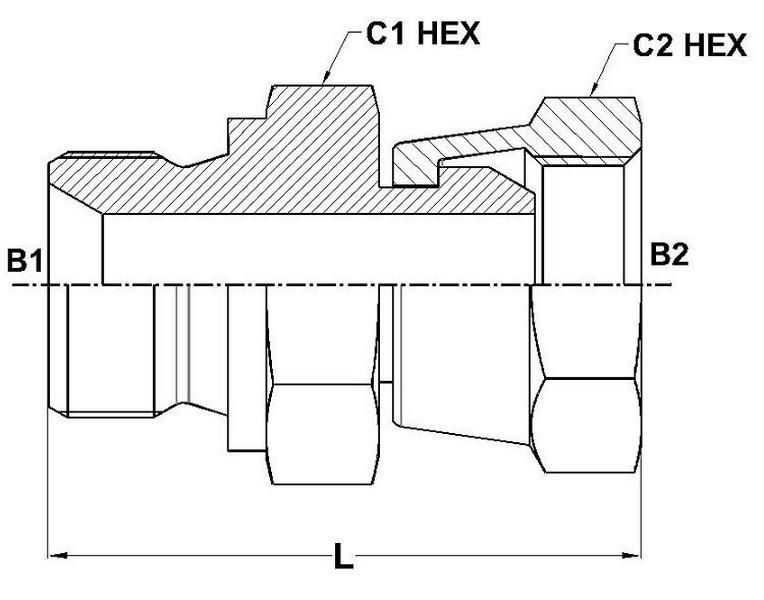

L LGTH |
C1 HEX |
C2 HEX |
| 9024-02-02 |
1/8-28 |
1/8-28 |
3.5 |
3.5 |
29.0 |
14.0 |
3.5 |
| 9024-04-02 |
1/4-19 |
1/8-28 |
4.7 |
3.5 |
34.0 |
19.0 |
3.5 |
| 9024-04-04 |
1/4-19 |
1/4-19 |
4.7 |
4.7 |
35.0 |
19.0 |
4.7 |
| 9024-04-06 |
1/4-19 |
3/8-19 |
4.7 |
7.9 |
37.0 |
19.0 |
7.9 |
| 9024-06-04 |
3/8-19 |
1/4-19 |
7.9 |
4.7 |
37.0 |
22.0 |
4.7 |
| 9024-06-06 |
3/8-19 |
3/8-19 |
7.9 |
7.9 |
39.0 |
22.0 |
7.9 |
| 9024-08-06 |
1/2-14 |
3/8-19 |
11.1 |
7.9 |
43.0 |
27.0 |
7.9 |
| 9024-08-08 |
1/2-14 |
1/2-14 |
11.1 |
11.1 |
46.0 |
27.0 |
11.1 |
| 9024-08-12 |
1/2-14 |
3/4-14 |
11.1 |
16.7 |
49.0 |
27.0 |
16.7 |
| 9024-08-16 |
1/2-14 |
1-11 |
11.1 |
22.2 |
61.0 |
33.0 |
22.2 |
| 9024-10-10 |
5/8-14 |
5/8-14 |
14.3 |
14.3 |
53.0 |
30.0 |
14.3 |
| 9024-12-08 |
3/4-14 |
1/2-14 |
16.7 |
11.1 |
50.0 |
32.0 |
11.1 |
| 9024-12-12 |
3/4-14 |
3/4-14 |
16.7 |
16.7 |
53.0 |
32.0 |
16.7 |
| 9024-12-16 |
3/4-14 |
1-11 |
16.7 |
22.2 |
63.0 |
33.0 |
22.2 |
| 9024-16-16 |
1-11 |
1-11 |
22.2 |
22.2 |
66.0 |
41.0 |
22.2 |
| 9024-16-20 |
1-11 |
1-1/4-11 |
22.2 |
28.6 |
67.0 |
41.0 |
28.6 |
| 9024-20-20 |
1-1/4-11 |
1-1/4-11 |
28.6 |
28.6 |
72.0 |
50.0 |
28.6 |
| 9024-24-24 |
1-1/2-11 |
1-1/2-11 |
33.3 |
33.3 |
82.0 |
55.0 |
33.3 |
