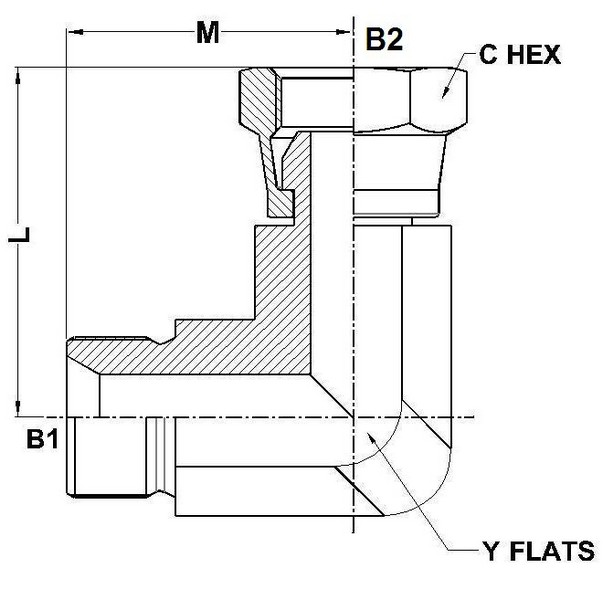

9224 Series
| PART NO.SIZE |
B1 BSPP |
B2 BSPP |
B1 DRILL |
B2 DRILL |
M LGTH |
L LGTH |
C HEX |
Y FLATS |
| 9224-02-02-FG |
1/8-28 |
1/8-28 |
3.5 |
3.5 |
16.6 |
22.0 |
14.0 |
11.0 |
| 9224-04-04-FG |
1/4-19 |
1/4-19 |
4.7 |
4.7 |
27.8 |
31.2 |
19.0 |
14.0 |
| 9224-06-06-FG |
3/8-19 |
3/8-19 |
7.9 |
7.9 |
31.7 |
36.2 |
22.0 |
19.0 |
| 9224-08-08-FG |
1/2-14 |
1/2-14 |
11.1 |
11.1 |
37.0 |
41.0 |
27.0 |
22.0 |
| 9224-12-12-FG |
3/4-14 |
3/4-14 |
16.7 |
16.7 |
41.6 |
45.3 |
32.0 |
27.0 |
| 9224-16-16-FG |
1-11 |
1-11 |
22.2 |
22.2 |
49.7 |
53.9 |
41.0 |
33.0 |
| 9224-20-20-FG |
1-1/4-11 |
1-1/4-11 |
28.6 |
28.6 |
54.4 |
60.0 |
50.0 |
41.0 |
| 9224-24-24-FG |
1-1/2-11 |
1-1/2-11 |
33.3 |
33.3 |
53.7 |
63.3 |
55.0 |
48.0 |
