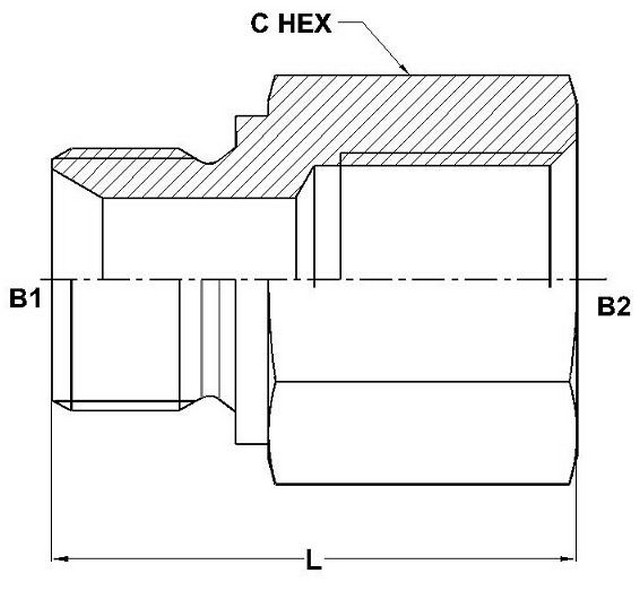

9023 Series
| PART NO.SIZE |
B1 BSPP |
B2 BSPP |
B1 DRILL |
L LGTH |
C HEX |
| 9023-04-02 |
1/4-19 |
11/8-28 |
4.7 |
18.0 |
19.0 |
| 9023-04-04 |
1/4-19 |
1/4-19 |
4.7 |
18.0 |
19.0 |
| 9023-04-06 |
1/4-19 |
3/8-19 |
4.7 |
32.0 |
22.0 |
| 9023-06-02 |
3/8-19 |
1/8-28 |
7.9 |
20.0 |
22.0 |
| 9023-06-04 |
3/8-19 |
1/4-19 |
7.9 |
20.0 |
22.0 |
| 9023-06-06 |
3/8-19 |
3/8-19 |
7.9 |
20.0 |
22.0 |
| 9023-06-08 |
3/8-19 |
1/2-14 |
7.9 |
35.0 |
27.0 |
| 9023-08-04 |
1/2-14 |
1/4-19 |
11.1 |
24.0 |
27.0 |
| 9023-08-06 |
1/2-14 |
3/8-19 |
11.1 |
24.0 |
27.0 |
| 9023-08-08 |
1/2-14 |
1/2-14 |
11.1 |
24.0 |
27.0 |
| 9023-08-12 |
1/2-14 |
3/4-14 |
11.1 |
42.0 |
32.0 |
| 9023-08-16 |
1/2-14 |
1-11 |
11.1 |
45.0 |
41.0 |
| 9023-12-04 |
3/4-14 |
1/4-19 |
16.7 |
28.0 |
32.0 |
| 9023-12-06 |
3/4-14 |
3/8-19 |
16.7 |
28.0 |
32.0 |
| 9023-12-08 |
3/4-14 |
1/2-14 |
16.7 |
28.0 |
32.0 |
| 9023-12-12 |
3/4-14 |
3/4-14 |
16.7 |
28.0 |
32.0 |
| 9023-12-16 |
3/4-14 |
1-11 |
16.7 |
47.0 |
41.0 |
| 9023-16-08 |
1-11 |
1/2-14 |
22.2 |
34.0 |
41.0 |
| 9023-16-12 |
1-11 |
3/4-14 |
22.2 |
34.0 |
41.0 |
| 9023-16-20 |
1-11 |
1-1/4-11 |
22.2 |
55.0 |
50.0 |
| 9023-20-12 |
1-1/4-11 |
3/4-14 |
28.6 |
39.0 |
50.0 |
| 9023-20-16 |
1-1/4-11 |
1-11 |
28.6 |
39.0 |
50.0 |
| 9023-24-16 |
1-1/2-11 |
1-11 |
33.3 |
45.0 |
55.0 |
| 9023-24-20 |
1-1/2-11 |
1-1/4-11 |
33.3 |
45.0 |
55.0 |
| 9023-32-16 |
2-11 |
1-11 |
46.0 |
54.0 |
70.0 |
