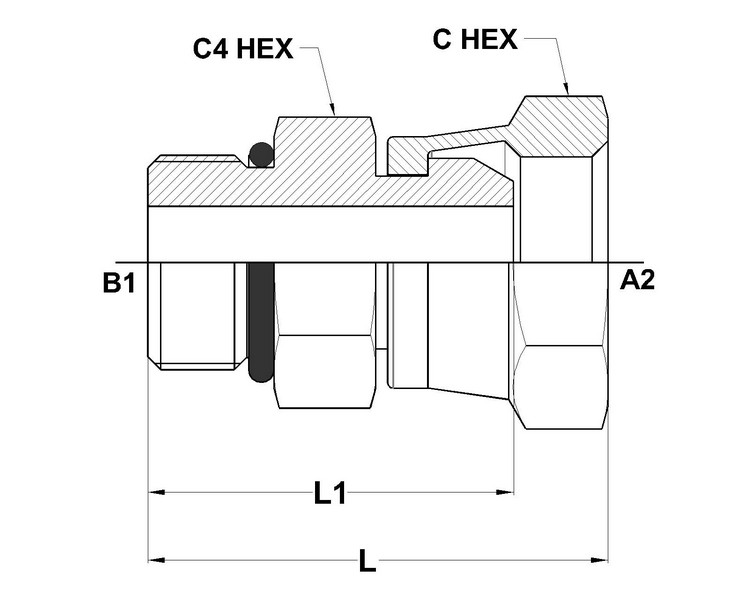

6900-O Series SAE# 140157
| PART NO.SIZE |
TUBE O.D. |
B1 SAE ORB |
A2 NPSM |
B1 DRILL |
A2 DRILL |
L1 LGTH |
L LGTH |
C HEX |
C4 HEX |
| 6900-04-02-O |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
0.150 |
1.00 |
1.14 |
0.562 |
0.562 |
| 6900-04-04-O |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
0.220 |
1.11 |
1.30 |
0.688 |
0.562 |
| 6900-04-06-O |
1/4 |
7/16-20 |
3/8-18 |
0.172 |
0.340 |
1.15 |
1.36 |
0.875 |
0.688 |
| 6900-04-08-O |
1/4 |
7/16-20 |
1/2-14 |
0.172 |
0.460 |
1.21 |
1.49 |
1.000 |
0.812 |
| 6900-05-04-O |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
0.220 |
1.09 |
1.28 |
0.688 |
0.625 |
| 6900-05-08-O |
5/16 |
1/2-20 |
1/2-14 |
0.234 |
0.460 |
1.30 |
1.58 |
1.000 |
0.812 |
| 6900-06-04-O |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
0.220 |
1.07 |
1.26 |
0.688 |
0.688 |
| 6900-06-06-O |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
0.340 |
1.25 |
1.46 |
0.875 |
0.875 |
| 6900-06-08-O |
3/8 |
9/16-18 |
1/2-14 |
0.297 |
0.460 |
1.29 |
1.57 |
1.000 |
0.812 |
| 6900-08-04-O |
1/2 |
3/4-16 |
1/4-18 |
0.391 |
0.220 |
1.17 |
1.36 |
0.688 |
0.875 |
| 6900-08-06-O |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
0.340 |
1.19 |
1.40 |
0.875 |
0.875 |
| 6900-08-08-O |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
0.460 |
1.27 |
1.55 |
1.000 |
0.875 |
| 6900-08-12-O |
1/2 |
3/4-16 |
3/4-14 |
0.391 |
0.635 |
1.41 |
1.76 |
1.250 |
1.000 |
| 6900-10-06-O |
5/8 |
7/8-14 |
3/8-18 |
0.484 |
0.340 |
1.26 |
1.47 |
0.875 |
1.000 |
| 6900-10-08-O |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
0.460 |
1.33 |
1.61 |
1.000 |
1.000 |
| 6900-10-12-O |
5/8 |
7/8-14 |
3/4-14 |
0.484 |
0.635 |
1.37 |
1.72 |
1.250 |
1.000 |
| 6900-12-06-O |
3/4 |
1-1/16-12 |
3/8-18 |
0.609 |
0.340 |
1.41 |
1.62 |
0.875 |
1.250 |
| 6900-12-08-O |
3/4 |
1-1/16-12 |
1/2-14 |
0.609 |
0.460 |
1.45 |
1.73 |
1.000 |
1.250 |
| 6900-12-12-O |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
0.635 |
1.60 |
1.95 |
1.250 |
1.250 |
| 6900-12-16-O |
3/4 |
1-1/16-12 |
1-11-1/2 |
0.609 |
0.831 |
1.70 |
2.05 |
1.500 |
1.250 |
| 6900-14-12-O |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
0.635 |
1.61 |
1.96 |
1.250 |
1.375 |
| 6900-14-16-O |
7/8 |
1-3/16-12 |
1-11-1/2 |
0.719 |
0.831 |
1.60 |
1.95 |
1.500 |
1.500 |
| 6900-16-08-O |
1 |
1-5/16-12 |
1/2-14 |
0.844 |
0.460 |
1.62 |
1.90 |
1.000 |
1.500 |
| 6900-16-12-O |
1 |
1-5/16-12 |
3/4-14 |
0.844 |
0.635 |
1.73 |
2.08 |
1.250 |
1.500 |
| 6900-16-16-O |
1 |
1-5/16-12 |
1-11-1/2 |
0.844 |
0.831 |
1.71 |
2.06 |
1.500 |
1.500 |
| 6900-16-20-O |
1 |
1-5/16-12 |
1-1/4-11-1/2 |
0.844 |
1.087 |
1.90 |
2.32 |
1.875 |
1.875 |
| 6900-20-12-O |
1-1/4 |
1-5/8-12 |
3/4-14 |
1.078 |
0.635 |
1.66 |
2.01 |
1.250 |
1.875 |
| 6900-20-16-O |
1-1/4 |
1-5/8-12 |
1-11 -1/2 |
1.078 |
0.831 |
1.79 |
2.14 |
1.500 |
1.875 |
| 6900-20-20-O |
1-1/4 |
1-5/8-12 |
1-1/4-11-1/2 |
1.078 |
1.087 |
1.79 |
2.21 |
1.875 |
1.875 |
| 6900-24-20-O |
1-1/2 |
1-7/8-12 |
1-1/4-11-1/2 |
1.312 |
1.087 |
1.75 |
2.17 |
1.875 |
2.125 |
| 6900-24-24-O |
1-1/2 |
1-7/8-12 |
1-1/2-11-1/2 |
1.312 |
1.317 |
1.95 |
2.37 |
2.125 |
2.125 |
| 6900-32-32-O |
2 |
2-1/2-12 |
2-11-1/2 |
1.781 |
1.802 |
2.00 |
2.42 |
2.625 |
2.750 |
