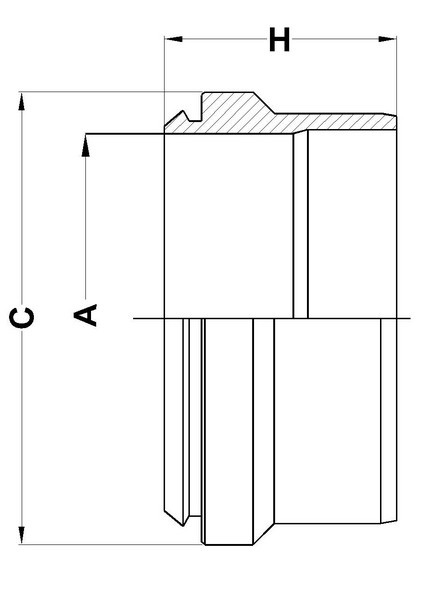

| PART NO.SIZE | TUBE O.D. | A | C | H |
|---|---|---|---|---|
| C0319-02 | 1/8 | 0.130 | 0.237 | 0.288 |
| C0319-03 | 3/16 | 0.193 | 0.307 | 0.329 |
| C0319-04 | 1/4 | 0.255 | 0.367 | 0.363 |
| C0319-05 | 5/16 | 0.318 | 0.430 | 0.367 |
| C0319-06 | 3/8 | 0.380 | 0.492 | 0.393 |
| C0319-08 | 1/2 | 0.505 | 0.663 | 0.429 |
| C0319-10 | 5/8 | 0.631 | 0.780 | 0.442 |
| C0319-12 | 3/4 | 0.756 | 0.925 | 0.475 |
| C0319-14 | 7/8 | 0.881 | 1.040 | 0.475 |
| C0319-16 | 1 | 1.006 | 1.187 | 0.475 |
| C0319-20 | 1-1/4 | 1.260 | 1.446 | 0.475 |
| C0319-24 | 1-1/2 | 1.510 | 1.694 | 0.475 |
| C0319-32 | 2 | 2.014 | 2.210 | 0.509 |
