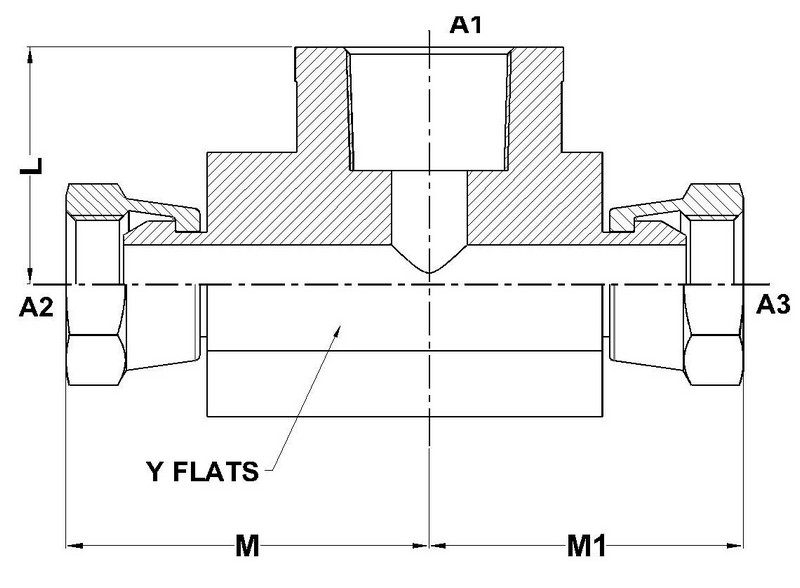

1602 Series
| PART NO SIZE |
A1 NPTF |
A2 NPSM |
A3 NPSM |
A2 DRILL |
A3 DRILL |
L LGTH |
M1 LGTH |
M LGTH |
C HEX |
Y FLATS |
| 1602-02-02-02-FG |
1/8-27 |
1/8-27 |
1/8-27 |
0.150 |
0.150 |
0.66 |
0.80 |
0.94 |
0.562 |
0.562 |
| 1602-04-04-04-FG |
1/4-18 |
1/4-18 |
1/4-18 |
0.220 |
0.220 |
0.88 |
0.99 |
1.18 |
0.688 |
0.750 |
| 1602-06-04-04-FG |
3/8-18 |
1/4-18 |
1/4-18 |
0.220 |
0.220 |
1.02 |
1.04 |
1.23 |
0.875 |
0.875 |
| 1602-06-06-06-FG |
3/8-18 |
3/8-18 |
3/8-18 |
0.340 |
0.340 |
1.02 |
1.06 |
1.27 |
0.875 |
0.875 |
| 1602-08-06-06-FG |
1/2-14 |
3/8-18 |
3/8-18 |
0.340 |
0.340 |
1.23 |
1.17 |
1.38 |
1.000 |
1.062 |
| 1602-08-08-08-FG |
1/2-14 |
1/2-14 |
1/2-14 |
0.460 |
0.460 |
1.23 |
1.24 |
1.52 |
1.000 |
1.062 |
| 1602-08-12-12-FG |
1/2-14 |
3/4-14 |
3/4-14 |
0.635 |
0.635 |
1.23 |
1.24 |
1.59 |
1.000 |
1.062 |
| 1602-12-08-08-FG |
3/4-14 |
1/2-14 |
1/2-14 |
0.460 |
0.460 |
1.36 |
1.47 |
1.75 |
1.250 |
1.312 |
| 1602-12-12-12-FG |
3/4-14 |
3/4-14 |
3/4-14 |
0.635 |
0.635 |
1.36 |
1.47 |
1.82 |
1.250 |
1.312 |
| 1602-16-12-12-FG |
1-11 1/2 |
3/4-14 |
3/4-14 |
0.635 |
0.635 |
1.62 |
1.62 |
1.97 |
1.500 |
1.625 |
| 1602-16-16-16-FG |
1-11 1/2 |
1-11 1/2 |
1-11 1/2 |
0.831 |
0.831 |
1.62 |
1.73 |
2.08 |
1.500 |
1.625 |
| 1602-20-20-20-FG |
1-1/4-11 1/2 |
1-1/4-11 1/2 |
1-1/4-11 1/2 |
1.087 |
1.087 |
1.70 |
1.83 |
2.25 |
1.875 |
1.875 |
