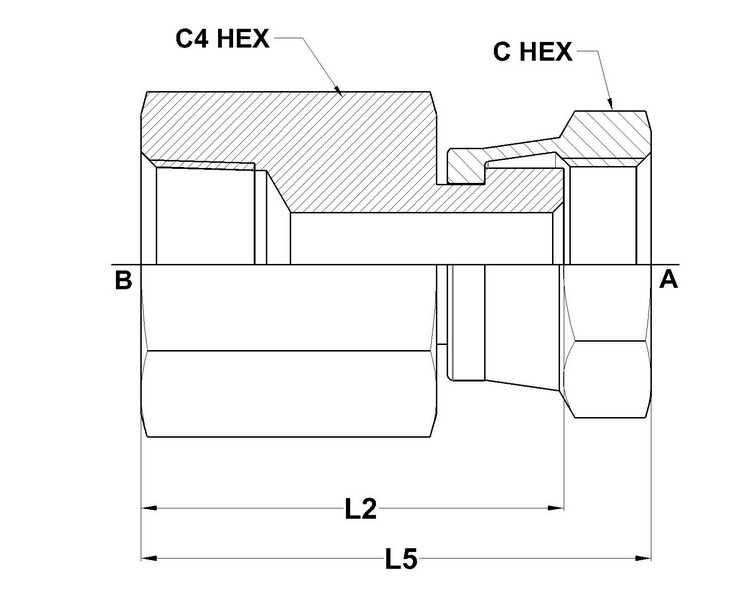

6506 Series
| PART NO.SIZE |
TUBE O.D. |
B NPTF |
A SAE 37 |
A DRILL |
L2 LGTH |
L5 LGTH |
C HEX |
C4 HEX |
| 6506-02-04 |
1/4 |
1/8-27 |
7/16-20 |
0.172 |
0.98 |
1.33 |
0.563 |
0.562 |
| 6506-04-02 |
1/8 |
1/4-18 |
5/16-24 |
0.062 |
1.20 |
1.51 |
0.438 |
0.750 |
| 6506-04-04 |
1/4 |
1/4-18 |
7/16-20 |
0.172 |
1.17 |
1.52 |
0.563 |
0.750 |
| 6506-04-05 |
5/16 |
1/4-18 |
1/2-20 |
0.234 |
1.21 |
1.59 |
0.625 |
0.750 |
| 6506-04-06 |
3/8 |
1/4-18 |
9/16-18 |
0.297 |
1.26 |
1.64 |
0.688 |
0.750 |
| 6506-06-04 |
1/4 |
3/8-18 |
7/16-20 |
0.172 |
1.24 |
1.59 |
0.563 |
0.875 |
| 6506-06-06 |
3/8 |
3/8-18 |
9/16-18 |
0.297 |
1.32 |
1.70 |
0.688 |
0.875 |
| 6506-06-08 |
1/2 |
3/8-18 |
3/4-16 |
0.391 |
1.37 |
1.80 |
0.875 |
0.875 |
| 6506-06-10 |
5/8 |
3/8-18 |
7/8-14 |
0.484 |
1.40 |
1.90 |
1.000 |
0.938 |
| 6506-08-06 |
3/8 |
1/2-14 |
9/16-18 |
0.297 |
1.54 |
1.92 |
0.688 |
1.125 |
| 6506-08-08 |
1/2 |
1/2-14 |
3/4-16 |
0.391 |
1.59 |
2.02 |
0.875 |
1.125 |
| 6506-08-10 |
5/8 |
1/2-14 |
7/8-14 |
0.484 |
1.62 |
2.12 |
1.000 |
1.125 |
| 6506-08-12 |
3/4 |
1/2-14 |
1-1/16-12 |
0.609 |
1.66 |
2.23 |
1.250 |
1.125 |
| 6506-12-10 |
5/8 |
3/4-14 |
7/8-14 |
0.484 |
1.68 |
2.18 |
1.000 |
1.375 |
| 6506-12-12 |
3/4 |
3/4-14 |
1-1/16-12 |
0.609 |
1.72 |
2.29 |
1.250 |
1.375 |
| 6506-12-14 |
7/8 |
3/4-14 |
1-3/16-12 |
0.719 |
1.75 |
2.33 |
1.375 |
1.375 |
| 6506-12-16 |
1 |
3/4-14 |
1-5/16-12 |
0.844 |
1.78 |
2.38 |
1.500 |
1.375 |
| 6506-16-16 |
1 |
1-11-1/2 |
1-5/16-12 |
0.844 |
2.03 |
2.63 |
1.500 |
1.625 |
| 6506-20-20 |
1-1/4 |
1-1/4-11-1/2 |
1-5/8-12 |
1.078 |
2.20 |
2.84 |
2.000 |
2.000 |
| 6506-24-24 |
1-1/2 |
1-1/2-11-1/2 |
1-7/8-12 |
1.312 |
2.27 |
2.99 |
2.250 |
2.375 |
| 6506-32-32 |
2 |
2-11-1/2 |
2-1/2-12 |
1.781 |
2.37 |
3.32 |
2.875 |
2.875 |
