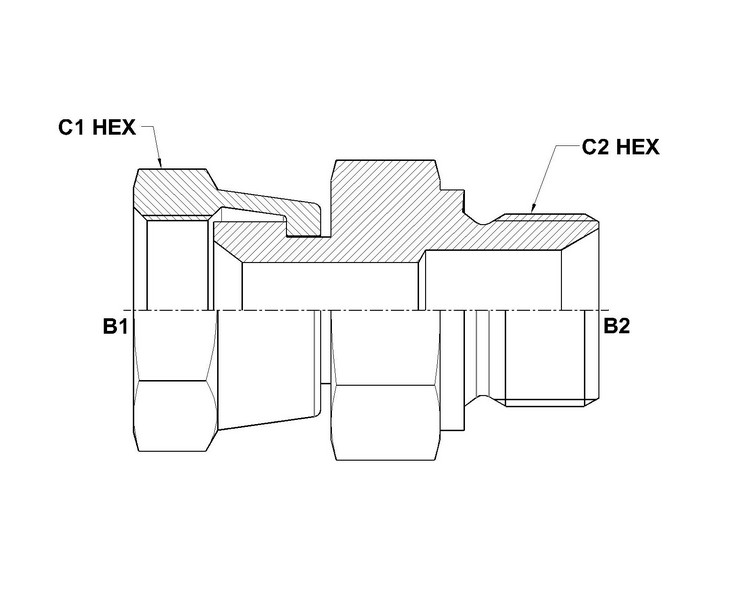

7025 Series
| PART NO.SIZE |
TUBE O.D |
B1 JIC |
B2 MM |
B1 DRILL |
B2 DRILL |
L LGTH |
C1 HEX |
C2 HEX |
| 7025-05-12 |
5/16 |
1/2-20 |
M12 x 1.5 |
6.0 |
6.0 |
37.7 |
17.0 |
19.0 |
| 7025-06-14 |
3/8 |
9/16-18 |
M14 x 1.5 |
7.5 |
7.5 |
38.7 |
19.0 |
19.0 |
| 7025-06-16 |
3/8 |
9/16-18 |
M16 x 1.5 |
7.5 |
9.0 |
40.2 |
19.0 |
22.0 |
| 7025-06-18 |
3/8 |
9/16-18 |
M18 x 1.5 |
7.5 |
11.0 |
40.2 |
19.0 |
24.0 |
| 7025-06-20 |
3/8 |
9/16-18 |
M20 x 1.5 |
7.5 |
12.5 |
40.7 |
19.0 |
27.0 |
| 7025-06-22 |
3/8 |
9/16-18 |
M22 x 1.5 |
7.5 |
14.0 |
43.7 |
19.0 |
27.0 |
| 7025-08-16 |
1/2 |
3/4-16 |
M16 x 1.5 |
9.9 |
9.0 |
42.6 |
22.0 |
22.0 |
| 7025-08-18 |
1/2 |
3/4-16 |
M18 x 1.5 |
9.9 |
11.0 |
42.6 |
22.0 |
24.0 |
| 7025-08-20 |
1/2 |
3/4-16 |
M20 x 1.5 |
9.9 |
12.5 |
43.1 |
22.0 |
27.0 |
| 7025-08-22 |
1/2 |
3/4-16 |
M22 x 1.5 |
9.9 |
14.0 |
46.1 |
22.0 |
27.0 |
| 7025-10-08 |
5/8 |
7/8-14 |
M8 x 1 |
12.3 |
3.0 |
40.8 |
27.0 |
24.0 |
| 7025-10-16 |
5/8 |
7/8-14 |
M16 x 1.5 |
12.3 |
9.0 |
44.8 |
27.0 |
24.0 |
| 7025-10-18 |
5/8 |
7/8-14 |
M18 x 1.5 |
12.3 |
11.0 |
44.8 |
27.0 |
24.0 |
| 7025-10-20 |
5/8 |
7/8-14 |
M20 x 1.5 |
12.3 |
12.5 |
45.9 |
27.0 |
27.0 |
| 7025-10-22 |
5/8 |
7/8-14 |
M22 x 1.5 |
12.3 |
14.0 |
48.9 |
27.0 |
27.0 |
