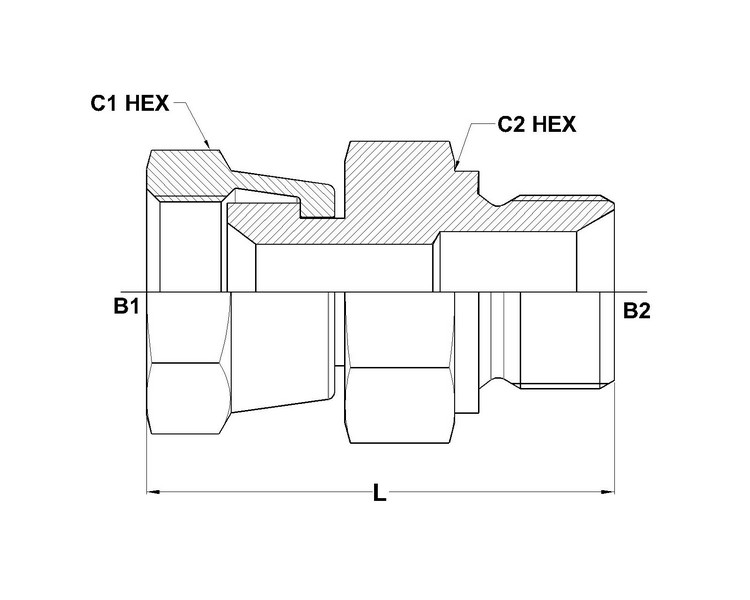

7022 Series
| PART NO.SIZE |
TUBE O.D |
B1 JIC |
B2 BSPP |
B1 DRILL |
B2 DRILL |
L LGTH |
C1 HEX |
C2 HEX |
| 7022-04-02 |
1/4 |
7/16-20 |
1/8-28 |
4.4 |
3.5 |
30.0 |
14.0 |
14.0 |
| 7022-04-04 |
1/4 |
7/16-20 |
1/4-19 |
4.4 |
4.7 |
35.0 |
14.0 |
19.0 |
| 7022-04-06 |
1/4 |
7/16-20 |
3/8-19 |
4.4 |
7.9 |
37.0 |
14.0 |
22.0 |
| 7022-05-04 |
5/16 |
1/2-20 |
1/4-19 |
6.0 |
4.7 |
36.7 |
17.0 |
19.0 |
| 7022-06-04 |
3/8 |
9/16-18 |
1/4-19 |
7.5 |
4.7 |
37.7 |
19.0 |
19.0 |
| 7022-06-06 |
3/8 |
9/16-18 |
3/8-19 |
7.5 |
7.9 |
39.7 |
19.0 |
22.0 |
| 7022-06-08 |
3/8 |
9/16-18 |
1/2-14 |
7.5 |
11.1 |
43.7 |
19.0 |
27.0 |
| 7022-08-06 |
1/2 |
3/4-16 |
3/8-19 |
9.9 |
7.9 |
42.1 |
22.0 |
22.0 |
| 7022-08-08 |
1/2 |
3/4-16 |
1/2-14 |
9.9 |
11.1 |
46.1 |
22.0 |
27.0 |
| 7022-10-08 |
5/8 |
7/8-14 |
1/2-14 |
12.3 |
11.1 |
48.9 |
27.0 |
27.0 |
| 7022-10-10 |
5/8 |
7/8-14 |
5/8-14 |
12.3 |
14.3 |
52.9 |
27.0 |
30.0 |
| 7022-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
15.5 |
16.7 |
55.4 |
32.0 |
32.0 |
| 7022-16-12 |
3/4 |
1-5/16-12 |
3/4-14 |
21.5 |
16.7 |
55.3 |
41.0 |
36.0 |
| 7022-16-16 |
1 |
1-5/16-12 |
1-11 |
21.5 |
22.2 |
63.7 |
41.0 |
41.0 |
| 7022-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11 |
27.5 |
28.6 |
70.1 |
50.0 |
50.0 |
| 7022-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11 |
33.0 |
33.3 |
81.1 |
60.0 |
55.0 |
