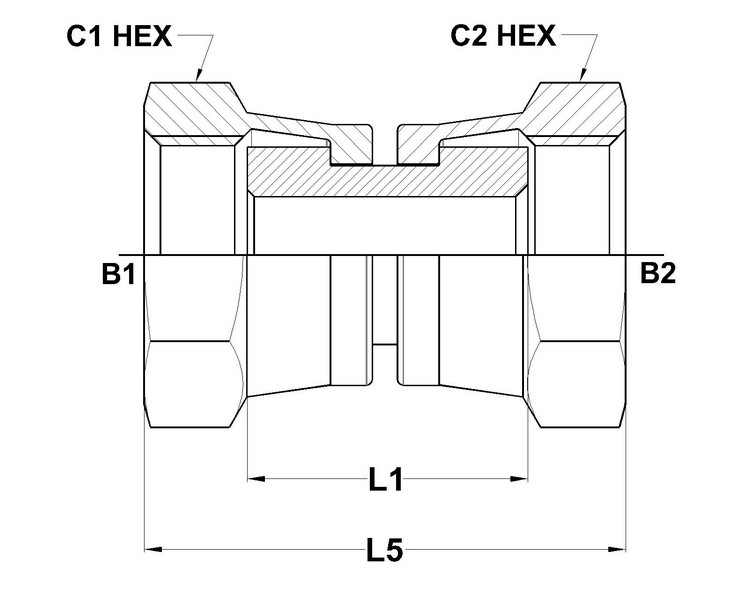

6565 Series
| PART NO.SIZE |
TUBE.O.D. |
B1 SAE 37 |
B2 SAE 37 |
B1 DRILL |
B2 DRILL |
L1 LGTH |
L5 LGTH |
C1 HEX |
C2 HEX |
| 6565-04-04 |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
0.69 |
1.39 |
0.563 |
0.563 |
| 6565-06-06 |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
0.84 |
1.60 |
0.688 |
0.688 |
| 6565-08-08 |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
0.94 |
1.80 |
0.875 |
0.875 |
| 6565-10-10 |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.00 |
2.00 |
1.000 |
1.000 |
| 6565-12-08 |
3/4 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
1.00 |
1.93 |
1.250 |
0.875 |
| 6565-12-12 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.07 |
2.21 |
1.250 |
1.250 |
| 6565-16-16 |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
1.19 |
2.39 |
1.500 |
1.500 |
| 6565-20-20 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
1.28 |
2.56 |
2.000 |
2.000 |
| 6565-24-24 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
1.42 |
2.86 |
2.250 |
2.250 |
