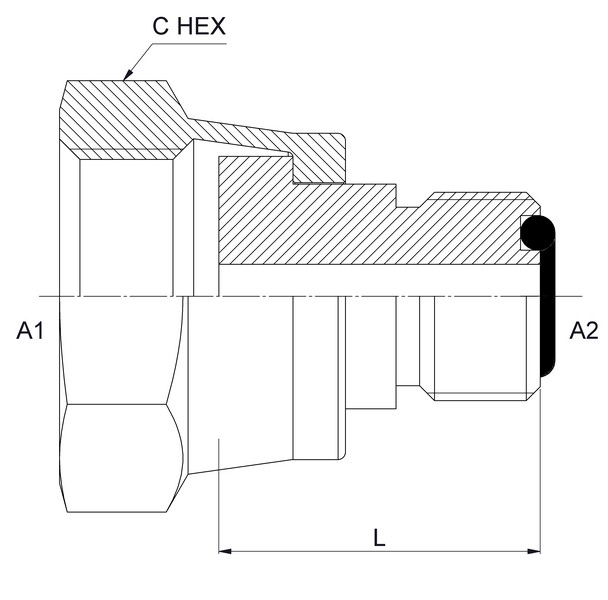

FS2406 Series SAE# 520123
| PART NO.SIZE |
A1 TUBE O.D. |
A2 TUBE O.D. |
A1 THREAD |
A2 THREAD |
A2 DRILL |
L LGTH |
C HEX |
| FS2406-06-04 |
3/8 |
1/4 |
11/16-16 |
9/16-18 |
0.172 |
0.770 |
0.812 |
| FS2406-08-04* |
1/2 |
1/4 |
13/16-16 |
9/16-18 |
0.172 |
0.860 |
0.938 |
| FS2406-08-06 |
1/2 |
3/8 |
13/16-16 |
11/16-16 |
0.264 |
0.880 |
0.938 |
| FS2406-10-04* |
5/8 |
1/4 |
1-14 |
9/16-18 |
0.172 |
0.900 |
1.125 |
| FS2406-10-06* |
5/8 |
3/8 |
1-14 |
11/16-16 |
0.264 |
0.950 |
1.125 |
| FS2406-10-08* |
5/8 |
1/2 |
1-14 |
13/16-16 |
0.378 |
1.010 |
1.125 |
| FS2406-12-04* |
3/4 |
1/4 |
1-3/16-12 |
9/16-18 |
0.172 |
0.980 |
1.375 |
| FS2406-12-06* |
3/4 |
3/8 |
1-3/16-12 |
11/16-16 |
0.264 |
1.030 |
1.375 |
| FS2406-12-08* |
3/4 |
1/2 |
1-3/16-12 |
13/16-16 |
0.378 |
1.090 |
1.375 |
| FS2406-12-10 |
3/4 |
5/8 |
1-3/16-12 |
1-14 |
0.484 |
1.160 |
1.375 |
| FS2406-12-16 |
3/4 |
1 |
1-3/16-12 |
1-7/16-12 |
0.609 |
1.240 |
1.375 |
| FS2406-16-08* |
1 |
1/2 |
1-7/16-12 |
13/16-16 |
0.378 |
1.150 |
1.625 |
| FS2406-16-10* |
1 |
5/8 |
1-7/16-12 |
1-14 |
0.484 |
1.260 |
1.625 |
| FS2406-16-12 |
1 |
3/4 |
1-7/16-12 |
1-3/16-12 |
0.609 |
1.300 |
1.625 |
| FS2406-16-20 |
1 |
1-1/4 |
1-7/16-12 |
1-11/16-12 |
0.811 |
1.320 |
1.625 |
| FS2406-20-12* |
1-1/4 |
3/4 |
1-11/16-12 |
1-3/16-12 |
0.609 |
1.320 |
1.875 |
| FS2406-20-16 |
1-1/4 |
1 |
1-11/16-12 |
1-7/16-12 |
0.811 |
1.514 |
1.875 |
| FS2406-20-24 |
1-1/4 |
1-1/2 |
1-11/16-12 |
2-12 |
1.260 |
1.514 |
1.875 |
| FS2406-24-16* |
1-1/2 |
1 |
2-12 |
1-7/16-12 |
0.811 |
1.340 |
2.250 |
| FS2406-24-20* |
1-1/2 |
1-1/4 |
2-12 |
1-11/16-12 |
1.024 |
1.340 |
2.250 |
