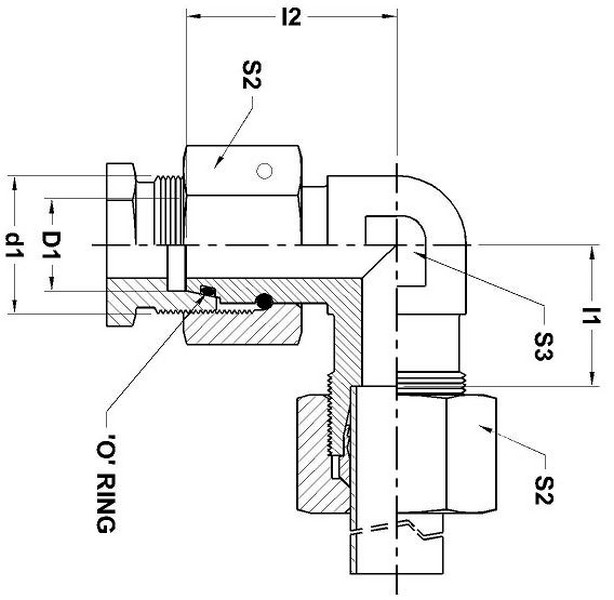

EW - ADJUSTABLE ELBOW WITH SWIVEL NUT
Home
Products
EW - ADJUSTABLE ELBOW WITH SWIVEL NUT
Enquiry
Download PDF
EW
Show
10
25
50
100
entries
Search:
Part No.
Series
Tube OD D1
d1
l1
l2
S2
S3
O' Ring
Part No.
Series
Tube OD D1
d1
l1
l2
S2
S3
O' Ring
EW 06-L
Light-250 Bar
6
M12 X 15
12
26
14
12
4 X 1.5
EW 06-S
Heavy-630 Bar
6
M14 X 1.5
16
27
17
12
4 X 1.5
EW 08-L
Light-250 Bar
8
M14 X 1.5
14
27.5
17
12
6 X 1.5
EW 08-S
Heavy-630 Bar
8
M16 X 1.5
17
27.5
19
14
6 X 1.5
EW 10-L
Light-250 Bar
10
M16 X 1.5
15
29
19
14
7.5 X 1.5
EW 10-S
Heavy-630 Bar
10
M18 X 1.5
17.5
30
22
17
7.5 X 1.5
EW 12-L
Light-250 Bar
12
M18 X 1.5
17
29.5
22
17
9 X 1.5
EW 12-S
Heavy-630 Bar
12
M20 X 1.5
21.5
31
24
17
9 X 1.5
EW 14-S
Heavy-630 Bar
14
M22 X 1.5
22
35
27
19
10 X 2
EW 15-L
Light-250 Bar
15
M22 X 1.5
21
32.5
27
19
12 X 2
Showing 1 to 10 of 20 entries
Previous
1
2
Next
Dimensions given approx. fig. with tightened nut
Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, for FPM
(Viton - On request) -25° to +120° C.
Enquiry for
EW - ADJUSTABLE ELBOW WITH SWIVEL NUT
×
