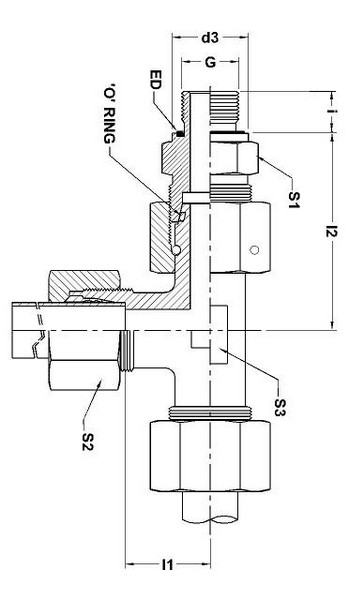

EL -R/M ADJUSTABLE BARREL TEE WITH SWIVEL NUT

Metric Bite Type Fittings
EL R<br/>EL M

EL -R/M ADJUSTABLE BARREL TEE WITH SWIVEL NUT

Enquiry
Download PDF
EL R
EL M Male Thread: BSP / METRIC
R - Part No. M - Part No. Series Tube OD BSP Thread G Metric Thread G l1 l2 S1 S2 S3
EL 06-LR-ED EL 06-LM-ED Light-250 Bar 6 1/8 M10 X 1 12 34.5 14 14 12
EL 08-LR-ED EL 08-LM-ED Light-250 Bar 8 1/4 M12 X 1.5 14 37.5 19 17 12
EL 10-LR-ED EL 10-LM-ED Light-250 Bar 10 1/4 M14 X 1.5 15 40 19 19 14
EL 12-LR-ED EL 12-LM-ED Light-250 Bar 12 3/8 M16 X 1.5 17 42 22 22 17
EL 15-LR-ED EL 15-LM-ED Light-250 Bar 15 1/2 M18 X 1.5 21 46.5 27 27 19
EL 18-LR-ED EL 18-LM-ED Light-160 Bar 18 1/2 M22 X 1.5 23.5 50 27 32 24
EL 22-LR-ED EL 22-LM-ED Light-160 Bar 22 3/4 M26 X 1.5 27.5 55 32 36 27
EL 28-LR-ED EL 28-LM-ED Light-100 Bar 28 1 M33 X 2.0 30.5 59 41 41 36
EL 35-LR-ED EL 35-LM-ED Light-100 Bar 35 11/4 M42 X 2.0 34.5 68.5 50 50 41
EL 42-LR-ED EL 42-LM-ED Light-100 Bar 42 11/2 M48 X 2.0 40 75 55 60 50
EL 06-SR-ED EL 06-SM-ED Heavy-630 Bar 6 1/4 M12 X 1.5 16 40 19 17 12
EL 08-SR-ED EL 08-SM-ED Heavy-630 Bar 8 1/4 M14 X 1.5 17 42.5 19 19 14
EL 10-SR-ED EL 10-SM-ED Heavy-630 Bar 10 3/8 M16 X 1.5 17.5 45 22 22 17
EL 12-SR-ED EL 12-SM-ED Heavy-630 Bar 12 3/8 M18 X 1.5 21.5 48 22 24 17
EL 14-SR-ED EL 14-SM-ED Heavy-630 Bar 14 1/2 M20 X 1.5 22 54 27 27 19
EL 16-SR-ED EL 16-SM-ED Heavy-400 Bar 16 1/2 M22 X 1.5 24.5 55 27 30 24
EL 20-SR-ED EL 20-SM-ED Heavy-400 Bar 20 3/4 M27 X 2.0 26.5 65 32 36 27
EL 25-SR-ED EL 25-SM-ED Heavy-400 Bar 25 1 M33 X 2.0 30 73 41 46 36
EL 30-SR-ED EL 30-SM-ED Heavy-250 Bar 30 11/4 M42 X 2.0 35.5 78.5 50 50 41
EL 38-SR-ED EL 38-SM-ED Heavy-250 Bar 38 11/2 M48 X 2.0 41 89 55 60 50
Dimensions given approx.,
fig. with tightened nut
Temp range without pressure reductions
for 'O' Ring sealing of NBR
(buna N- Std) -35° to +100° C, for FPM
(Viton - On request) -25° to +120° C.
