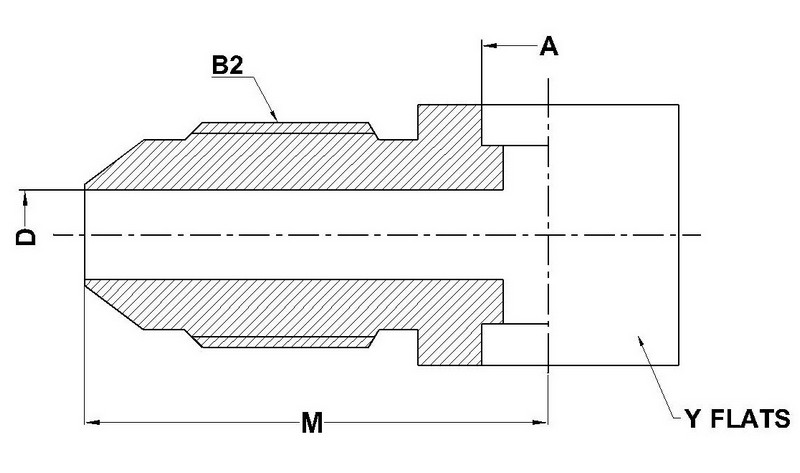

0600 Series
| PART NO. SIZE |
TUBE O.D. |
A BORE |
B2 JIC |
D DRILL |
M LGTH |
Y FLATS |
| 0600-04-04-04 |
1/4 |
0.256 |
7/16-20 |
0.172 |
0.890 |
0.500 |
| 0600-05-05-05 |
5/16 |
0.319 |
1/2-20 |
0.234 |
0.953 |
0.562 |
| 0600-06-06-06 |
3/8 |
0.381 |
9/16-18 |
0.297 |
1.062 |
0.625 |
| 0600-08-08-08 |
1/2 |
0.506 |
3/4-16 |
0.391 |
1.250 |
0.812 |
| 0600-10-10-10 |
5/8 |
0.631 |
7/8-14 |
0.484 |
1.453 |
0.937 |
| 0600-12-12-12 |
3/4 |
0.757 |
1-1/16-12 |
0.609 |
1.656 |
1.125 |
| 0600-14-14-14 |
7/8 |
0.882 |
1-3/16-12 |
0.719 |
1.734 |
1.250 |
| 0600-16-16-16 |
1 |
1.007 |
1-5/16-12 |
0.844 |
1.812 |
1.375 |
| 0600-20-20-20 |
1-1/4 |
1.258 |
1-5/8-12 |
1.078 |
2.062 |
1.750 |
| 0600-24-24-24 |
1-1/2 |
1.508 |
1-7/8-12 |
1.312 |
2.328 |
2.000 |
