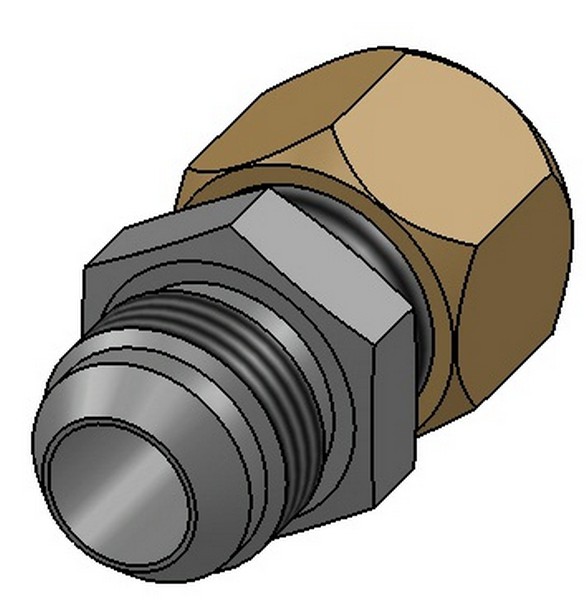

C2402 Series

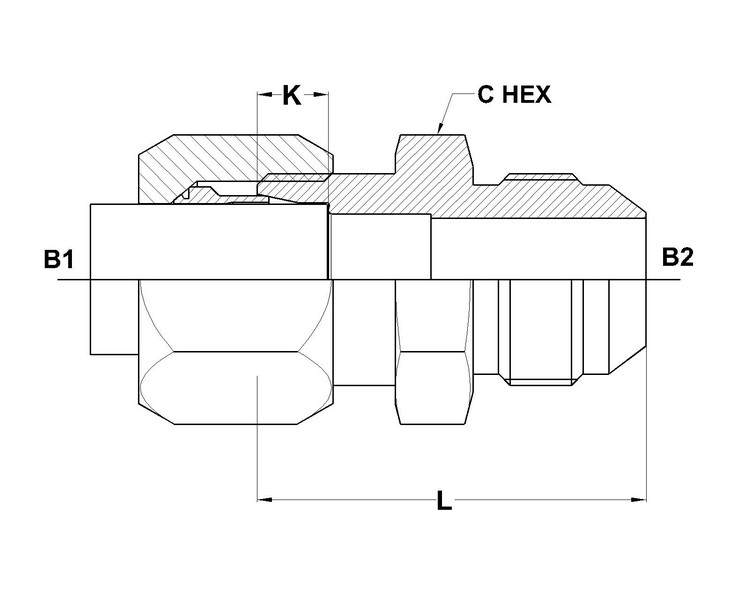

| PART NO.SIZE |
TUBE O.D |
B1 THREAD |
B2 THREAD |
B1 DRILL |
B2 DRILL |
L LGTH |
K DEPTH |
C HEX |
| C2402-04-04 |
1/4 |
7/16-20 |
7/16-20 |
0.203 |
0.172 |
1.23 |
0.234 |
0.500 |
| C2402-06-06 |
3/8 |
9/16-18 |
9/16-18 |
0.281 |
0.297 |
1.28 |
0.250 |
0.625 |
| C2402-08-08 |
1/2 |
3/4-16 |
3/4-16 |
0.422 |
0.391 |
1.47 |
0.305 |
0.812 |
| C2402-08-12 |
1/2 |
3/4-16 |
1-1/16-12 |
0.422 |
0.609 |
1.68 |
0.305 |
1.125 |
| C2402-12-12 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.656 |
0.609 |
1.94 |
0.350 |
1.125 |
| C2402-16-16 |
1 |
1-5/16-12 |
1-5/16-12 |
0.875 |
0.844 |
1.98 |
0.415 |
1.375 |
| C2402-20-20 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.093 |
1.078 |
2.11 |
0.415 |
1.688 |
