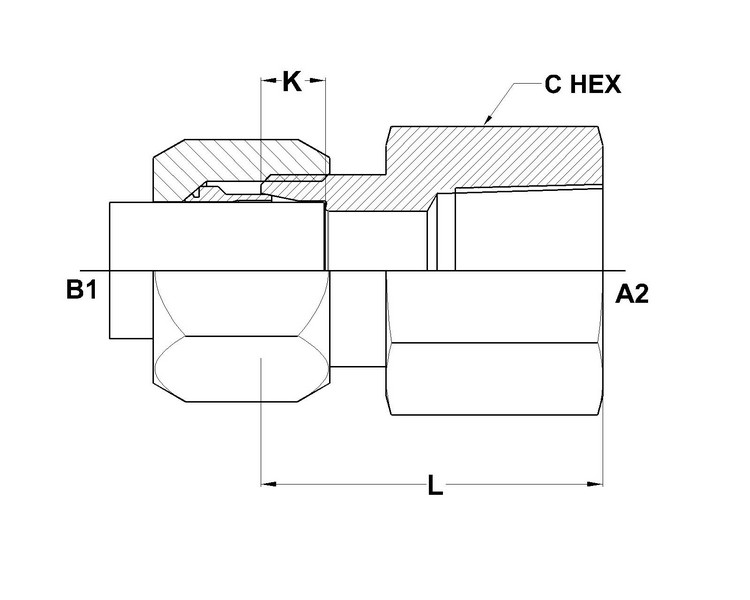

C2405 Series SAE# 080103
| PART NO. SIZE |
TUBE O.D. |
B1 THREAD |
A2 NPTF |
B1 DRILL |
L LGTH |
K DEPTH |
C HEX |
| C2405-02-02 |
1/8 |
5/16-24 |
1/8-27 |
0.093 |
1.05 |
0.188 |
0.562 |
| C2405-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.203 |
1.09 |
0.234 |
0.562 |
| C2405-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.203 |
1.30 |
0.234 |
0.750 |
| C2405-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
1.08 |
0.250 |
0.562 |
| C2405-05-04 |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
1.30 |
0.250 |
0.750 |
| C2405-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.281 |
1.31 |
0.250 |
0.750 |
| C2405-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.281 |
1.36 |
0.250 |
0.875 |
| C2405-06-08 |
3/8 |
9/16-18 |
1/2-14 |
0.281 |
1.53 |
0.250 |
1.125 |
| C2405-08-04 |
1/2 |
3/4-16 |
1/4-18 |
0.422 |
1.46 |
0.305 |
0.875 |
| C2405-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.422 |
1.47 |
0.305 |
0.875 |
| C2405-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.422 |
1.64 |
0.305 |
1.125 |
| C2405-10-06 |
5/8 |
7/8-14 |
3/8-18 |
0.500 |
1.54 |
0.350 |
1.125 |
| C2405-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.500 |
1.76 |
0.350 |
1.125 |
| C2405-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.656 |
1.89 |
0.350 |
1.375 |
| C2405-14-12 |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
1.86 |
0.350 |
1.375 |
| C2405-16-16 |
1 |
1-5/16-12 |
1-11-1/2 |
0.875 |
2.13 |
0.415 |
1.625 |
| C2405-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11-1/2 |
1.093 |
2.22 |
0.415 |
2.000 |
| C2405-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11-1/2 |
1.344 |
2.23 |
0.485 |
2.375 |
