C2601 Series SAE# 080425 / MS#51818

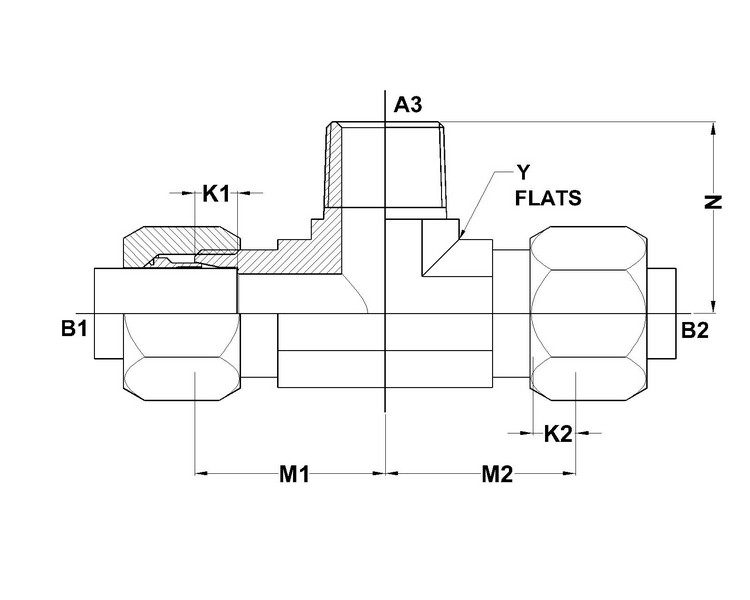

| PART NO. SIZE |
TUBE O.D. |
B1 THREAD |
B2 THREAD |
A3 NPTF |
B1 DRILL |
B2 DRILL |
A3 DRILL |
M1 LGTH |
M2 LGTH |
N LGTH |
K1 DEPTH |
K2 DEPTH |
Y FLATS |
| C2601-02-02-02-FG |
1/8 |
5/16-24 |
5/16-24 |
1/8-27 |
0.093 |
0.093 |
0.188 |
0.77 |
0.77 |
0.72 |
0.188 |
0.188 |
0.438 |
| C2601-04-04-02-FG |
1/4 |
7/16-20 |
7/16-20 |
1/8-27 |
0.203 |
0.203 |
0.188 |
0.89 |
0.89 |
0.78 |
0.234 |
0.234 |
0.438 |
| C2601-04-04-04-FG |
1/4 |
7/16-20 |
7/16-20 |
1/4-18 |
0.203 |
0.203 |
0.281 |
1.03 |
1.03 |
1.09 |
0.234 |
0.234 |
0.562 |
| C2601-05-05-02-FG |
5/16 |
1/2-20 |
1/2-20 |
1/8-27 |
0.234 |
0.234 |
0.188 |
0.95 |
0.95 |
0.81 |
0.250 |
0.250 |
0.562 |
| C2601-06-06-04-FG |
3/8 |
9/16-18 |
9/16-18 |
1/4-18 |
0.281 |
0.281 |
0.281 |
1.05 |
1.05 |
1.09 |
0.250 |
0.250 |
0.562 |
| C2601-06-06-06-FG |
3/8 |
9/16-18 |
9/16-18 |
3/8-18 |
0.281 |
0.281 |
0.406 |
1.14 |
1.14 |
1.22 |
0.250 |
0.250 |
0.750 |
| C2601-08-08-06-FG |
1/2 |
3/4-16 |
3/4-16 |
3/8-18 |
0.422 |
0.422 |
0.406 |
1.25 |
1.25 |
1.22 |
0.305 |
0.305 |
0.750 |
| C2601-08-08-08-FG |
1/2 |
3/4-16 |
3/4-16 |
1/2-14 |
0.422 |
0.422 |
0.531 |
1.35 |
1.35 |
1.47 |
0.305 |
0.305 |
0.875 |
| C2601-10-10-08-FG |
5/8 |
7/8-14 |
7/8-14 |
1/2-14 |
0.500 |
0.500 |
0.531 |
1.42 |
1.42 |
1.47 |
0.350 |
0.350 |
0.875 |
| C2601-12-12-12-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
3/4-14 |
0.656 |
0.656 |
0.719 |
1.58 |
1.58 |
1.59 |
0.350 |
0.350 |
1.062 |
| C2601-16-16-16-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-11 1/2 |
0.875 |
0.875 |
0.938 |
1.73 |
1.73 |
1.97 |
0.415 |
0.415 |
1.312 |
