| Part No. | Series | Tube OD | G | i | l2 | l3 | L3 | S1 | S2 | S3 | h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WH 06-LR | Light-250 Bar | 6 | 1/8 | 8 | 12 | 10.5 | 24 | 17 | 14 | 17 | 2.5 |
| WH 08-LR | Light-250 Bar | 8 | 1/4 | 12 | 14.5 | 14 | 30 | 19 | 17 | 22 | 3 |
| WH 10-LR | Light-250 Bar | 10 | 1/4 | 12 | 15.5 | 14 | 30 | 19 | 19 | 22 | 3 |
| WH 12-LR | Light-250 Bar | 12 | 3/8 | 12 | 18 | 16.5 | 36 | 24 | 22 | 27 | 3 |
| WH 15-LR | Light-250 Bar | 15 | 1/2 | 14 | 21.5 | 21.5 | 45 | 30 | 27 | 32 | 4.5 |
| WH 18-LR | Light-160 Bar | 18 | 1/2 | 14 | 21 | 21.5 | 45 | 30 | 32 | 32 | 4.5 |
| WH 22-LR | Light-160 Bar | 22 | 3/4 | 16 | 27.5 | 24 | 53 | 36 | 36 | 41 | 3.5 |
| WH 28-LR | Light-100 Bar | 28 | 1 | 18 | 32 | 30.5 | 66 | 46 | 41 | 50 | 3.5 |
| WH 35-LR | Light-100 Bar | 35 | 11/4 | 20 | 36 | 35.5 | 76 | 55 | 50 | 60 | 3.5 |
| WH 42-LR | Light-100 Bar | 42 | 11/2 | 22 | 40.5 | 40.5 | 87 | 60 | 60 | 70 | 3.5 |
| WH 06-SR | Heavy-630 Bar | 6 | 1/4 | 12 | 16.5 | 14 | 30 | 19 | 17 | 22 | 3 |
| WH 08-SR | Heavy-630 Bar | 8 | 1/4 | 12 | 16.5 | 14 | 30 | 19 | 19 | 22 | 3 |
| WH 10-SR | Heavy-630 Bar | 10 | 3/8 | 12 | 18.5 | 16.5 | 36 | 24 | 22 | 27 | 3 |
| WH 12-SR | Heavy-630 Bar | 12 | 3/8 | 12 | 18.5 | 16.5 | 36 | 24 | 24 | 27 | 3 |
| WH 14-SR | Heavy-630 Bar | 14 | 1/2 | 14 | 22.5 | 21.5 | 45 | 30 | 27 | 32 | 4.5 |
| WH 16-SR | Heavy-400 Bar | 16 | 1/2 | 14 | 22 | 21.5 | 45 | 30 | 30 | 32 | 4.5 |
| WH 20-SR | Heavy-400 Bar | 20 | 3/4 | 16 | 26.5 | 24 | 53 | 36 | 36 | 41 | 3.5 |
| WH 25-SR | Heavy-400 Bar | 25 | 1 | 18 | 31.5 | 30.5 | 66 | 46 | 46 | 50 | 3.5 |
| WH 30-SR | Heavy-250 Bar | 30 | 11/4 | 20 | 37 | 35.5 | 76 | 55 | 50 | 60 | 3.5 |
| WH 38-SR | Heavy-250 Bar | 38 | 11/2 | 22 | 41.5 | 40.5 | 87 | 60 | 60 | 70 | 3.5 |

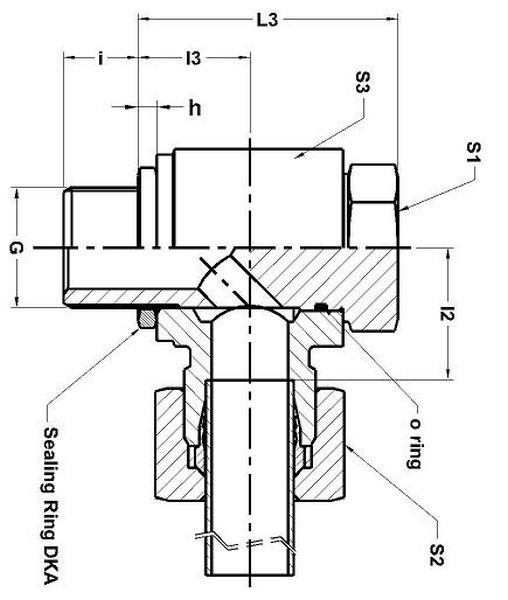

| Dimensions given approx.. fig. with tightened nut |
