| Part No. | Series | Tube OD | D1 | L1 | L2 | S1 | S2 | G |
|---|---|---|---|---|---|---|---|---|
| SP 06-LR | Light-250 Bar | 6 | M12 X 15 | 26.5 | 8 | 14 | 14 | 1/8 |
| SP 08-LR | Light-250 Bar | 8 | M14 X 1.5 | 28.5 | 12 | 19 | 17 | 1/4 |
| SP 10-LR | Light-250 Bar | 10 | M16 X 1.5 | 28.5 | 12 | 19 | 19 | 1/4 |
| SP 12-LR | Light-250 Bar | 12 | M18 X 1.5 | 31 | 12 | 22 | 22 | 3/8 |
| SP 15-LR | Light-250 Bar | 15 | M22 X 1.5 | 32.5 | 14 | 27 | 27 | 1/2 |
| SP 18-LR | Light-160 Bar | 18 | M26 X 1.5 | 32.5 | 14 | 27 | 32 | 1/2 |
| SP 22-LR | Light-160 Bar | 22 | M30 X 2.0 | 34 | 16 | 32 | 36 | 3/4 |
| SP 28-LR | Light-100 Bar | 28 | M36 X 2.0 | 36.5 | 18 | 41 | 41 | 1 |
| SP 35-LR | Light-100 Bar | 35 | M45 X 2.0 | 43.5 | 20 | 50 | 50 | 11/4 |
| SP 42-LR | Light-100 Bar | 42 | M52 X 2.0 | 46.5 | 22 | 55 | 60 | 11/2 |
| SP 06-SR | Heavy-630 Bar | 6 | M14 X 1.5 | 28 | 12 | 19 | 17 | 1/4 |
| SP 08-SR | Heavy-630 Bar | 8 | M16 X 1.5 | 28.5 | 12 | 19 | 19 | 1/4 |
| SP 10-SR | Heavy-630 Bar | 10 | M18 X 1.5 | 32.5 | 12 | 22 | 22 | 3/8 |
| SP 12-SR | Heavy-630 Bar | 12 | M20 X 1.5 | 32 | 12 | 22 | 24 | 3/8 |
| SP 14-SR | Heavy-630 Bar | 14 | M22 X 1.5 | 35 | 14 | 27 | 27 | 1/2 |
| SP 16-SR | Heavy-400 Bar | 16 | M24 X 1.5 | 35.5 | 14 | 27 | 30 | 1/2 |
| SP 20-SR | Heavy-400 Bar | 20 | M30 X 2.0 | 39.5 | 16 | 32 | 36 | 3/4 |
| SP 25-SR | Heavy-400 Bar | 25 | M36 X 2.0 | 43.5 | 18 | 41 | 46 | 1 |
| SP 30-SR | Heavy-250 Bar | 30 | M42 X 2.0 | 45.5 | 20 | 50 | 50 | 11/4 |
| SP 38-SR | Heavy-250 Bar | 38 | M52 X 2.0 | 54 | 22 | 55 | 60 | 11/2 |

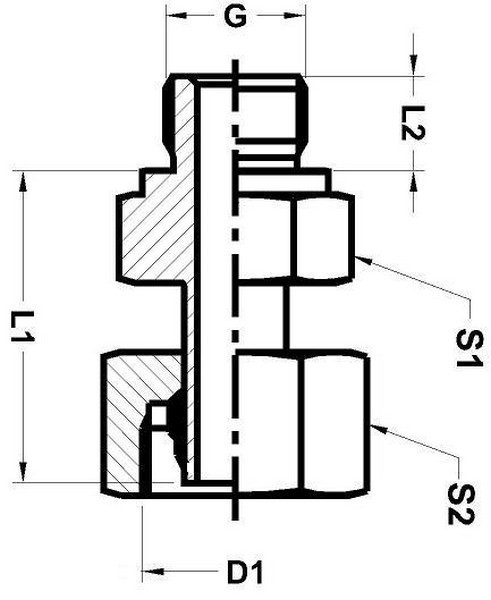

| Dimensions given approx. fig. with tightened nut |
