SHVG DESCRIPTION
SHUTT OFF VALVE MODEL SHV,IS TWO WAY,SEAT TYPE VALVES.
THESE ARE USED FOR ISOLATING THE OIL FLOW IN THE DIRECTION AS
INDICATED BY AN ARROW MARK SHOWN ON THE VALVE BODY.

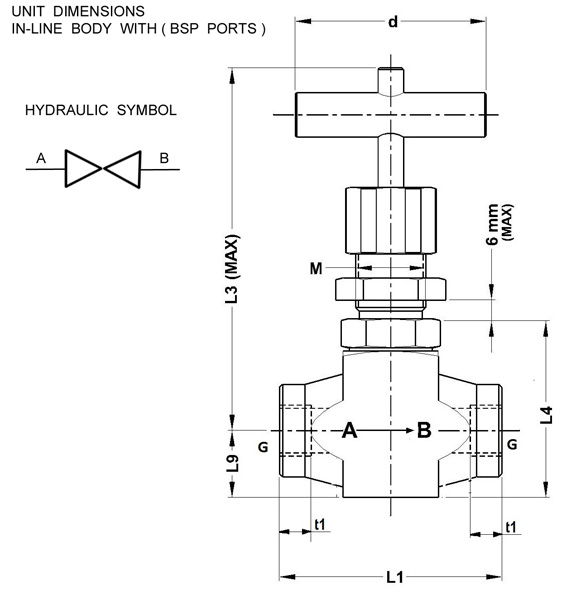

| MODEL CODE IN-LINE |
G |
L1 |
L3 |
L4 |
L9 |
d |
t1 |
S |
M |
| SHVG02-2.0 |
G 1/4 |
70 |
110.5 |
54.5 |
21.0 |
64 |
14 |
30 |
M22X1.5 |
| SHVG03-2.0 |
G 3/8 |
70 |
110.5 |
54.5 |
21.0 |
64 |
14 |
30 |
M22X1.5 |
| SHVG04-2.0 |
G 1/2 |
77 |
110.5 |
54.5 |
21.0 |
64 |
17 |
30 |
M22X1.5 |
| SHVG06-2.0 |
G 3/4 |
93 |
122.0 |
71.0 |
27.0 |
84 |
17 |
36 |
M26X1.5 |
| SHVG08-2.0 |
G 1 |
93 |
122.0 |
72.0 |
27.0 |
84 |
18 |
46 |
M26X1.5 |
| SHVG10-2.0 |
G 1-1/4 |
162 |
162.0 |
105.0 |
51.5 |
120 |
22 |
60 |
M42X2.0 |
| SHVG12-2.0 |
G 1-1/2 |
162 |
162.0 |
105.0 |
51.5 |
120 |
24 |
60 |
M42X2.0 |
