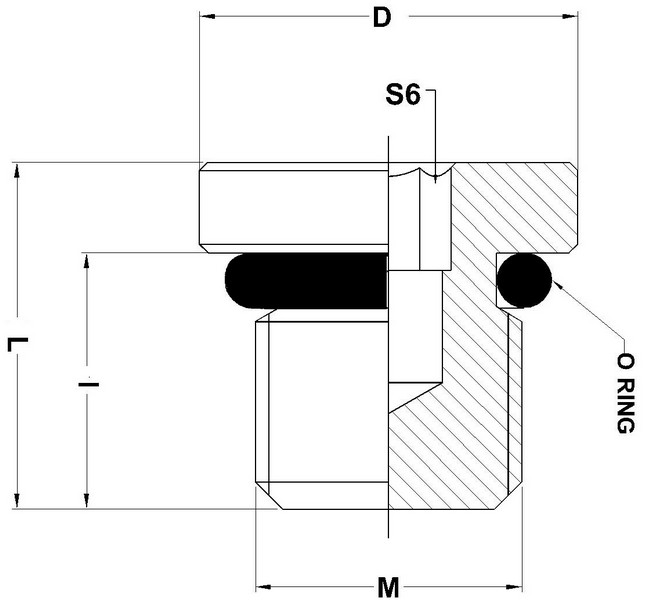

| Part No. | M | D | L | i | S6 |
|---|---|---|---|---|---|
| SHP M10 OR | M10 X 1.0 | 13 | 14 | 10 | 5 |
| SHP M12 OR | M12 X 1.5 | 17 | 16.5 | 11.5 | 6 |
| SHP M14 OR | M14 X 1.5 | 19 | 16.5 | 11.5 | 6 |
| SHP M16 OR | M16 X 1.5 | 21 | 18 | 13 | 8 |
| SHP M18 OR | M18 X 1.5 | 23 | 19.5 | 14.5 | 8 |
| SHP M22 OR | M22 X 1.5 | 27 | 20.5 | 15.5 | 10 |
| SHP M26 OR | M26 X 1.5 | 31 | 21 | 16 | 12 |
| SHP M27 OR | M27 X 2.0 | 32 | 24 | 19 | 12 |
| SHP M33 OR | M33 X 2.0 | 38 | 25.5 | 19 | 17 |
| SHP M42 OR | M42 X 2.0 | 48 | 26 | 19.5 | 22 |
| Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, FOR FPM (Viton - ON request) -25° TO +120° C. |
