RHV-M-ED

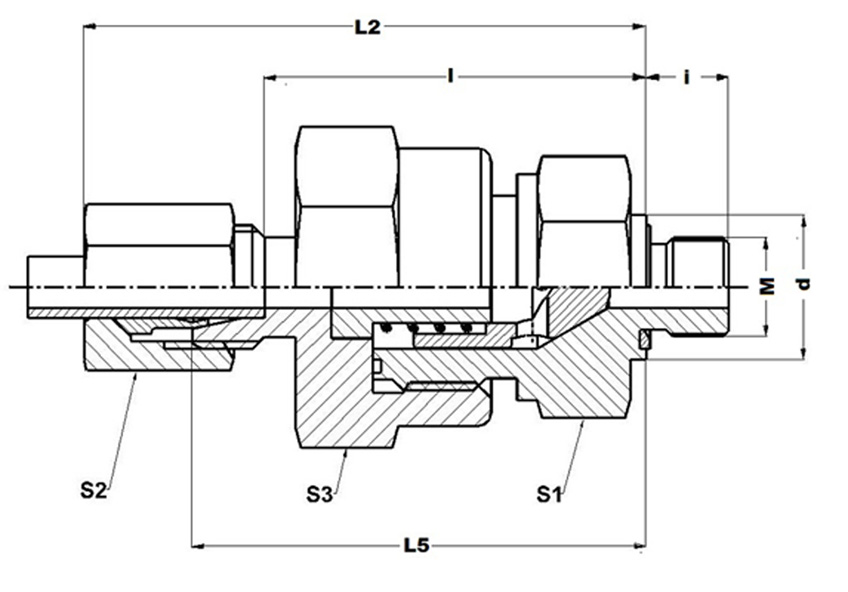

| Type Designation |
SERIES |
PN bar(psi) |
Tube OD |
G |
kg per 100St. Kg per 100pcs. Kg par 100p. |
d |
L2 |
L5 |
l |
i |
S1 |
S2 |
S3 |
Øentspr. Durchla beta Øoutlet Øde passage correspondant |
| RHV 6 LM-ED |
L |
400(5801) |
6 |
M10X1 |
12.0 |
13.9 |
50.5 |
43 |
36 |
8 |
22 |
14 |
27 |
4.0 |
| RHV 8 LM-ED |
L |
400(5801) |
8 |
M12X1.5 |
12.1 |
16.9 |
50.5 |
43 |
36 |
12 |
22 |
17 |
27 |
6.0 |
| RHV 10 LM-ED |
L |
400(5801) |
10 |
M14X1.5 |
11.0 |
18.9 |
48.5 |
41 |
34 |
12 |
22 |
19 |
27 |
7.0 |
| RHV 12 LM-ED |
L |
400(5801) |
12 |
M16X1.5 |
14.0 |
21.9 |
53.5 |
46 |
39 |
12 |
22 |
22 |
27 |
7.5 |
| RHV 15 LM-ED |
L |
400(5801) |
15 |
M18X1.5 |
18.0 |
23.9 |
56.0 |
48 |
41 |
12 |
27 |
27 |
32 |
11.0 |
| RHV 18 LM-ED |
L |
400(5801) |
18 |
M22X1.5 |
23.0 |
29.9 |
61.5 |
53 |
45.5 |
14 |
27 |
32 |
32 |
11.0 |
| RHV 22 M-ED |
L |
250(3626) |
22 |
M26X1.5 |
47.0 |
31.9 |
69.5 |
61 |
53.5 |
16 |
41 |
36 |
46 |
18.0 |
| RHV 28 LM-ED |
L |
250(3626) |
28 |
M33X2 |
52.5 |
39.9 |
77.0 |
68 |
60.5 |
18 |
41 |
41 |
46 |
18.5 |
| RHV 35 LM-ED |
L |
250(3626) |
35 |
M42X2 |
132.0 |
49.9 |
88.5 |
77.5 |
67 |
20 |
60 |
50 |
70 |
29.0 |
| RHV 42 LM-ED |
L |
250(3626) |
42 |
M48X2 |
140.0 |
54.9 |
87.5 |
75.5 |
64.5 |
22 |
60 |
60 |
70 |
29.0 |
| RHV 6 SM-ED |
S |
400(5801) |
6 |
M12X1.5 |
13.0 |
16.9 |
52.5 |
45 |
38 |
12 |
22 |
17 |
27 |
4.0 |
| RHV 8 SM-ED |
S |
400(5801) |
8 |
M14X1.5 |
11.9 |
18.9 |
50.5 |
43 |
36 |
12 |
22 |
19 |
27 |
5.0 |
| RHV 10 SM-ED |
S |
400(5801) |
10 |
M16X1.5 |
13.5 |
21.9 |
53.5 |
45 |
37.5 |
12 |
22 |
22 |
27 |
7.0 |
| RHV 12 SM-ED |
S |
400(5801) |
12 |
M18X1.5 |
15.5 |
23.9 |
55.5 |
47 |
39.5 |
12 |
24 |
24 |
27 |
7.5 |
| RHV 14 SM-ED |
S |
400(5801) |
14 |
M20X1.5 |
19.5 |
25.9 |
59.5 |
50 |
42 |
14 |
27 |
27 |
32 |
10.0 |
| RHV 16 SM-ED |
S |
400(5801) |
16 |
M22X2 |
23.0 |
26.9 |
62.5 |
53 |
44.5 |
14 |
27 |
30 |
32 |
11.0 |
| RHV 20 SM-ED |
S |
400(5801) |
20 |
M27X2 |
47.0 |
31.9 |
74.0 |
63 |
52.5 |
16 |
41 |
36 |
46 |
16.0 |
| RHV 25 SM-ED |
S |
250 (3626) |
25 |
M33X2 |
54.0 |
39.9 |
77.0 |
65 |
53 |
18 |
41 |
46 |
46 |
18.5 |
| RHV 30 SM-ED |
S |
|
30 |
M42X2 |
86.0 |
49.9 |
87.0 |
74 |
60.5 |
20 |
50 |
50 |
55 |
24.0 |
| RHV 38 SM-ED |
S |
|
38 |
M48X2 |
143.5 |
54.9 |
96.0 |
81.5 |
65.5 |
22 |
60 |
60 |
70 |
29.0 |
